挿入ﾍｯﾄﾞ部 (ｶﾊﾞｰ部) INSERT ION HEAD SECT. (COVER SECT. ) 7 FN610130988AA_01 M127

100%1 / 632
PART No.
ｲﾗｽﾄ
No.
REF
No.
   
PART NAME
REMARKSQ'TY
7
挿入ﾍｯﾄﾞ部(ﾊﾟﾚｯﾄ開閉部2)
INSERTION HEAD SECT.(PALLET OPEN & SHUT SECT.-2)
部 品 名品  番 個数 備 考
R
2
R
3
R
1
1
004 X02G46102
BEARING RETAINER
1006 X01A46004
LEVER
1007 X01A4600601
LEVER
1
008 X01A46007
SHAFT
1009 X01A46008
CLAMP
1015 X01A46024
COLLAR
1
017 X01A4602501
LEVER
1
018 N210087084AB
PIN
1019 N210197351AA
WASHER
WWASBH15-5
1
N002
N510030267AA
WASHER
M5
1
N003
N510020100AA
WASHER
NOS4TL
1
N008
N533N0S4TL
ROD END
N0S4T
1
N010
N533N0S4T
ROD END
605ZZ
2
N013
N510003188AA
BALL BEARING
6901ZZ
2
N014
XLC6901ZZ
BALL BEARING
M3X6-12.9 SCHP
5
N017
N510004004AA
HEX. SOCKET BUTTON HEAD BOL
87LBMBF4-134
1
N018
N510024845AA
ROD
M4,1-TYPE,STEEL,P.C,(L.H.T)
1
N019
N510004151AA
HEXAGON NUT
K5F0707-13
2
N020
N510023074AA
BUSHING
CU-402PH
2
N023
MTNK001948AA
SPACER
MF84ZZ
1
N024
KXF03YBAA00
BEARING
M4X12-10.9 A2J (Trivalent)
1
N501
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
1
N502
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M4X16-10.9 A2J (Trivalent)
3
N503
N510017351AA
HEX. SOCKET HEAD CAP BOLT
M4X20-10.9 A2J (Trivalent)
1
N505
N510017354AA
HEX. SOCKET HEAD CAP BOLT
M8X30-10.9 A2J (Trivalent)
2
N507
N510017475AA
HEX. SOCKET HEAD CAP BOLT
M4-6H-4T A2J (Trivalent)
2
N509
N510017859AA
HEXAGON NUT
4 10H A2J (Trivalent)
1
N511
N510018497AA
ROUND PLAIN WASHER
M4X25-10.9 A2J (Trivalent)
1
N512
N510017359AA
HEX. SOCKET HEAD CAP BOLT
M3
2
N571
N510020098AA
WASHER
M126
FN610074668AA_09-2

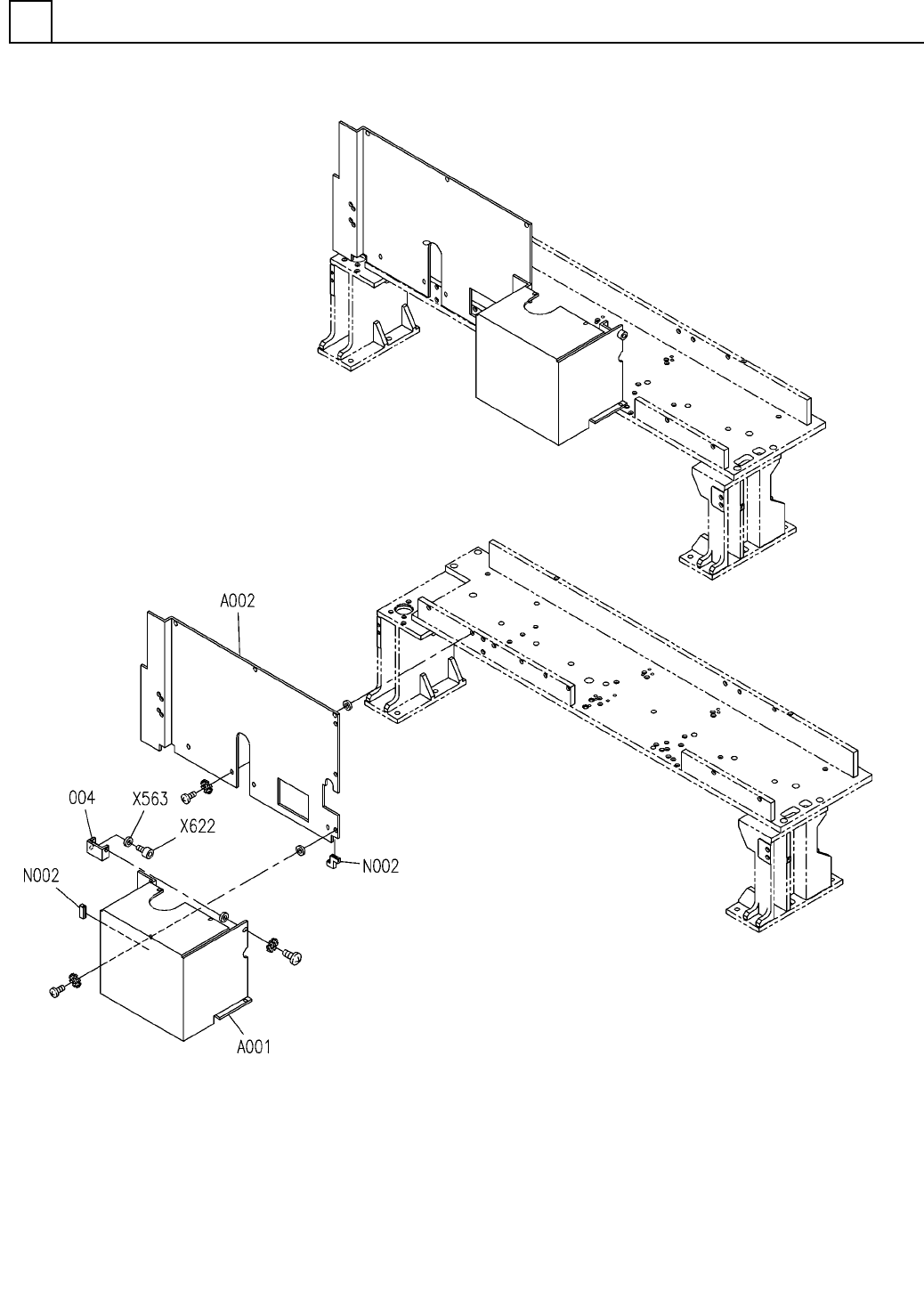

挿入ﾍｯﾄﾞ部(ｶﾊﾞｰ部)
INSERTION HEAD SECT.(COVER SECT.)
7
FN610130988AA_01
M127
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
PART NAME
REMARKSQ'TY
7
挿入ﾍｯﾄﾞ部(ｶﾊﾞｰ部)
INSERTION HEAD SECT.(COVER SECT.)
部 品 名品　 番 個数 備 考
R
2
R
3
R
1
1
N610130988AA
INSERTION HEAD UNIT
S
1
A001
N610116806AA
COVER
1
A002
N610130793AA
COVER
1
004 N210093261AA
BRACKET
EL-10
1
N002
N348EL10
BUSHING FOR WIRING
M5X10-10.9 A2J (Trivalent)
2
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
2
X563
N510018499AA
ROUND PLAIN WASHER
M128
FN610130988AA_01
