PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 4 X-Yﾃｰﾌﾞ ﾙ部(配線 配管部1) X-Y TA BLE SECT.(WIRI NG & PIPING SECT.-1) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610055729AA WIRING & P IPING UNIT 1 004 N210069675AB BRACKET …

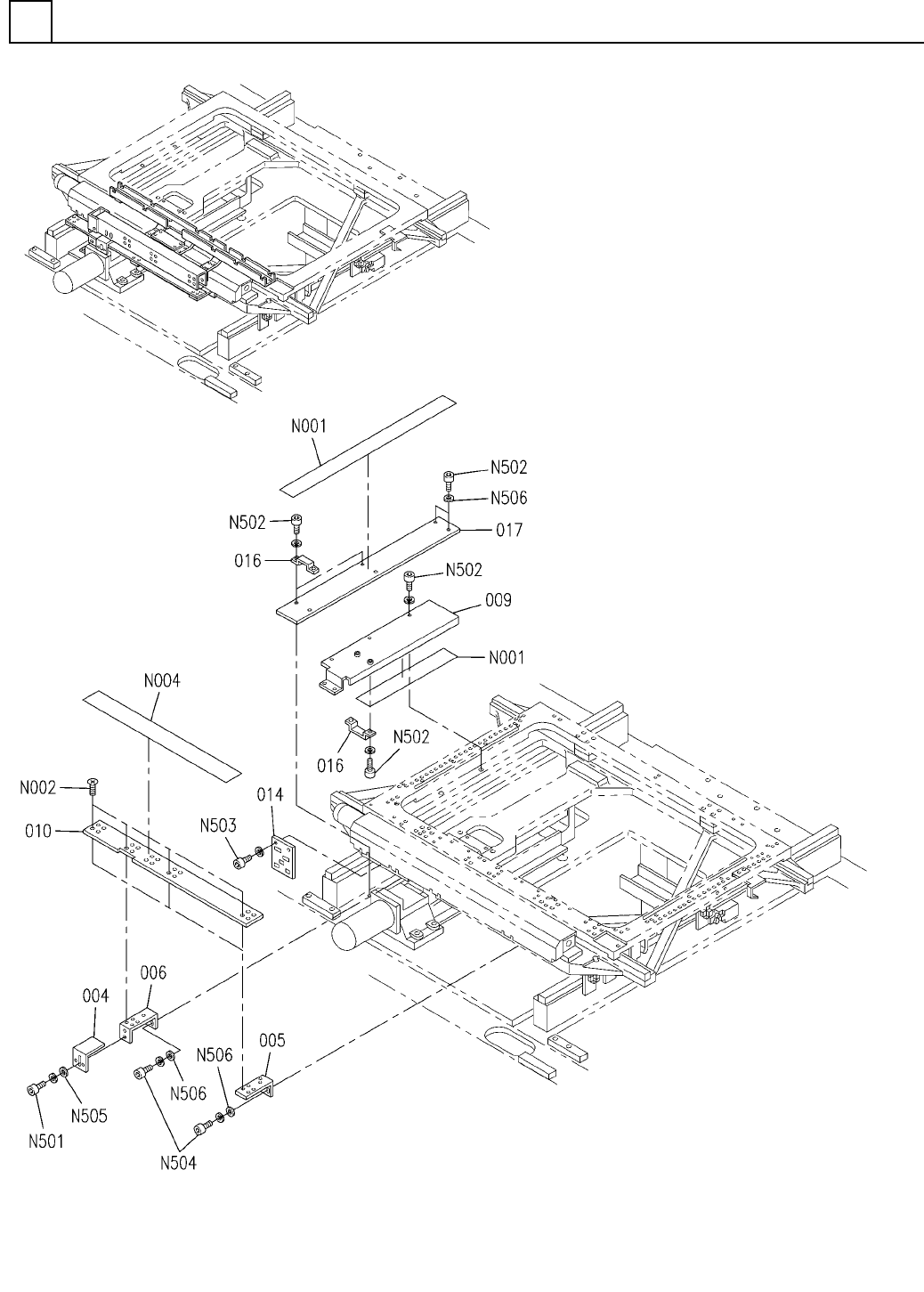

X-Yﾃｰﾌﾞﾙ部(配線配管部1)
X-Y TABLE SECT.(WIRING & PIPING SECT.-1)
4
FN610055729AA_11-1
M35
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
4
X-Yﾃｰﾌﾞﾙ部(配線配管部1)
X-Y TABLE SECT.(WIRING & PIPING SECT.-1)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610055729AA
WIRING & PIPING UNIT
1004 N210069675AB
BRACKET
3005 N210133079AA
BRACKET
1
006 N210133080AA
BRACKET
1009 N210069680AB
PLATE
1010 N210069681AB
PLATE
1
014 N210069848AA
CONNECTOR BRACKET
3
016 104130415601
BRACKET
1017 N210185195AA
PLATE
NO.903UL0.13X50
1
N001
N986N090-528
ADHESIVE TAPE
M3X6-4.8 A2J (Trivalent)
16
N002
N510018158AA
FLUSH HEAD SCREW
NO.903UL0.13X30
1
N004
N986N090-523
ADHESIVE TAPE
M3X6-10.9 A2J (Trivalent)
2
N501
N510017337AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
11
N502
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
2
N503
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M4X12-10.9 A2J (Trivalent)
8
N504
N510017346AA
HEX. SOCKET HEAD CAP BOLT
3 10H A2J (Trivalent)
2
N505
N510018494AA
ROUND PLAIN WASHER
4 10H A2J (Trivalent)
10
N506
N510018497AA
ROUND PLAIN WASHER
M36
FN610055729AA_11-1

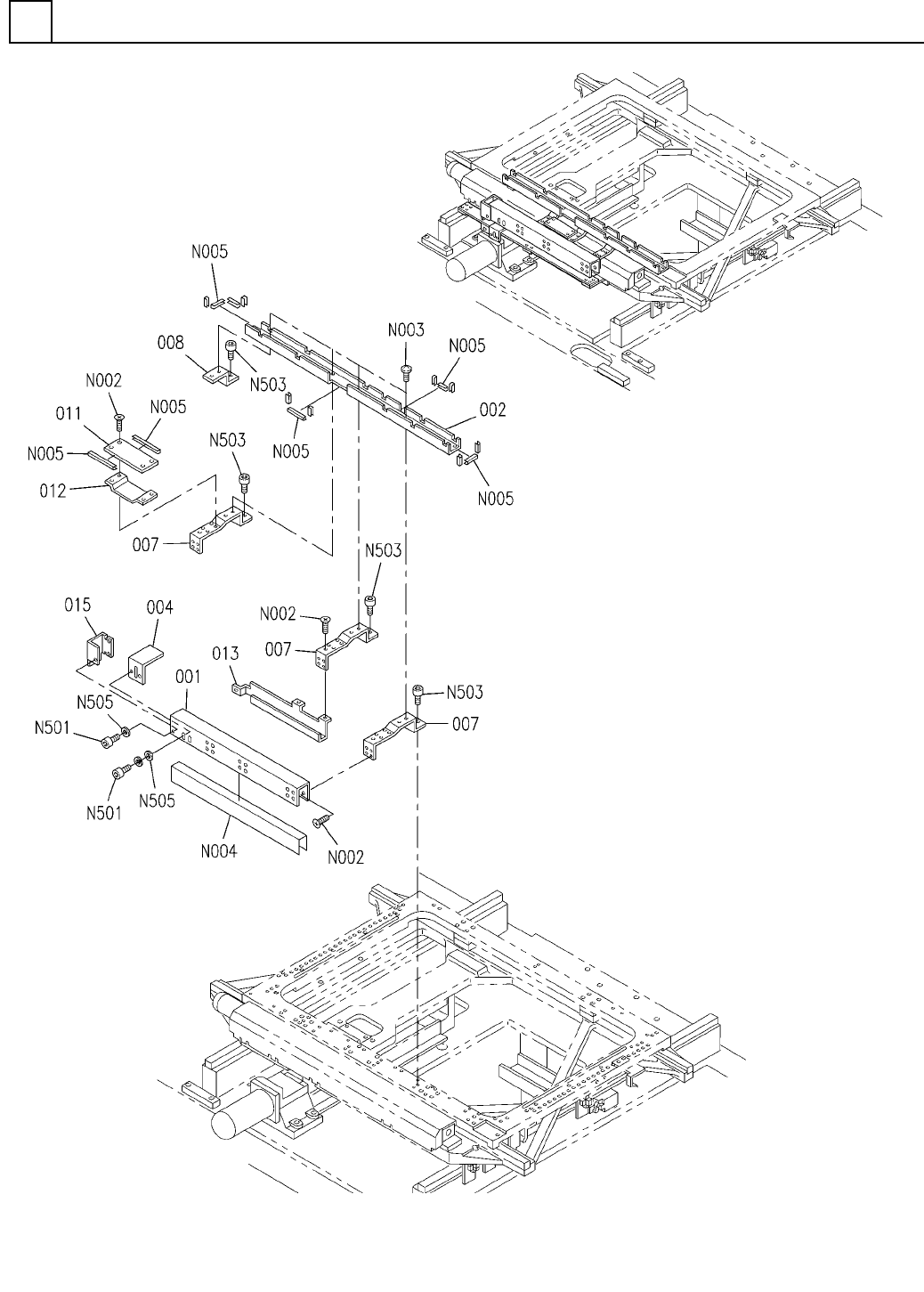

X-Yﾃｰﾌﾞﾙ部(配線配管部2)
X-Y TABLE SECT.(WIRING & PIPING SECT.-2)
4
FN610055729AA_11-2
