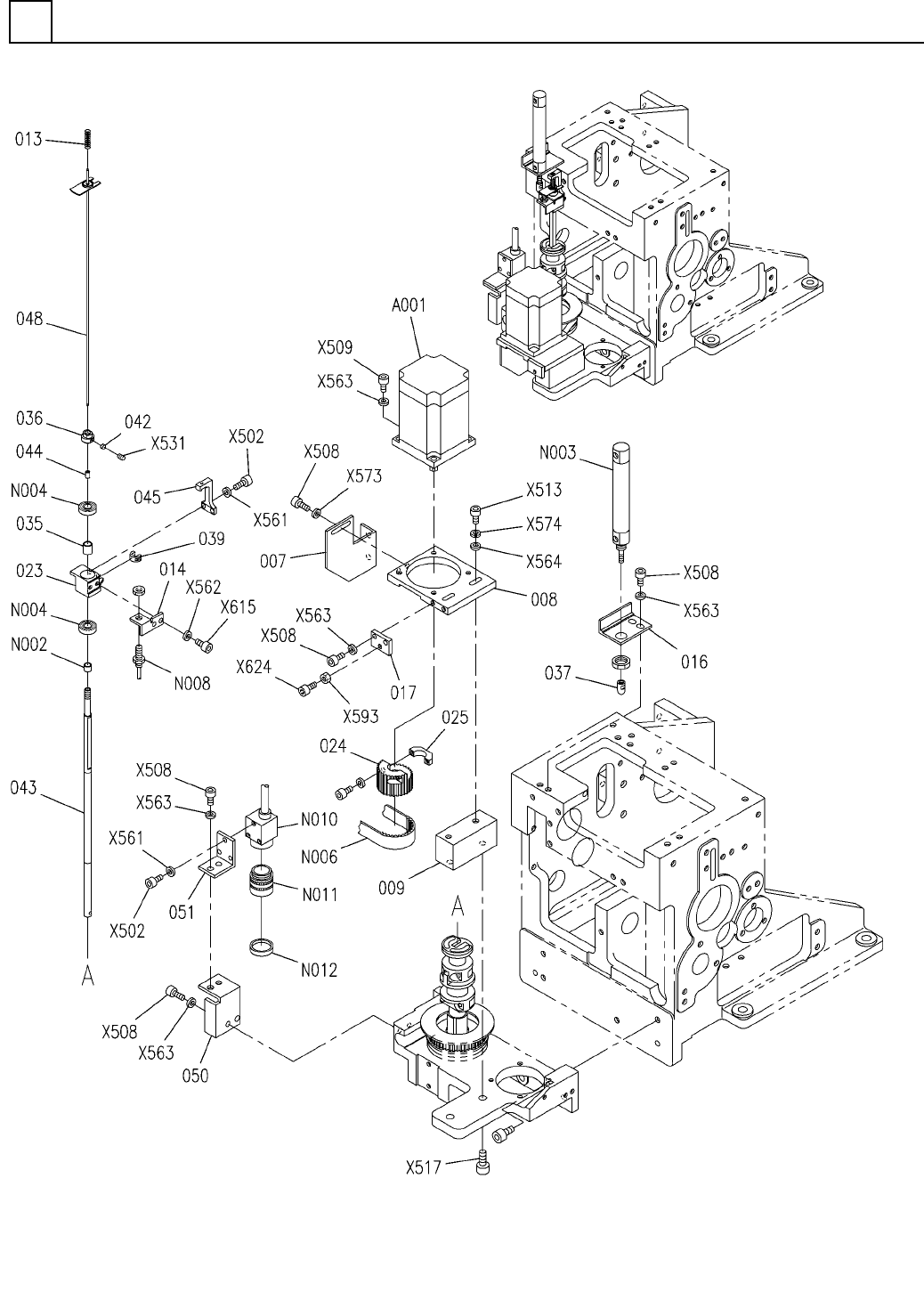

挿入ﾍｯ ﾄﾞ部(挿入 本体部2) INSERT ION HEAD SECT. (MAIN BODY S ECT.-2) 7 FN610129089AA_07-2 M103
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
7
挿入ﾍｯﾄﾞ部(挿入本体部1)
INSERTION HEAD SECT.(MAIN BODY SECT.-1)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610129089AA
INSERTION HEAD UNIT
1
A002
N610153310AA
BALL SPLINE
1002 X02G42002
SHAFT
1
003 X02G4200301
COLLAR
1004 X02G42004
SPRING
1005 X02G42005
SPRING
1
010 X02G42010
COLLAR
1
011 X02G42011
PUSHER
1012 X02G42013
SET SCREW
1015 X02G42102
PIN
1
018 N210185610AA
HOLDER
1
019 X01L42002
BLOCK(NUT)
1021 X01L42004
SHIFTER
1022 X01L42005
SHIFTER
1
026 X01L42012
SHAFT
1027 N210149031AB
CAM
1028 X01A4200102
RUBBER
1
029 N210123469AA
PIN
1
030 X01A42005
BUSHING
1032 X01A42012
DETECTION PLATE
1033 N210098812AB
PULLEY
1
034 X01A42016
STOPPER
1
038 X01A42027
STOPPER
1041 N210092169AB
BRACKET
1046 X01A42059
BUSHING
1
049 X01A42065
COLLAR
M2.5X4,STAINLESS(SUS304)
1
N001
XXE25C4VW
HEX. SOCKET SET SCREW
87MS6-15
2
N005
N510022040AA
PIN
EE-SX672
1
N007
KXF01YHAA00
SENSOR
MMS3-6
2
N009
N510020588AA
PIN
M4X14-10.9 A2J (Trivalent)
2
N014
N510017348AA
HEX. SOCKET HEAD CAP BOLT
M3X5-10.9 A2J (Trivalent)
4
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
2
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M5X16-10.9 A2J (Trivalent)
2
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT
M6X20-10.9 A2J (Trivalent)
4
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT
M8X25-10.9 A2J (Trivalent)
2
X517
N510017473AA
HEX. SOCKET HEAD CAP BOLT
M3X3-45H A2J (Trivalent)
1
X531
N510018358AA
HEX. SOCKET SET SCREW
3 10H A2J (Trivalent)
6
X561
N510018494AA
ROUND PLAIN WASHER
6 10H A2J (Trivalent)
4
X564
N510018501AA
ROUND PLAIN WASHER
M4
2
X572
N510020099AA
WASHER
M3-6H-4T A2J (Trivalent)
1
X591
N510017849AA
HEXAGON NUT
M3X20-10.9 A2J (Trivalent)
2
X612
N510017316AA
HEX. SOCKET HEAD CAP BOLT
M4X12-10.9 A2J (Trivalent)
6
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M6X12-10.9 A2J (Trivalent)
4
X629
N510017428AA
HEX. SOCKET HEAD CAP BOLT
M8X50-10.9 A2J (Trivalent)
2
X641
N510017482AA
HEX. SOCKET HEAD CAP BOLT
M102
FN610129089AA_07-1
挿入ﾍｯﾄﾞ部(挿入本体部2)
INSERTION HEAD SECT.(MAIN BODY SECT.-2)
7
FN610129089AA_07-2
M103
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
7
挿入ﾍｯﾄﾞ部(挿入本体部2)
INSERTION HEAD SECT.(MAIN BODY SECT.-2)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
MSMD082PJA S
1
A001
N610074301AA
MOTOR
1007 N210092167AA
SUPPORT
1008 N210084446AA
BRACKET
1
009 N210092168AA
SPACER
1013 N210161145AA
SPRING
1014 X02G42101
BRACKET(SENSOR)
1
016 N210199534AA
BLOCK
1
017 N210084447AA
BRACKET
1023 X01L42006
SHIFTER
1024 N210084448AB
PULLEY
1
025 N210084445AA
BLOCK(NUT)
1
035 X01A42021
COLLAR
1036 X01A42022
LOCK-NUT
1037 X01A42024
BRACKET
1
039 X01A42028
BUSHING
2042 X01A42039
SET PIECE
1043 N210175570AA
SHAFT
1
044 X01A42044
BUSHING
1
045 X01A4204501
SPRING HOLDER
1048 N210033660AB
PIN
1050 N210095354AA
BRACKET
1
051 N210095355AA
BRACKET
87FWSSM-D10.0-V8.0-T5.0
1
N002
N510034942AA
WASHER
MQMLB16H-75D-XM11
1
N003
N510008926AA
CYLINDER
698ZZ
2
N004
KXF00MWAA00
BEARING
420-EV5GT-15
1
N006
N510027689AA
BELT(TIMING)
GX-8MB-R
1
N008
N312GX8MBR
SENSOR
CS8630i-03 S
1
N010
N510023803AA
CAMERA
VS-MC25N-FN08
1
N011
N510065750AA
LENS
SV-ND50-270
1
N012
N510065751AA
FILTER
M3X8-10.9 A2J (Trivalent)
5
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
12
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M5X16-10.9 A2J (Trivalent)
4
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT
M6X20-10.9 A2J (Trivalent)
2
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT
M8X25-10.9 A2J (Trivalent)
2
X517
N510017473AA
HEX. SOCKET HEAD CAP BOLT
M3X3-45H A2J (Trivalent)
2
X531
N510018358AA
HEX. SOCKET SET SCREW
3 10H A2J (Trivalent)
5
X561
N510018494AA
ROUND PLAIN WASHER
4 10H A2J (Trivalent)
2
X562
N510018497AA
ROUND PLAIN WASHER
5 10H A2J (Trivalent)
14
X563
N510018499AA
ROUND PLAIN WASHER
6 10H A2J (Trivalent)
2
X564
N510018501AA
ROUND PLAIN WASHER
M5
2
X573
N510020100AA
WASHER
M6
2
X574
N510020101AA
WASHER
M5-6H-4T A2J (Trivalent)
1
X593
N510017862AA
HEXAGON NUT
M4X8-10.9 A2J (Trivalent)
2
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M5X30-10.9 A2J (Trivalent)
1
X624
N510017401AA
HEX. SOCKET HEAD CAP BOLT
M104
FN610129089AA_07-2
