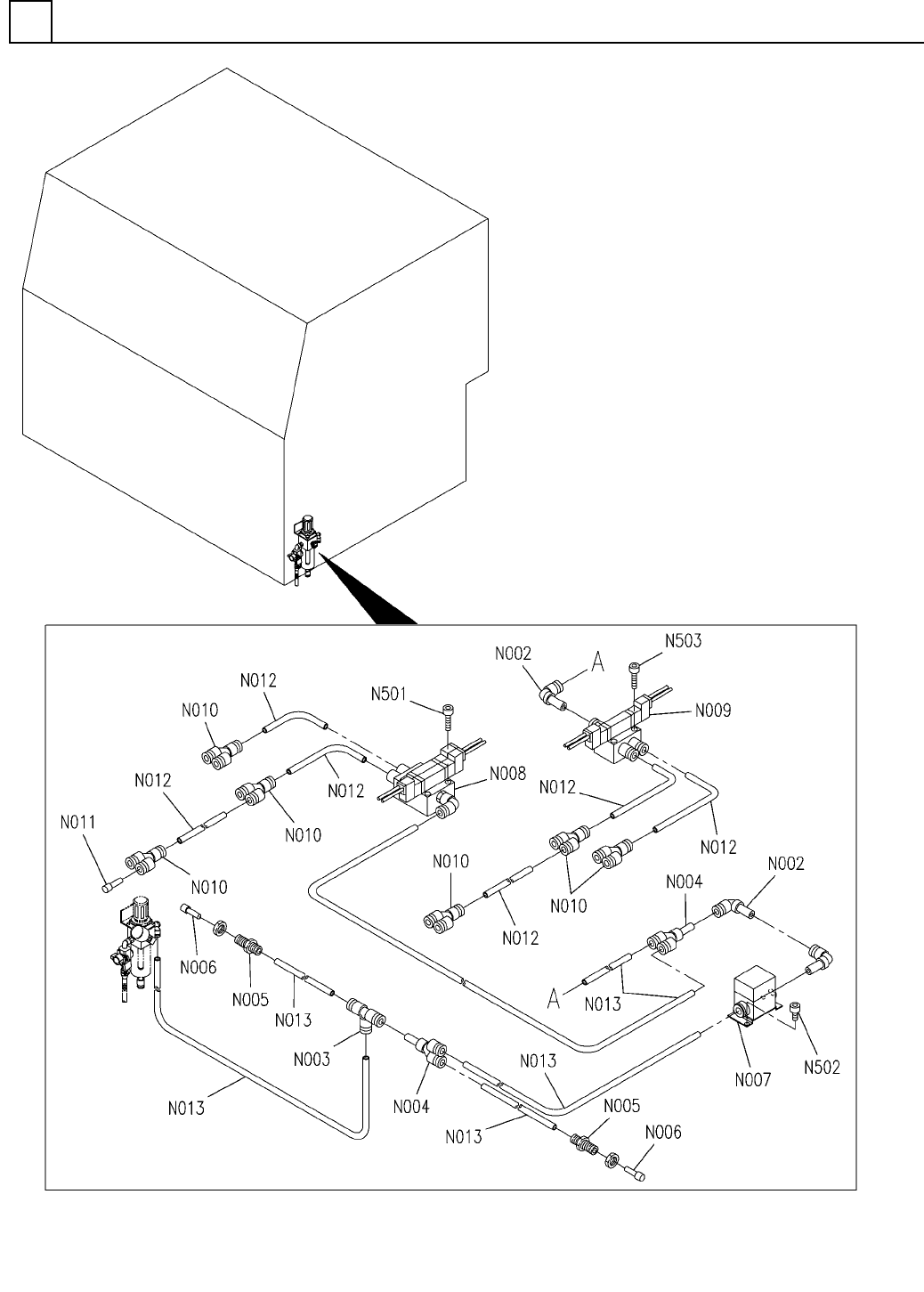

空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
1
FN610129367AA_08-2
P3
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
1
空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
KQ2L10-99A
2
N002
N510066688AA
JOINT
KQ2T10-00A
1
N003
N510066623AA
JOINT
KQ2U10-99A
2
N004
N510066846AA
JOINT
KQ2E10-00A
2
N005
N510066753AA
JOINT
KQ2P-10
2
N006
KXF0DZKSA00
PLUG
NK-80533-2
1
N007
MTNP000915AA
SOLENOID VALVE
NK-81220-3
1
N008
MTNP000102AA
MANIFOLD
NK-81221-2
1
N009
MTNP000065AA
MANIFOLD
KQ2U06-00A
7
N010
N510066456AA
JOINT
KQ2P-06
1
N011
KXF09ZBAA00
PLUG
TU0604B-20
1
N012
KXF03U6AA00
TUBE
TU1065B-20
1
N013
KXF03V4AA00
TUBE
M4X35-10.9 A2J (Trivalent)
2
N501
N510017364AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
2
N502
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M3X16-10.9 A2J (Trivalent)
2
N503
N510017313AA
HEX. SOCKET HEAD CAP BOLT
