RL132四跨具部品书N7203A389B44.pdf - 第91页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 6 ｶﾊﾞｰ部(ﾌﾛﾝﾄｶ ﾊﾞｰ部3) COVER SECT.(FRONT CO VER SECT.-3) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 010 N210071790AA PLATE 2 011 N210071791AA BRACKET 1 015 N210093677AB COVER EL-10…

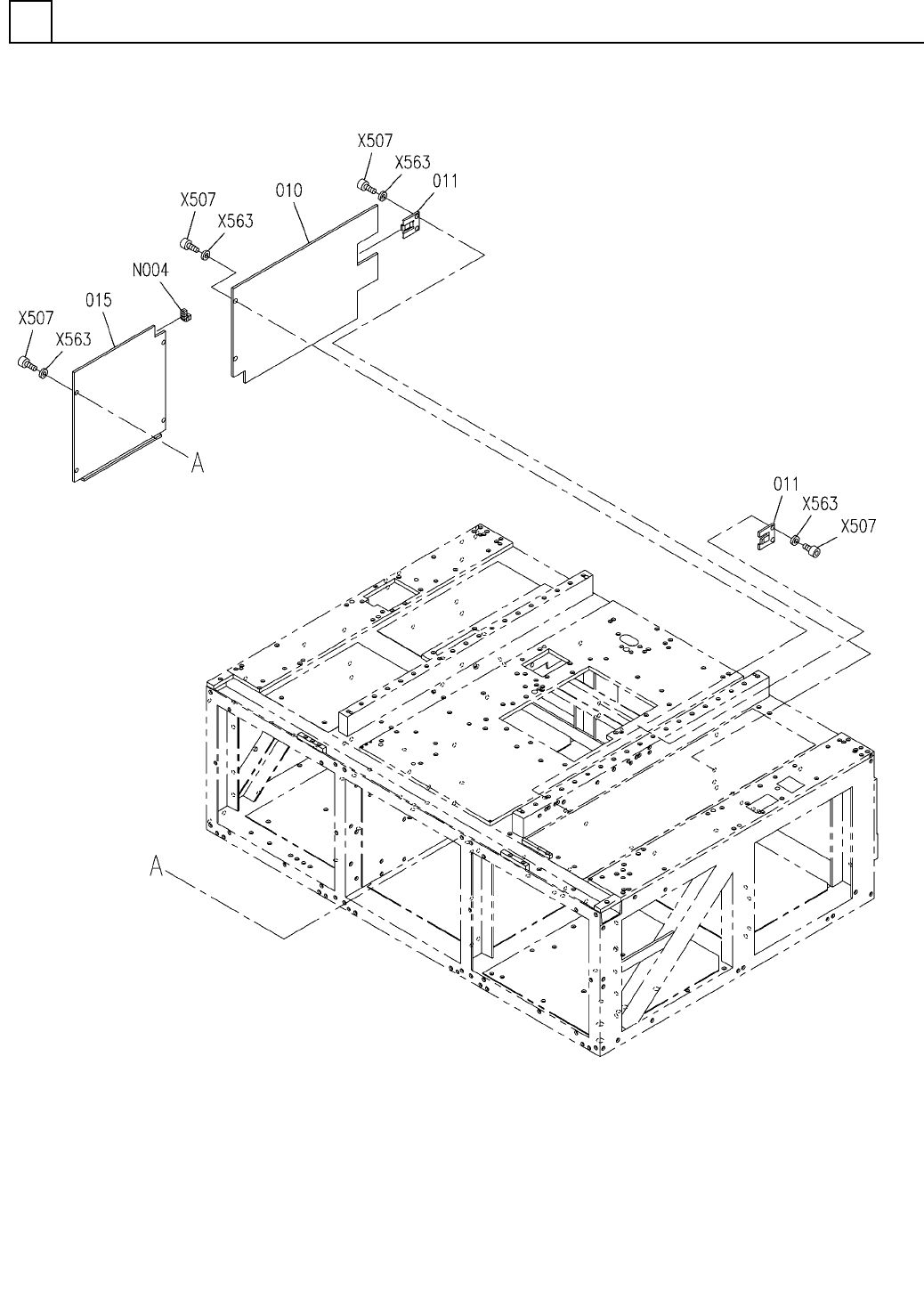

ｶﾊﾞｰ部(ﾌﾛﾝﾄｶﾊﾞｰ部3)
COVER SECT.(FRONT COVER SECT.-3)
6
FMTKA005767AA_02-3
M57
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部(ﾌﾛﾝﾄｶﾊﾞｰ部3)
COVER SECT.(FRONT COVER SECT.-3)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
010 N210071790AA
PLATE
2011 N210071791AA
BRACKET
1015 N210093677AB
COVER
EL-10
1
N004
N348EL10
BUSHING FOR WIRING
M5X8-10.9 A2J (Trivalent)
10
X507
N510017419AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
10
X563
N510018499AA
ROUND PLAIN WASHER
M58
FMTKA005767AA_02-3
ｶﾊﾞｰ部(ﾌﾛﾝﾄｶﾊﾞｰ部4)
COVER SECT.(FRONT COVER SECT.-4)
6
FMTKA005767AA_02-4
M59
