PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 5 ﾛｰﾀﾞ･ｱ ﾝﾛｰﾀﾞ部(ﾛ ｰﾀﾞ部2) LOADER & UNLOADER SE CT.(LOADER S ECT.-2) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 001 N210152372AF PLATE 1 002 N210152371AG PLATE 2 003 1099705118…

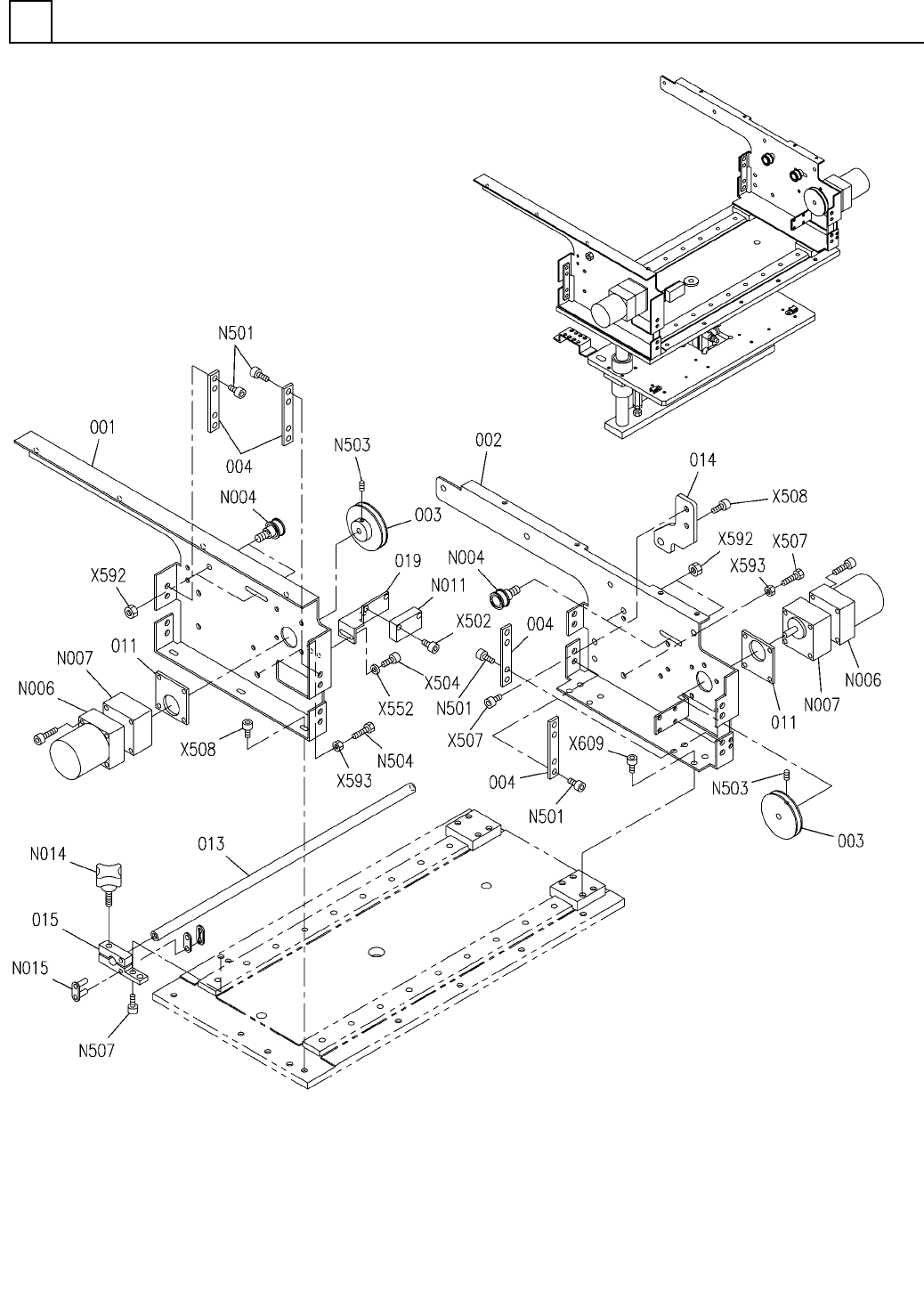

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞ部2)
LOADER & UNLOADER SECT.(LOADER SECT.-2)
5
FN610128952AA_18-2
M41
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
5
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞ部2)
LOADER & UNLOADER SECT.(LOADER SECT.-2)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
001 N210152372AF
PLATE
1002 N210152371AG
PLATE
2003 1099705118
PULLEY
4
004 N210149411AA
PLATE
2011 X02P05031
SPACER
1013 N210149405AA
SHAFT
1
014 N210149418AB
BRACKET
1
015 N210160468AC
STOPPER
1019 N210154678AB
BRACKET
MB019200
4
N004
N510058700AA
PULLEY
0IK1GN-CW2J
2
N006
N510031297AA
MOTOR
0GN9K
2
N007
N510058907AA
GEAR HEAD
P919T
1
N011
N310P919T
SWITCH
KJMS-32-M6X20
1
N014
N510059093AA
KNOB
KANA 40-SUS-JL
1
N015
N510061011AA
CHAIN
M5X6-10.9 A2J (Trivalent)
16
N501
N510017414AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
4
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M3X6-10.9 A2J (Trivalent)
8
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT
M5X35-6g 4T A2J (Trivalent)
1
N504
N510017749AA
HEXAGON HEAD BOLT
M4-6H-4T A2J (Trivalent)
4
X592
N510017855AA
HEXAGON NUT
M5-6H-4T A2J (Trivalent)
2
X593
N510017862AA
HEXAGON NUT
M4X8-45H A2J (Trivalent)
2
N503
N510018440AA
HEX. SOCKET SET SCREW
4 10H A2J (Trivalent)
2
X552
N510018479AA
ROUND PLAIN WASHER
M5X8-10.9 A2J (Trivalent)
2
X507
N510017419AA
HEX. SOCKET HEAD CAP BOLT
M5X12-6g 4T A2J (Trivalent)
3
N507
N510017741AA
HEXAGON HEAD BOLT
M4X6-10.9 A2J (Trivalent)
2
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT
M3X8-10.9 A2J (Trivalent)
2
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M42
