ﾛｰﾀﾞ･ｱ ﾝﾛｰﾀﾞ部(ﾛ ｰﾀﾞ/ｱﾝﾛｰﾀﾞ ｶﾊﾞｰ部) LOADER & UNLOADER SE CT.(LOADER/U NLOADER COVER SECT.) 5 FN610152208AA_02 M49
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
5
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(切欠き基板対応部)
LOADER & UNLOADER SECT.(P.C.B. CUTTING TYPE SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610088541AA
NOTCH TYPE P. C. BOARD UNIT
1001 N210099758AA
BRACKET
1002 N210147862AA
SLIDER
1
003 N210108317AA
SLIDER
2004 N210173566AA
PLATE
2005 N210173567AA
PLATE
M4X12-10.9 A2J (Trivalent)
4
N501
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
4
N502
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M3X8-10.9 A2J (Trivalent)
6
N503
N510017341AA
HEX. SOCKET HEAD CAP BOLT
3 10H A2J (Trivalent)
2
N504
N510018494AA
ROUND PLAIN WASHER
4 10H A2J (Trivalent)
2
N505
N510018497AA
ROUND PLAIN WASHER
M4X8-10.9 A2J (Trivalent)
2
N506
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X5-10.9 A2J (Trivalent)
2
N507
N510017372AA
HEX. SOCKET HEAD CAP BOLT
P919T
2
N001
N310P919T
SWITCH
ACQ16X40-QSGTRA0013B
1
N002
N510067295AA
CYLINDER
KQ2S06-M5
2
N003
KXF0DZ7YA00
FITTING
M4
6
N004
N510020099AA
WASHER
CTAM1
4
N005
KXFP6F86A00
CLAMP
M3X6-10.9 A2J (Trivalent)
8
N006
N510017513AA
HEX. SOCKET BUTTON HEAD BOL
M48
FN610088541AA_05
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞ/ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(LOADER/UNLOADER COVER SECT.)
5
FN610152208AA_02
M49
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
5

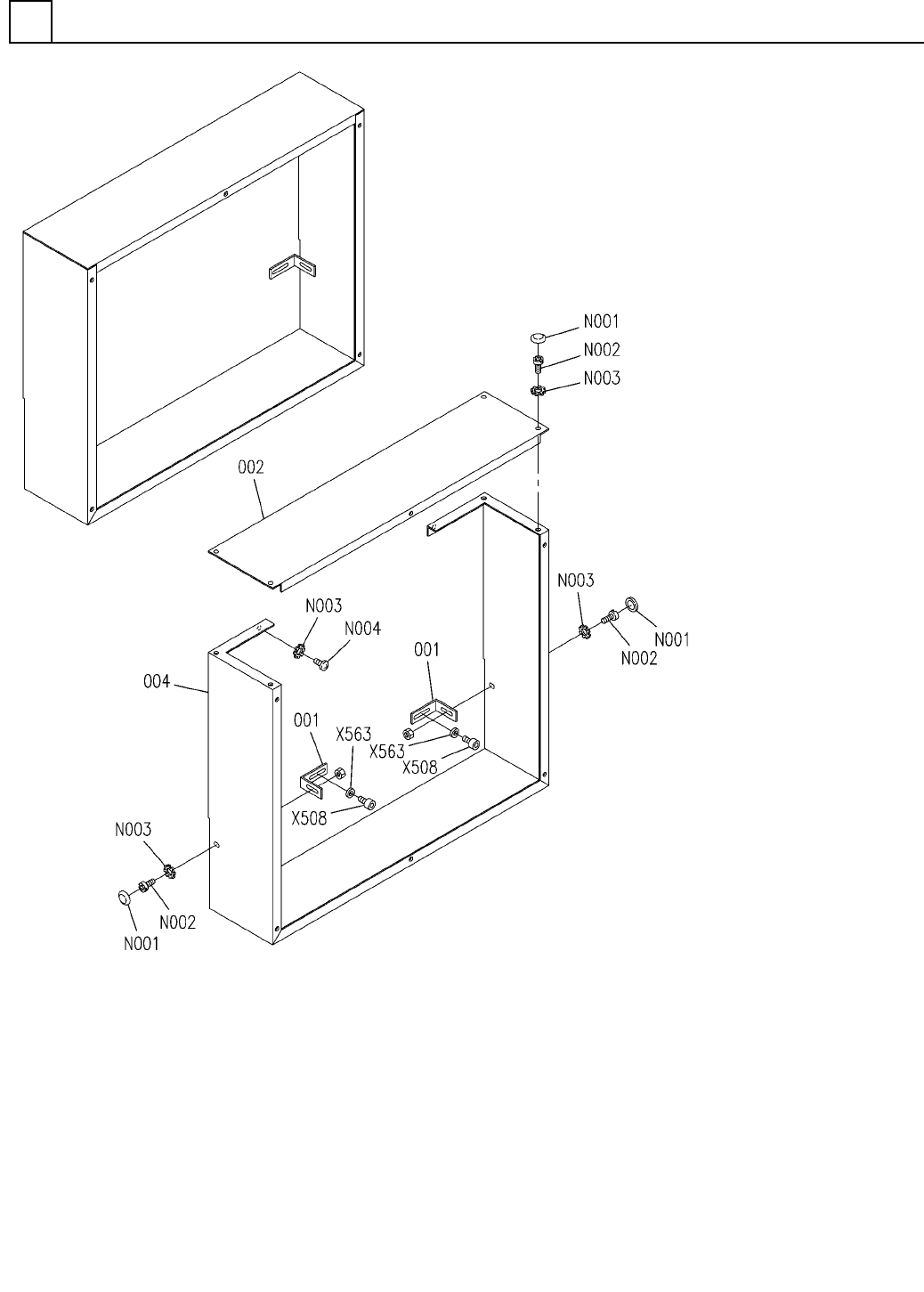

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞ/ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(LOADER/UNLOADER COVER SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610152208AA
LOADER UNLOADER COVER UNIT
2001 N210006976AA
BRACKET
1002 N210171371AA
COVER
1
004 N210171367AA
COVER
M5X12
6
N001
N986YYYY-814
CAP
JB-A M5X8 +
6
N002
N510038044AA
BOLT
5 External toothed Steel Unichrome white (Tri
8
N003
N510018765AA
TOOTHED LOCK WASHER
M5X8-4.8 A2J (Trivalent)
2
N004
N510018302AA
TRUSS HEAD SCREW
M5X12-10.9 A2J (Trivalent)
4
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
4
X563
N510018499AA
ROUND PLAIN WASHER
M50
FN610152208AA_02
