PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 4 X-Yﾃｰﾌﾞ ﾙ部(ﾃｰﾌﾞﾙ部2) X-Y TA BLE SECT.(TABL E SECT.-2) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 A001 N610056204AB X-TABLE 1 013 108710401701 BRACKET(L) 1 014 1087104018 BRACKET…

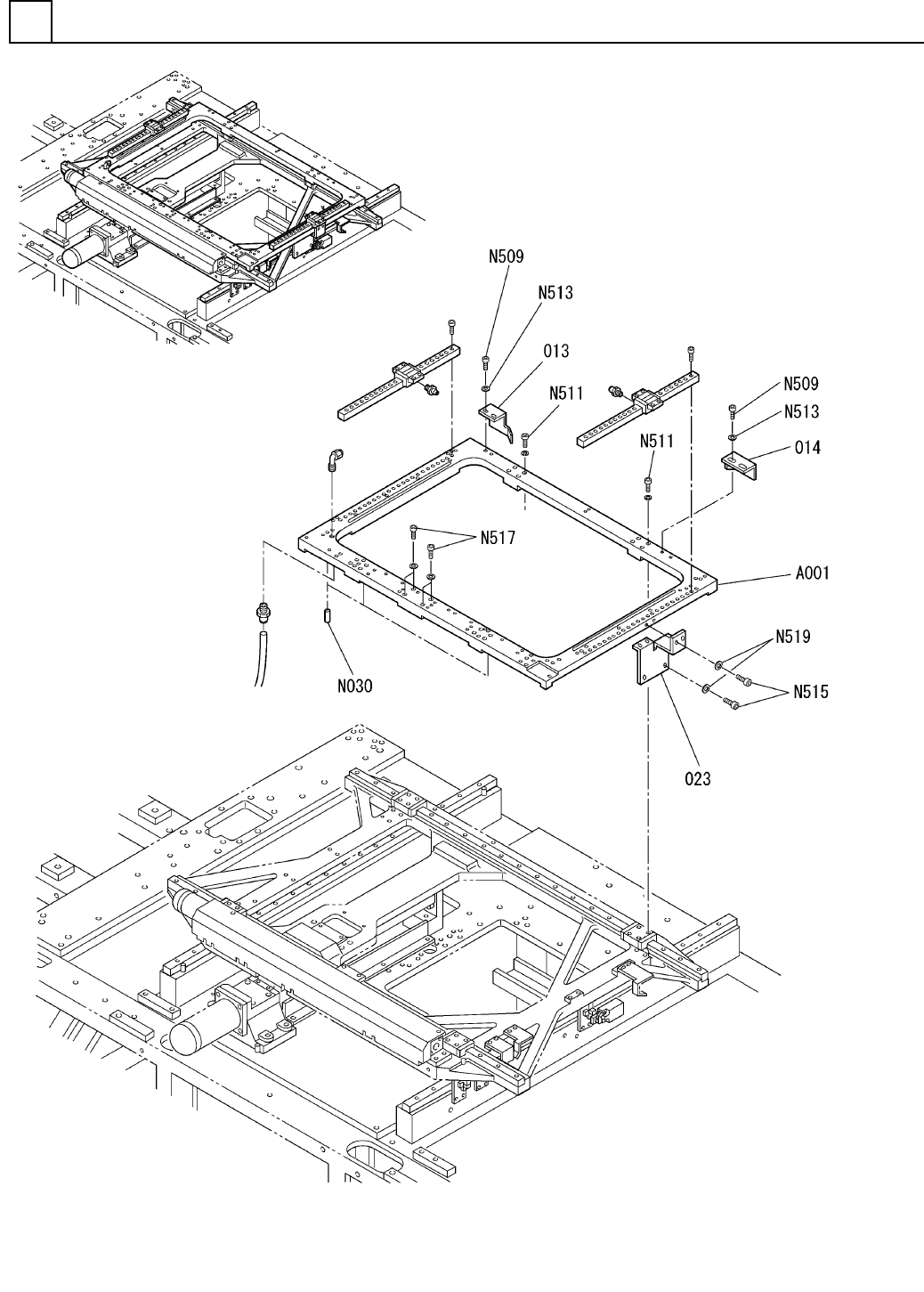

X-Yﾃｰﾌﾞﾙ部(ﾃｰﾌﾞﾙ部2)
X-Y TABLE SECT.(TABLE SECT.-2)
4
FN610055746AA_10-4
M33
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
4
X-Yﾃｰﾌﾞﾙ部(ﾃｰﾌﾞﾙ部2)
X-Y TABLE SECT.(TABLE SECT.-2)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A001
N610056204AB
X-TABLE
1013 108710401701
BRACKET(L)
1014 1087104018
BRACKET(R)
1
023 N210084127AA
BRACKET
6X10,m6A,STEEL
3
N030
XPJ6A10FW
PARALLEL PIN
M4X10-10.9 A2J (Trivalent)
4
N509
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M4X20-10.9 A2J (Trivalent)
16
N511
N510017354AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
4
N513
N510018497AA
ROUND PLAIN WASHER
M5X12-10.9 A2J (Trivalent)
6
N515
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M5X20-10.9 A2J (Trivalent)
4
N517
N510017398AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
6
N519
N510018499AA
ROUND PLAIN WASHER
M34
FN610055746AA_10-4
