X-Yﾃｰﾌﾞﾙ部 (Y軸駆動部 ) X-Y TA BLE SECT.(Y-AX IS DRIVING S ECT.) 4 FN610055746AA_10-2 M29
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
4
X-Yﾃｰﾌﾞﾙ部(X軸駆動部)
X-Y TABLE SECT.(X-AXIS DRIVING SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610055746AA
X-Y TABLE UNIT
(MSMD042PJA) S
1
A002
N610052027AA
MOTOR
1001 N210069667AA
BRACKET(MOTOR)
1
003 N210069662AD
HOUSING
1005 N210069668AA
HOLDER(SHAFT)
3010 108710401302
BRACKET
1
011 1087104014
DOG FOR SENSOR
1
018 N210069669AD
COVER
1026 N210028631AA
COVER(BEARING)
SFC-035SA2-9B-14B(SWD-0000815)
1
N006
N510048357AA
COUPLING
FU00SS
1
N007
N510004723AA
NUT
7000ADBC8P5
1
N008
N510003427AA
BEARING
6201ZZ
1
N009
XLC6201ZZ
BALL BEARING
87FWSSB-D16.0-V5.0-T2.0
1
N010
N510034921AA
WASHER
P921S1
1
N011
N310P921S1
SENSOR
PANADAC921SA1
2
N012
N310P921SA1
SENSOR
87FWSSB-D15.0-V10.0-T3.0
1
N022
N510032158AA
WASHER
GZ1510ES-ZAPR-0744X0695-C5S(GZ1510ES015C0004)
1
N024
N510021862AA
BALL SCREW
M3X5-10.9 A2J (Trivalent)
2
N503
N510017333AA
HEX. SOCKET HEAD CAP BOLT
M3X10-10.9 A2J (Trivalent)
6
N505
N510017305AA
HEX. SOCKET HEAD CAP BOLT
3 10H A2J (Trivalent)
2
N506
N510018494AA
ROUND PLAIN WASHER
No.2 3 S A2J (Trivalent)
6
N507
N510018327AA
SPRING WASHER
M4X8-10.9 A2J (Trivalent)
3
N508
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
8
N509
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M4X16-10.9 A2J (Trivalent)
4
N510
N510017351AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
11
N513
N510018497AA
ROUND PLAIN WASHER
M5X12-10.9 A2J (Trivalent)
1
N515
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M5X16-10.9 A2J (Trivalent)
4
N516
N510017395AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
1
N519
N510018499AA
ROUND PLAIN WASHER
M6X20-10.9 A2J (Trivalent)
6
N521
N510017435AA
HEX. SOCKET HEAD CAP BOLT
6 10H A2J (Trivalent)
2
N523
N510018501AA
ROUND PLAIN WASHER
M28
FN610055746AA_10-1

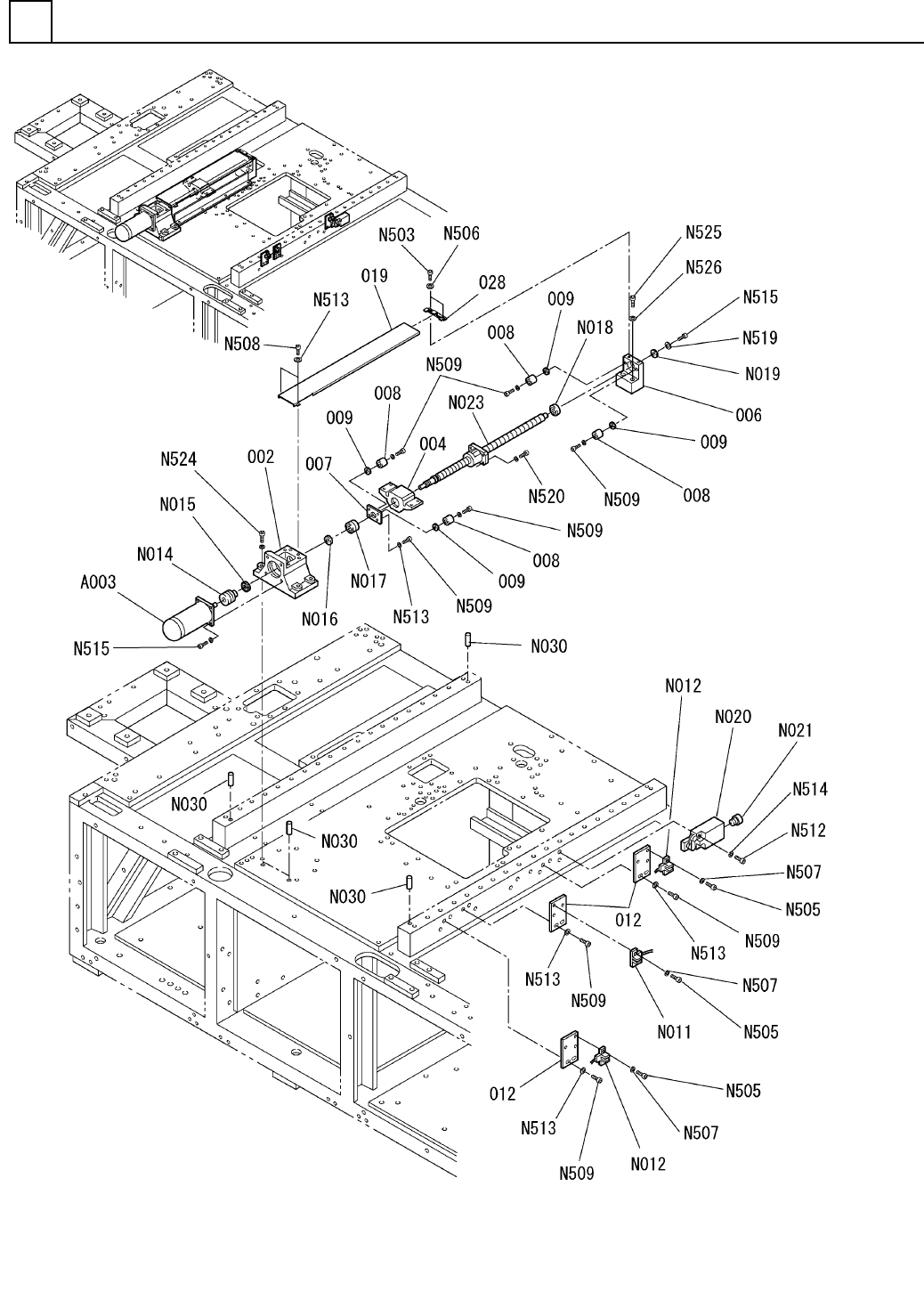

X-Yﾃｰﾌﾞﾙ部(Y軸駆動部)
X-Y TABLE SECT.(Y-AXIS DRIVING SECT.)
4
FN610055746AA_10-2
M29
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
4
X-Yﾃｰﾌﾞﾙ部(Y軸駆動部)
X-Y TABLE SECT.(Y-AXIS DRIVING SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
(MSMD082PJA) S
1
A003
N610052028AA
MOTOR
1002 N210084043AB
BRACKET(MOTOR)
1004 X01L21011
HOUSING
1
006 N210068163AB
HOLDER
1007 N210027736AA
BEARING
4008 X00K02068
STOPPER
4
009 X00K02069
COLLAR
3
012 1087104015
PLATE(Y)
1019 MTPB007040AB
COVER
1028 N210159523AA
BRACKET
P921S1
1
N011
N310P921S1
SENSOR
PANADAC921SA1
2
N012
N310P921SA1
SENSOR
SFC-040SA2-13B-19B(SWD-0000816)
1
N014
N510048358AA
COUPLING
FU02SC
1
N015
KXF0234AA00
LOCK-NUT
87FWSSB-D20.0-V15.0-T5.0
1
N016
N510034922AA
WASHER
7202ADBP5
1
N017
N510003493AA
BEARING
6202ZZ
1
N018
XLC6202ZZ
BALL BEARING
87FWSSB-D20.0-V5.0-T3.0
1
N019
N510033408AA
WASHER
LS-11S/RL S
1
N020
N510030839AA
SWITCH
V-M20
1
N021
KXF0DG3AA00
CABLE
GZ2010ES-ZAPR-0588X0509-C5F(GZ2010ES007C0000)
1
N023
N510048953AA
BALL SCREW
6X10,m6A,STEEL
5
N030
XPJ6A10FW
PARALLEL PIN
M3X5-10.9 A2J (Trivalent)
2
N503
N510017333AA
HEX. SOCKET HEAD CAP BOLT
M3X10-10.9 A2J (Trivalent)
6
N505
N510017305AA
HEX. SOCKET HEAD CAP BOLT
3 10H A2J (Trivalent)
2
N506
N510018494AA
ROUND PLAIN WASHER
No.2 3 S A2J (Trivalent)
6
N507
N510018327AA
SPRING WASHER
M4X8-10.9 A2J (Trivalent)
2
N508
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
12
N509
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M4X30-10.9 A2J (Trivalent)
2
N512
N510017361AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
10
N513
N510018497AA
ROUND PLAIN WASHER
No.2 4 S A2J (Trivalent)
2
N514
N510018330AA
SPRING WASHER
M5X12-10.9 A2J (Trivalent)
5
N515
N510017390AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
1
N519
N510018499AA
ROUND PLAIN WASHER
M6X16-10.9 A2J (Trivalent)
4
N520
N510017433AA
HEX. SOCKET HEAD CAP BOLT
M8X30-10.9 A2J (Trivalent)
4
N524
N510017475AA
HEX. SOCKET HEAD CAP BOLT
M8X50-10.9 A2J (Trivalent)
2
N525
N510017482AA
HEX. SOCKET HEAD CAP BOLT
8 10H A2J (Trivalent)
2
N526
N510018503AA
WASHER
M30
FN610055746AA_10-2
