RL132四跨具部品书N7203A389B44.pdf - 第319页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 22 表示ﾗﾍ ﾞﾙ部(1)(8 0ｽﾃｰｼｮﾝ) INDICA TION LABEL SEC T.(1)(80 STA TION) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610130668AA INDICATION LABEL UNIT 1 001 N210104787AA SEAL 1 004 N21…

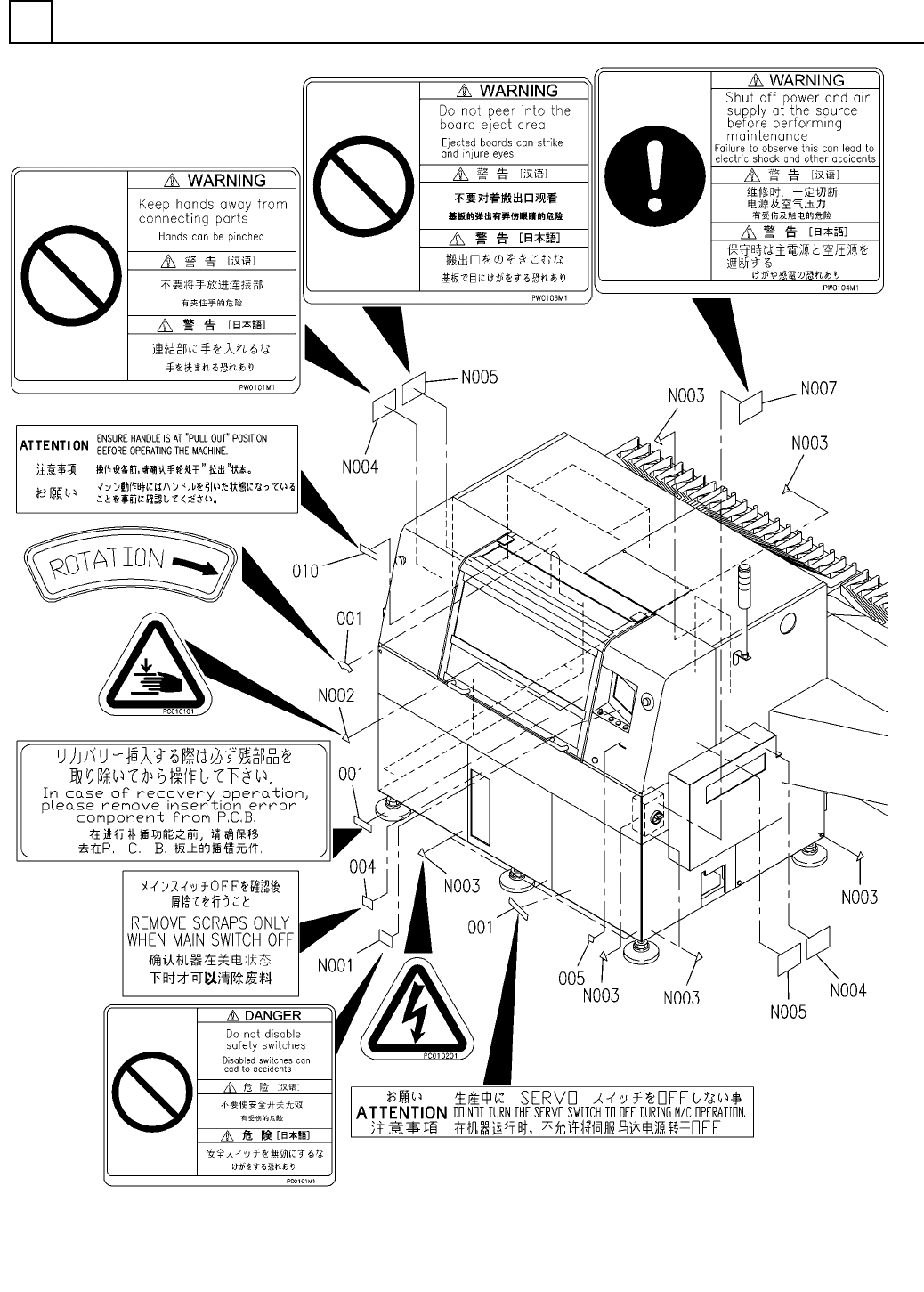

表示ﾗﾍﾞﾙ部(1)(80ｽﾃｰｼｮﾝ)
INDICATION LABEL SECT.(1)(80 STATION)
22
FN610130668AA_12-1
M285
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
22
表示ﾗﾍﾞﾙ部(1)(80ｽﾃｰｼｮﾝ)
INDICATION LABEL SECT.(1)(80 STATION)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610130668AA
INDICATION LABEL UNIT
1001 N210104787AA
SEAL
1004 N210082374AA
LABEL
1
005 N210075562AA
NAME PLATE
1010 N210108892AA
LABEL
PD0101M1 S
1
N001
KXF0E061A00
SEAL
PC010101 S
1
N002
KXF0E05TA00
LABEL
PC010201 S
10
N003
KXF0E05UA00
LABEL
PW0101M1 S
4
N004
KXF0E063A00
LABEL
PW0106M1 S
2
N005
KXF0E068A00
LABEL
PW0104M1 S
1
N007
KXF0E066A00
LABEL
M286
FN610130668AA_12-1

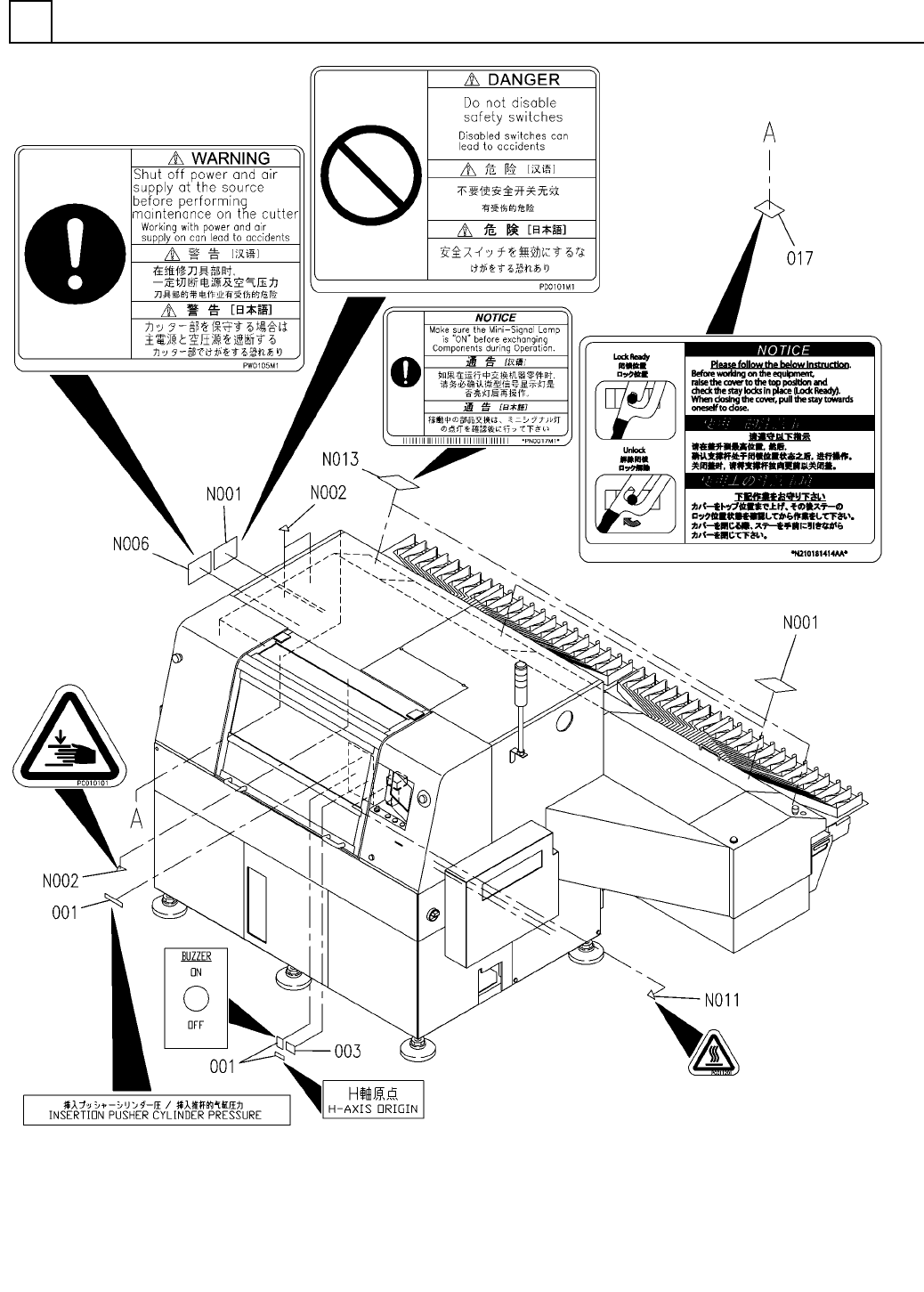

表示ﾗﾍﾞﾙ部(2)(80ｽﾃｰｼｮﾝ)
INDICATION LABEL SECT.(2)(80 STATION)
22
FN610130668AA_12-2
M287
