Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3 05/2009 Edition 48 : Screw the switc h as shown in the p ictures to the mac hinery facing. 2 2 2
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
47

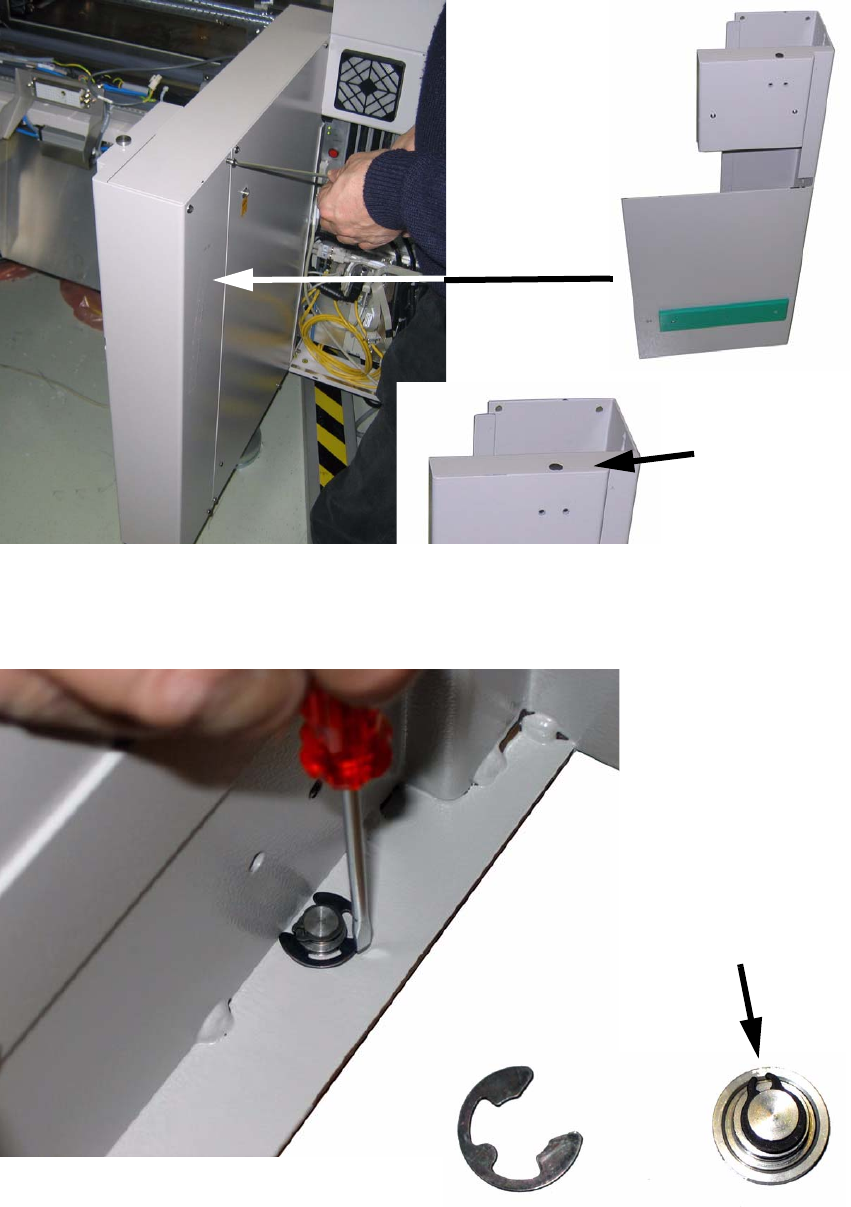

: Remove the machinery facing. Remove the closing plug from the hole.
2
2
: Mount the actuator to the machinery facing.
2
Closing plug
actuator
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
48

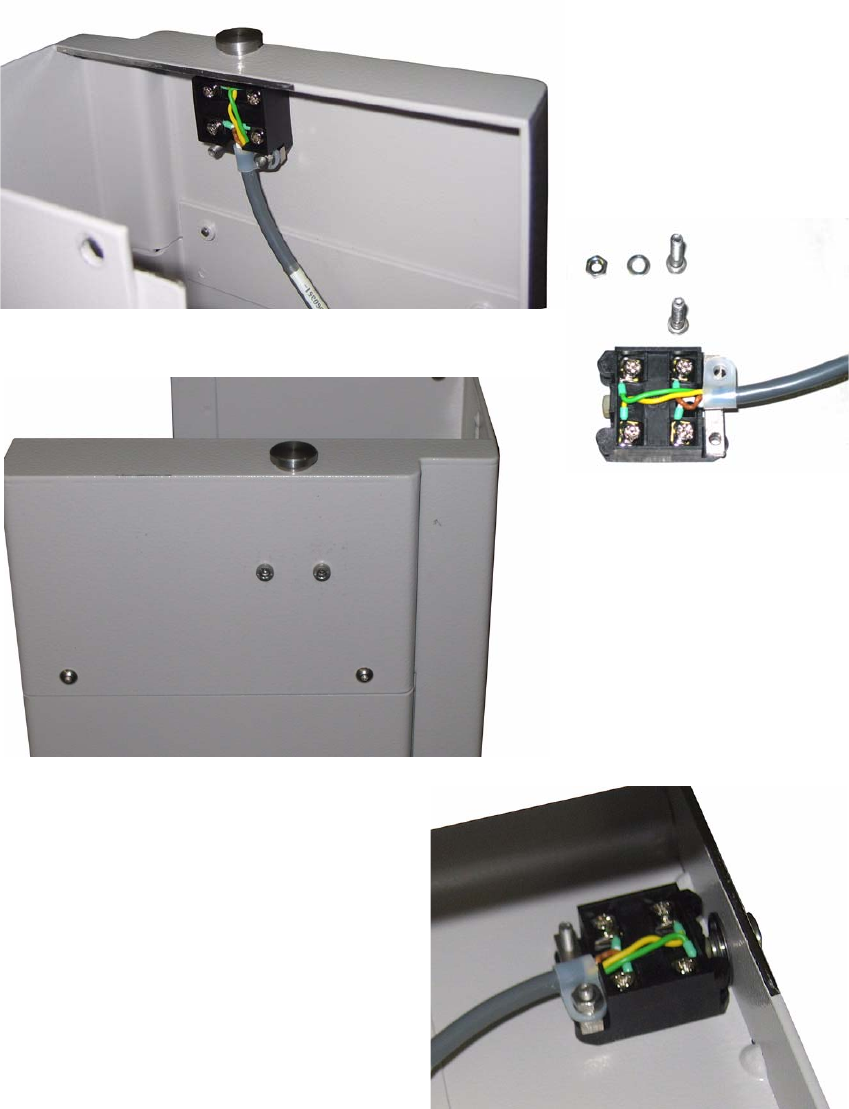

: Screw the switch as shown in the pictures to the machinery facing.
2
2
2
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
49

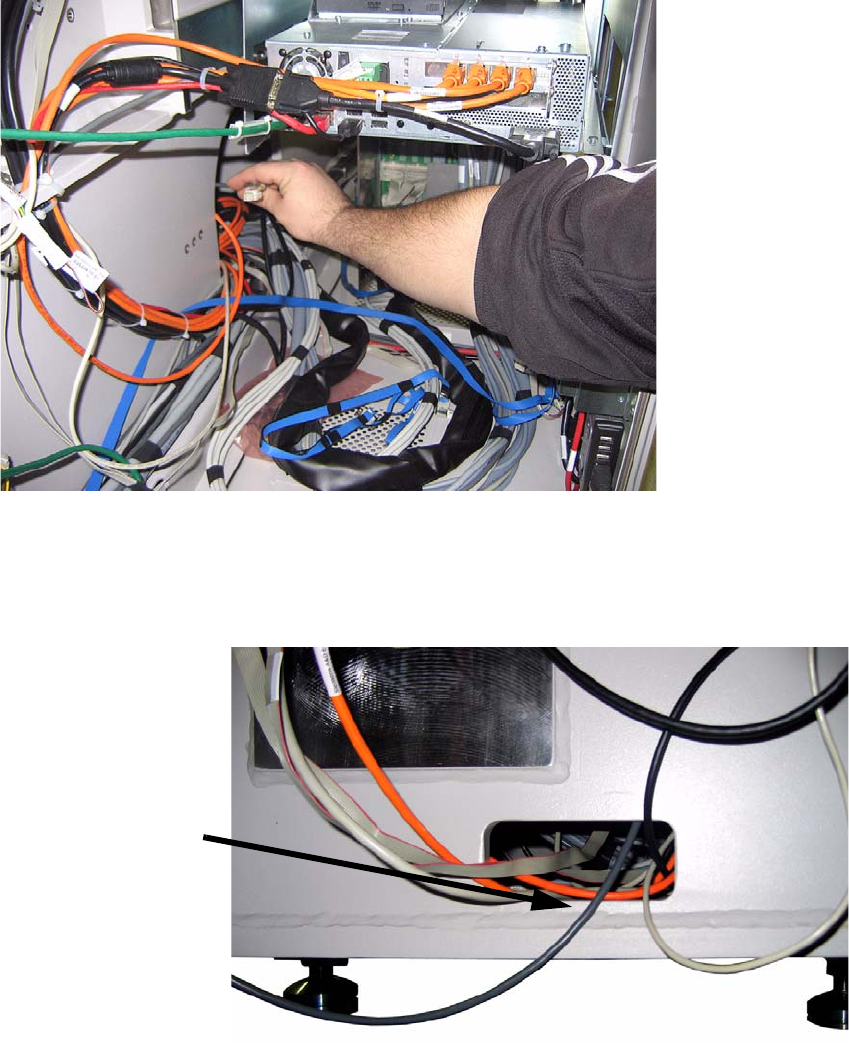

: Run the cable from the switch through the hole in the machine frame.
2
2
: Run the cable through the hole in the machine frame beneath the docking unit up to the back
of the docking unit.
2
2
2
2
2
Cable to the switch
