Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3 05/2009 Edition 55 Adjusting the damper 2 2 When the damper is right ad justed the plate should cl ose by itself when it is pushed a little bit i…
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
54

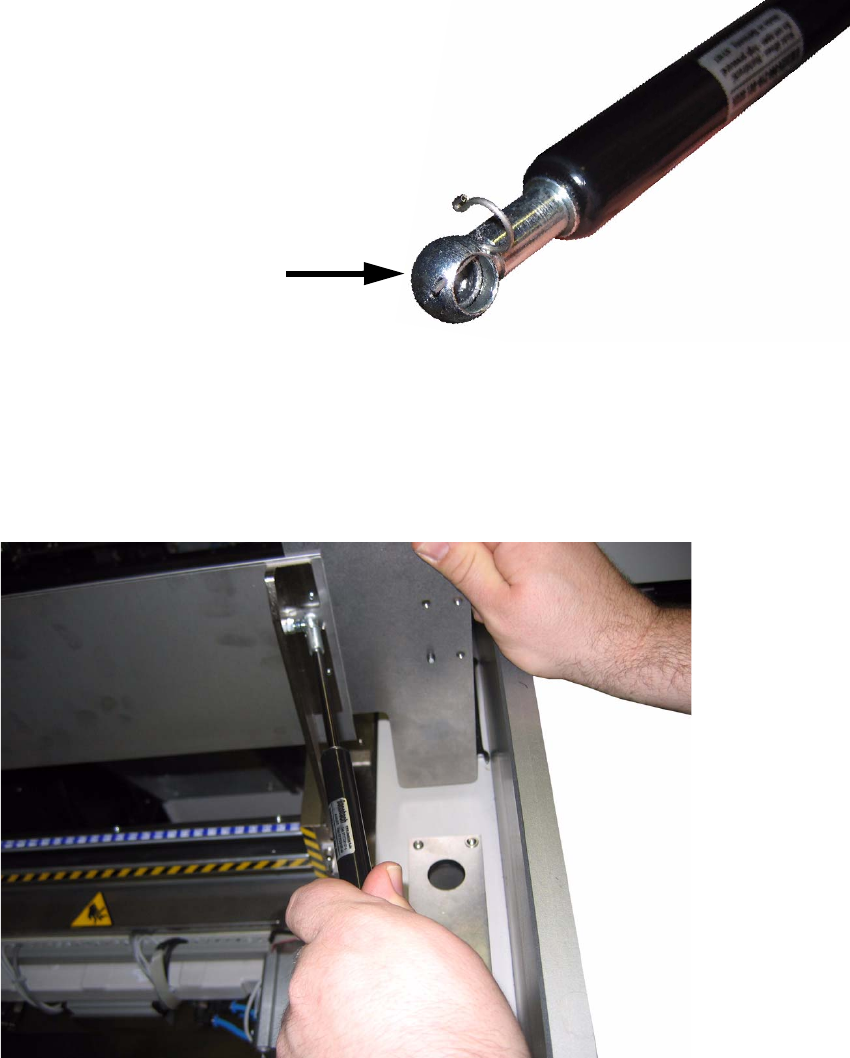

: Release the spring on both sides of the damper.
Be careful ! The springs can be lost very easily.
2
2
: Put the damper on the ball joint of the feeder protection plate and secure it with the spring.
: Put the damper on the ball joint at the empty tape guide channel, but don’t secure it there with
the spring.
2
2
2
2
Take out this spring to get the
damper off from the ball joint
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
55
Adjusting the damper 2
2
When the damper is right adjusted the plate should close by itself when it is pushed a little bit in
approximately 2 seconds. If it closes to fast or to hard, or the plate cannot close by itself you have
to re-adjust the damping force until everything is working correctly. 2
2
: Pull the damper to his full length. Twist the damper from the left to the right while you keep on
pulling until you can feel it locking.
: Now you can adjust the damping force by turning the damper to the left or to the right.
left => decrease damping force
right=> increase damping force.
: When the damper is right adjusted secure the damper to the ball joint at the empty tape guide
channel with the spring.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
56

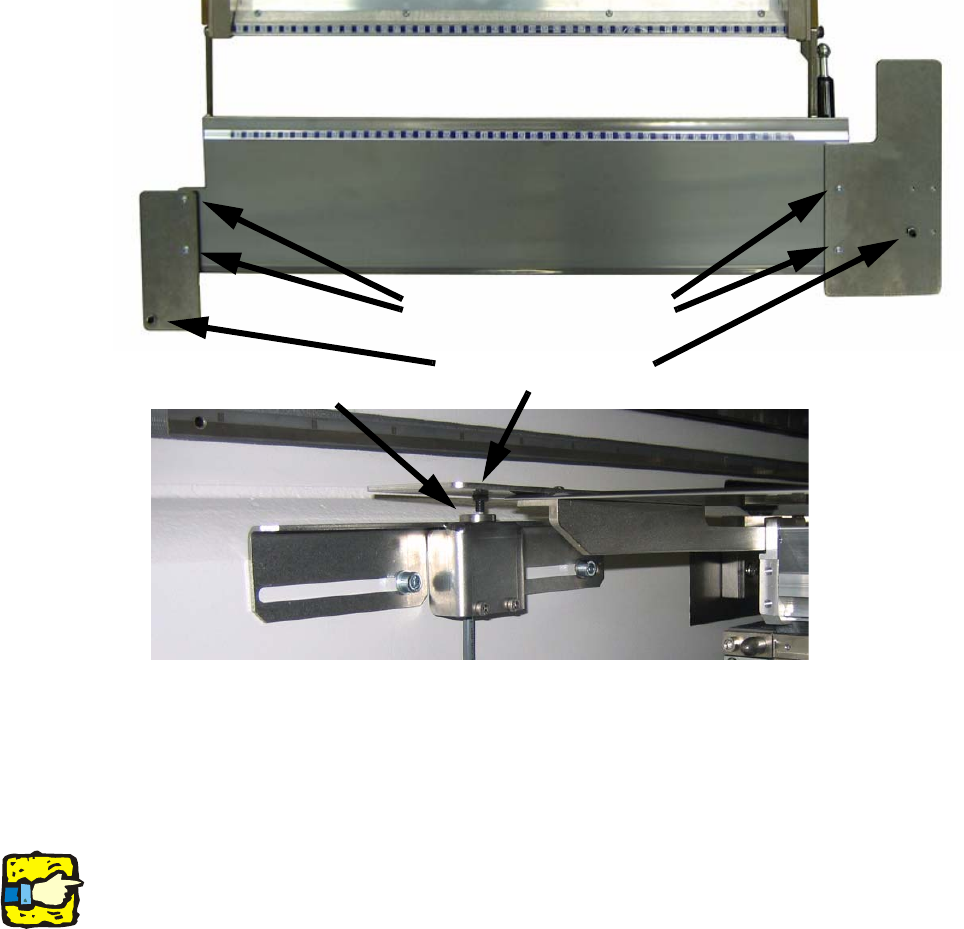

: Adjust the plates with the four screws so that the headless set screws hit the actuators right
in the middle. To adjust this position the switch at the machine frame can also be moved in Y-
direction.
2
2
: Install the nozzle changer if present
: Connect the machine to the power supply.
: Switch on the placement system.
2
Do not execute a reference run, because the feeder protective plate is not already right adjusted
and may cause a head crash. 2
2
: Put in the changover table.
: Shut down the station computer.
: Switch off the placement system.
2
2
Screws to adjust the plates
Headless set screws
Actuator
