Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
48
: Screw the switch as shown in the pictures to the machinery facing.
2
2
2
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
49
: Run the cable from the switch through the hole in the machine frame.
2
2
: Run the cable through the hole in the machine frame beneath the docking unit up to the back
of the docking unit.
2
2
2
2
2
Cable to the switch
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
50

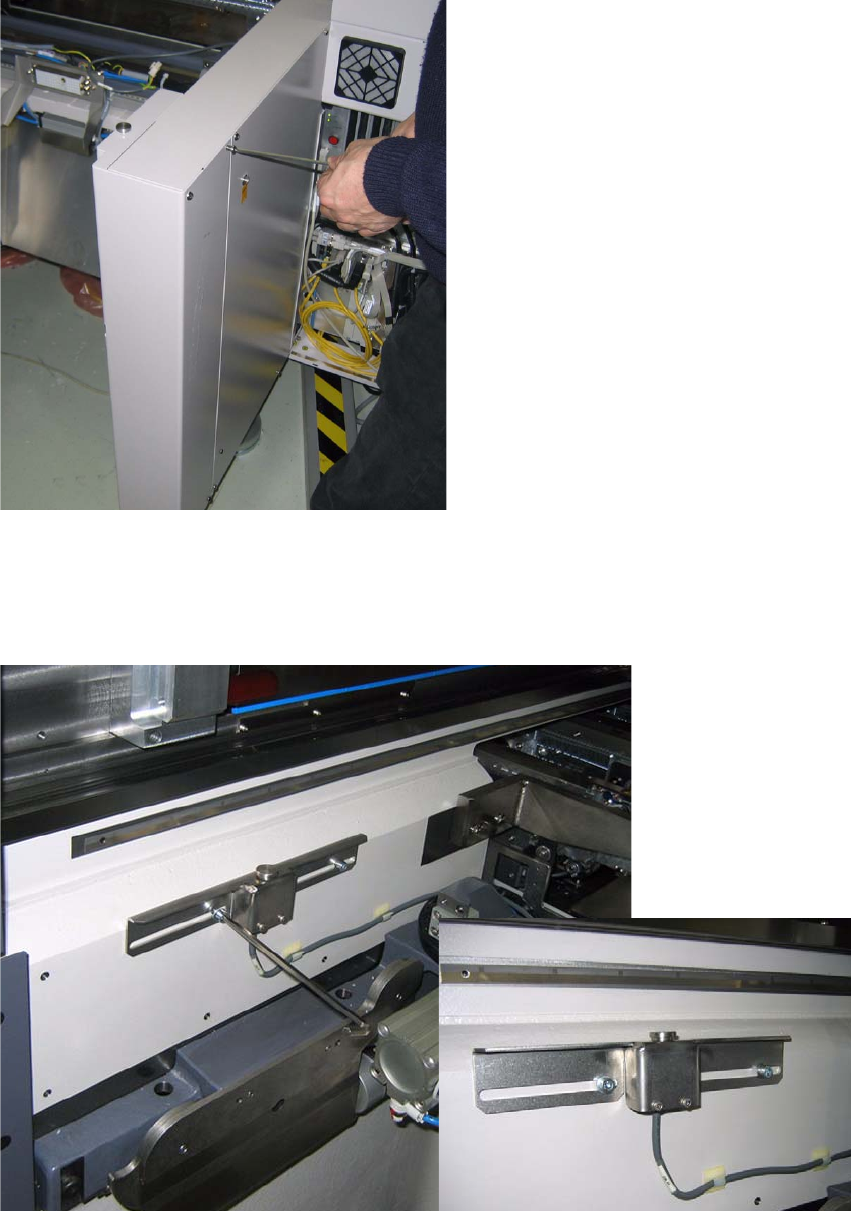

: Reassemble the machinery facing.
2
2
: Screw the left switch to the machine frame
Secure the cable with cable clips.
2
