Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
64

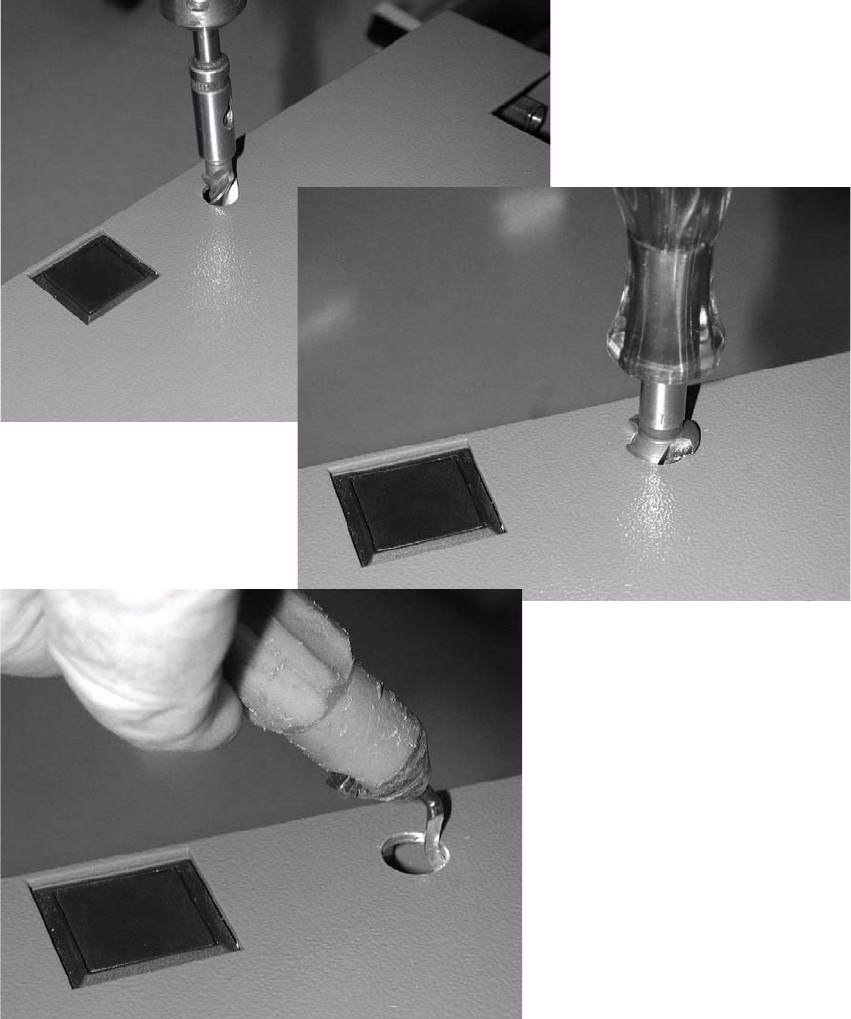

: Drill 1 hole with a 5 mm diameter metal drill bit.
2
: Place the counterbore in the drilled hole and thus drill a larger hole (see photograph).
: Carefully deburr the drill hole inside and out.
2
2
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
65

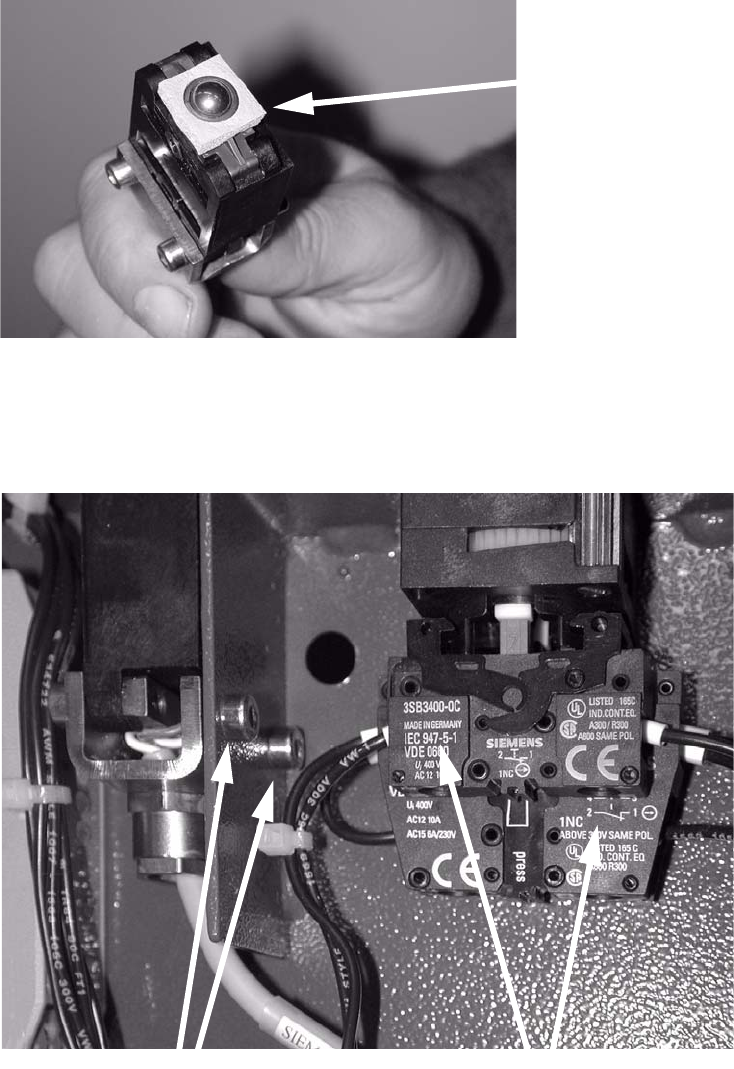

: Before installing, place the seal around the index ball.
2
2
: Insert the switch and screw it in place.
Clip the switch on the right in order to tighten the bottom screw.
2
2
2
Seal
Tighten 2 screws
Clip these two switches
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
66

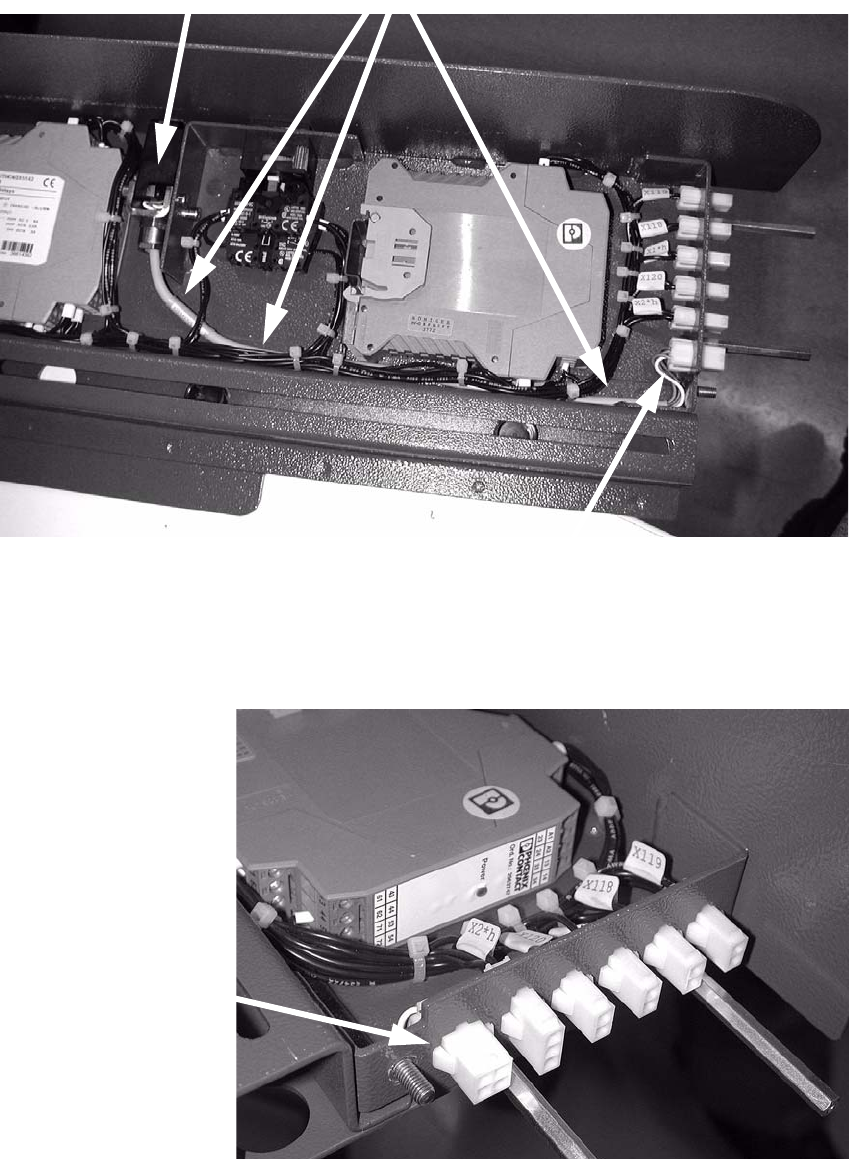

: Run the switch connecting cable towards the push-on terminal strip.
2
: Plug the connector into the free slot with the locating tab pointing upwards (see top and bottom
photographs).
2
Switch
Plug connectors
Connecting cable
Insert the connector here
