Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
60

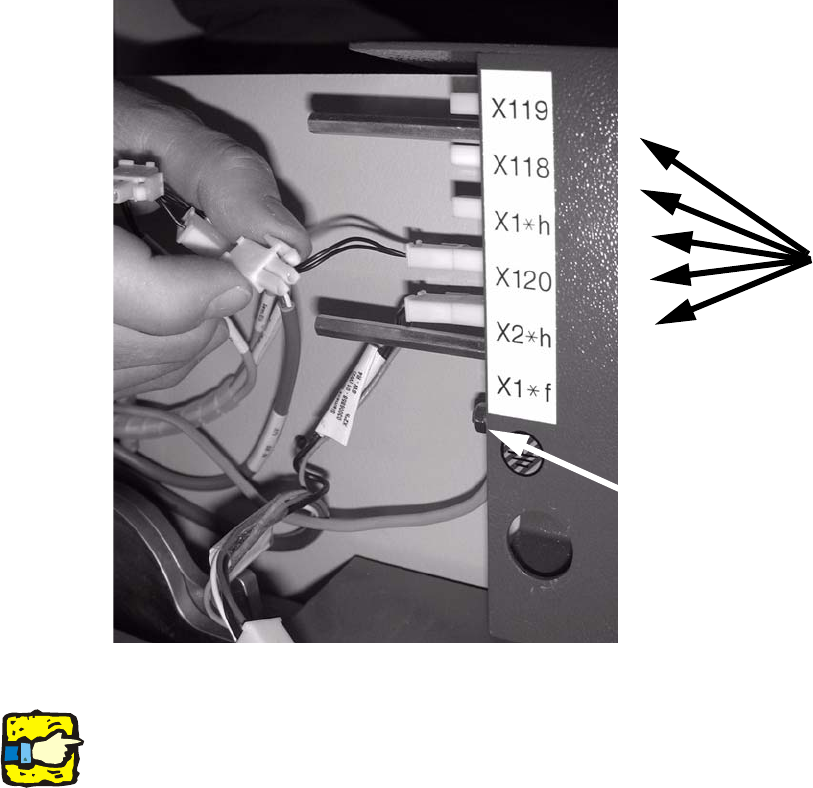

: Unplug the connectors and unscrew the grounding.
2
2
2
The jumper on the connector for the feeder cover flap is connected at the cables to be removed.2
2
2
2
2
2
2
2
2
2
2
2
Grounding
5 connectors
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
61

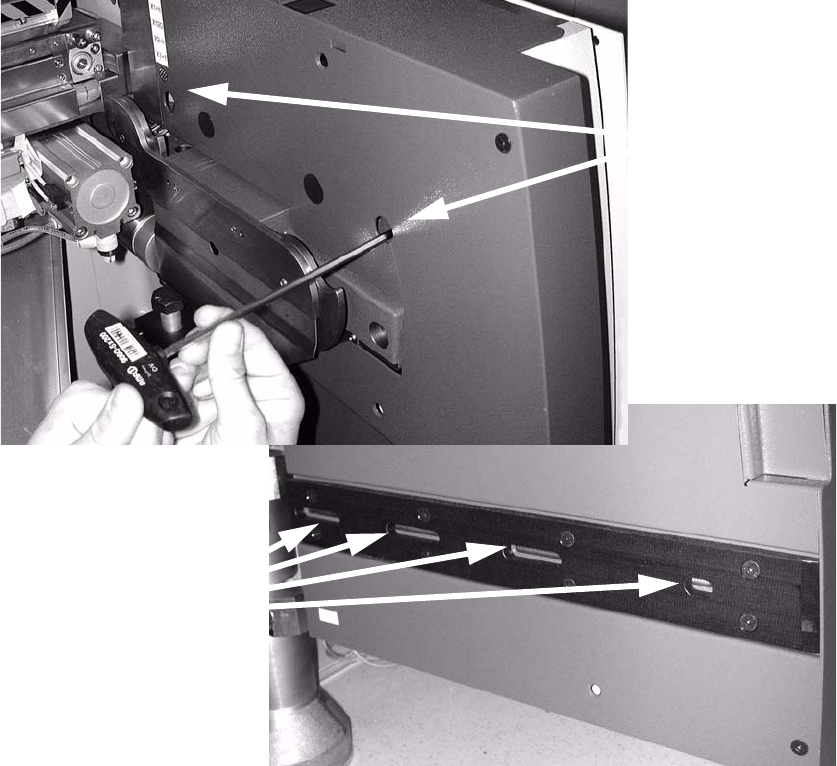

: Loosen the two top screws and four bottom screws on the outer panel of the component pull-
in device.
2
2
: Pull the panel forward to remove and set it down on the inside.
This will expose the electrical components in the panel.
2
2
2
2
2
2
2
2 screws at the top
4 screws at the bottom
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
62

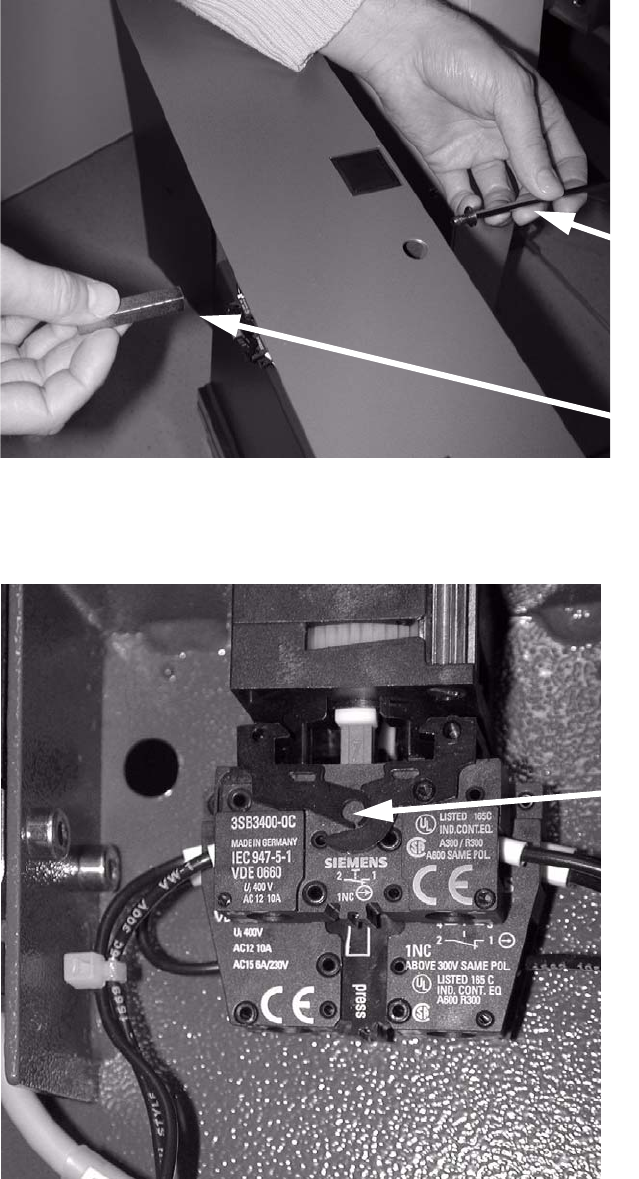

: Unscrew any bolts from the panel so that you can attach the drilling gauge.
2
2
: Unclip these two switches.
2
Bolts
Screw
Two switches
