Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3 05/2009 Edition 73 : Before installing, place the seal around the index ball. 2 2 : Fit the switch for the feeder cover flap in the cover . 2 2 :…
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
72
: Drill the 3 holes with a 5 mm diameter metal drill bit.
: Place the counterbore in the drilled hole and thus drill a larger hole (see photograph).
: Carefully deburr the drill hole inside and out.
2
2
2
2
2
2
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
73

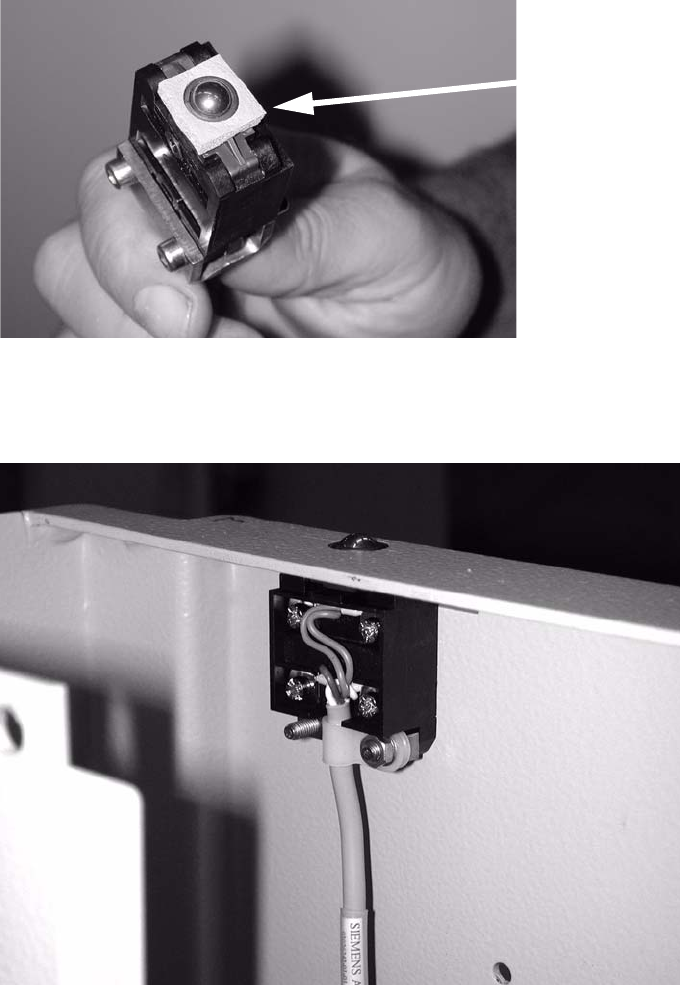

: Before installing, place the seal around the index ball.
2
2
: Fit the switch for the feeder cover flap in the cover.
2
2
: Fix the side wall in place once more with the four screws on the outside and one on the inside.
Be careful not to damage the connecting cable.
2
2
Seal
Assembly instructions Feeder cover flap, SIPLACE HF-series / X-series / D3
05/2009 Edition
74
: Run the connecting cable for the feeder cover flap switch behind the tape cutter / nozzle
changer.
There, the plug is already in the cable duct.
2
2
2
2
2
2
Run the cable
Plug
