3OM-1751 2-44 1303-001 2.5.10 "Nozzle Incln" T ab Sheet [1] F3B43 [1] Head 1 and Head 2 theta X [deg], theta Y [deg] These offsets are used to correct the deviations in the X and Y directions that will be cause…
3OM-1751
2-431303-001
2.5.9 "Head Incln" Tab Sheet
[1] [2] [3]
F3B42
[1] HL Deg. Leaning Angle
theta X [deg], theta Y [deg]
The set parameter is used to correct the deviations in the X and Y direction
that will be caused while the HL-axis is moving down if the axis is tilted.
[2] DD Deg. Leaning Angle
theta X [deg], theta Y [deg]
The set parameter is used to correct the deviations in the X and Y direction
that will be caused while the HL-axis is moving down if the DD-axis is
tilted.
[3] Optical Axis Degree Leaning Angle [Ang]
The set parameter is used to correct the angle of the component recognition
camera shot.
2.5 "Head" Window
Graphic
Development
3OM-1751
2-441303-001
2.5.10 "Nozzle Incln" Tab Sheet
[1]
F3B43
[1] Head 1 and Head 2
theta X [deg], theta Y [deg]
These offsets are used to correct the deviations in the X and Y directions that
will be caused due to the inclination of the nozzle shaft while the NL-axis is
moving down.
2.5 "Head" Window
Graphic
Development
3OM-1751
2-45
2.5 "Head" Window
1303-001

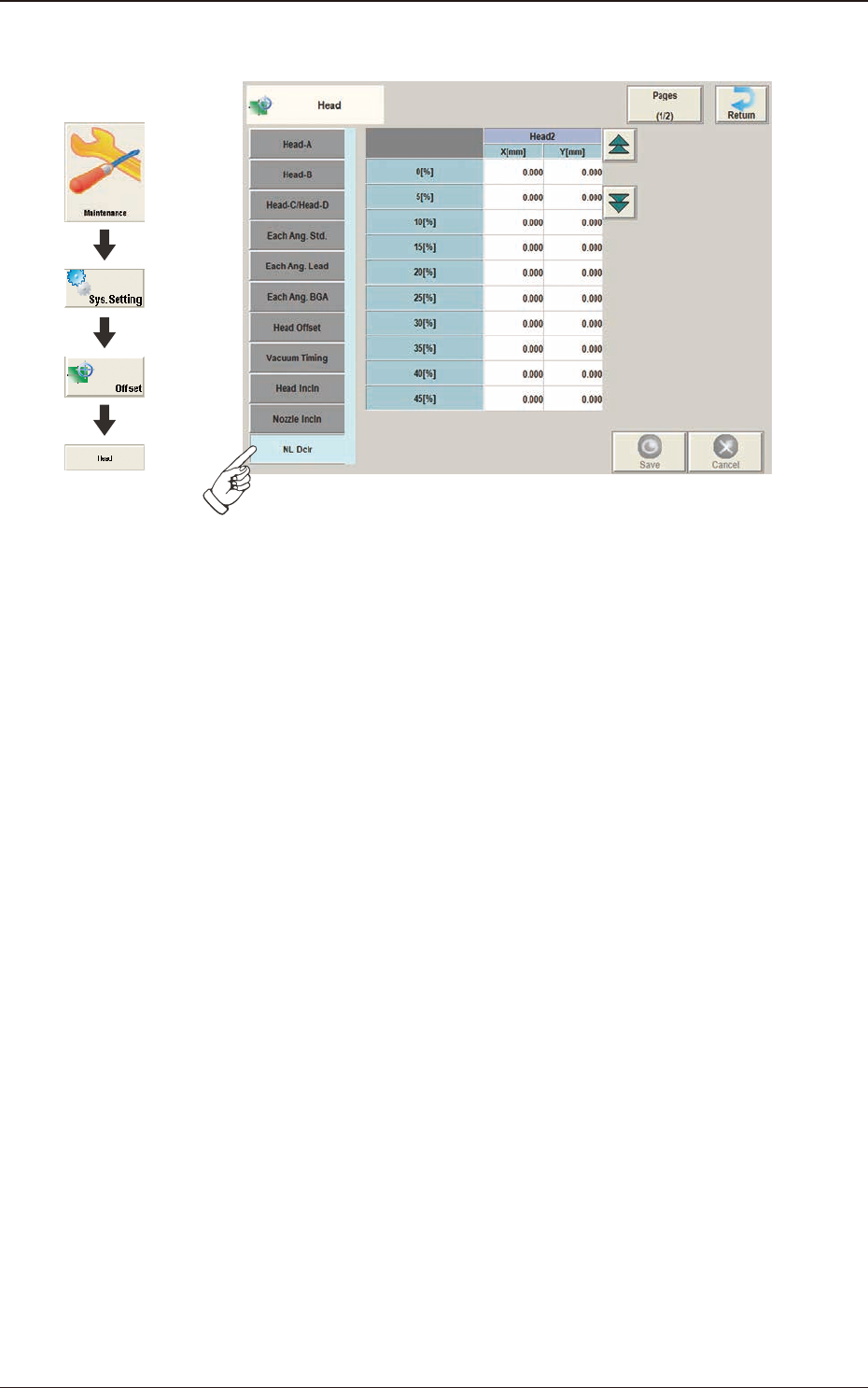

2.5.11 "NL Dclr" Tab Sheet
F3B44
Graphic
