3.4 Overview of the modules
3
3

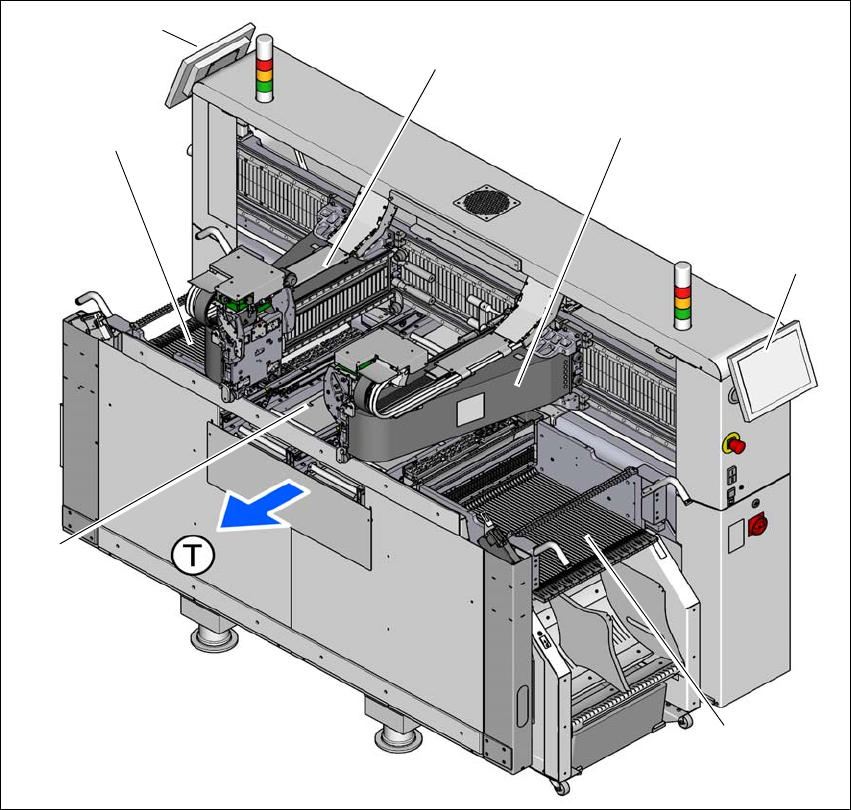

Fig. 3.4 - 1 Component overview - example of SIPLACE TX2i
(1) Location 1 with component trolley, tape cutter, empty tape duct
(2) Monitor at location 1
(3) Gantry at location 1 (placement head, depending on configuration)
(4) Gantry at location 2 (placement head, depending on configuration)
(5) Monitor at location 2
(6) Location 2 with component trolley, tape cutter, empty tape duct
(7) Board conveyor
(T) Direction of PCB transport
(1)
(3)
(4)
(6)
(2)
(7)
(5)
User manual SIPLACE TX V2 3 Technical data and assemblies
From software version 711.1 04/2018 3.5 Placement head
107
3.5 Placement head
3.5.1 SIPLACE SpeedStar C&P20 P2
The SIPLACE TX uses the SIPLACE SpeedStar C&P20 P2 for top placement performance.
3
CAUTION
Always take hold of the handle to push the placement head
The placement head may only be moved by pushing manually against the handle provid-
ed.
3 Technical data and assemblies User manual SIPLACE TX V2
3.5 Placement head From software version 711.1 04/2018
108
3.5.1.1 Overview
3
3

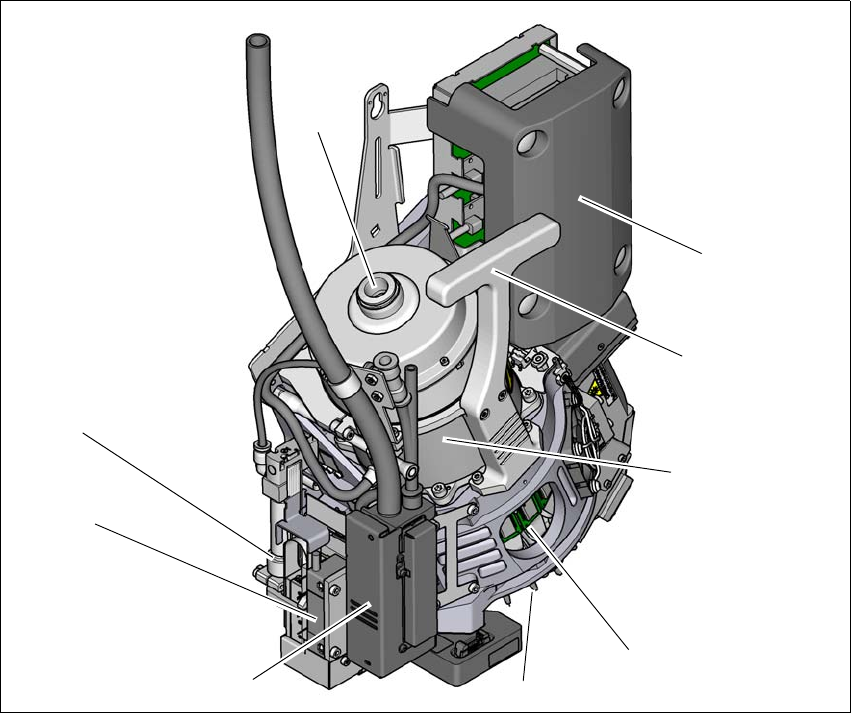

Fig. 3.5 - 1 SIPLACE SpeedStar - overview
(1) Connection for the holding circuit of the vacuum pump
(2) "Intermediate distribution board" (under the cover)
(3) Handle
(4) Star motor
(5) DP drive
(6) Nozzle
(7) Pressure control valve
(8) Z motor (linear motor)
(9) Return cylinder
(5)
(1)
(7)
(2)
(3)
(4)
(6)
(8)
(9)
