3.6 Gantry system

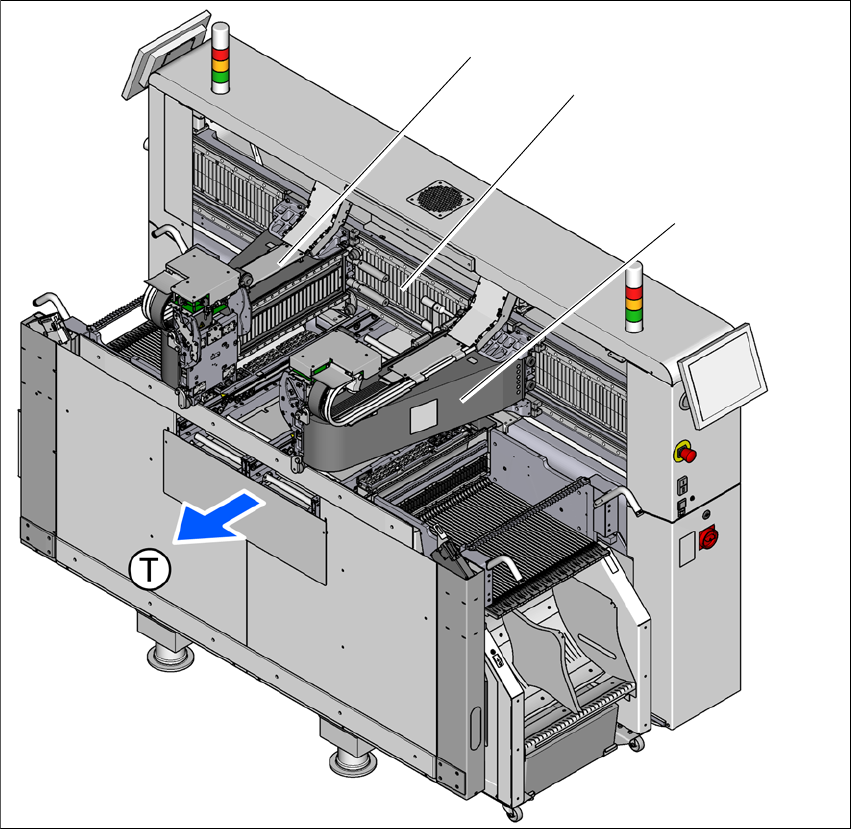

3.6.1 Position of gantries (SIPLACE TX2 /TX2i)
3
Fig. 3.6 - 1 Position of gantries - example of SIPLACE TX2i - location 2
(1) Gantry 1
(2) Y axis, gantry 1 and gantry 2
(3) Gantry 2
(T) Direction of PCB transport
(3)
(2)
(1)
User manual SIPLACE TX V2 3 Technical data and assemblies
From software version 711.1 04/2018 3.6 Gantry system
125

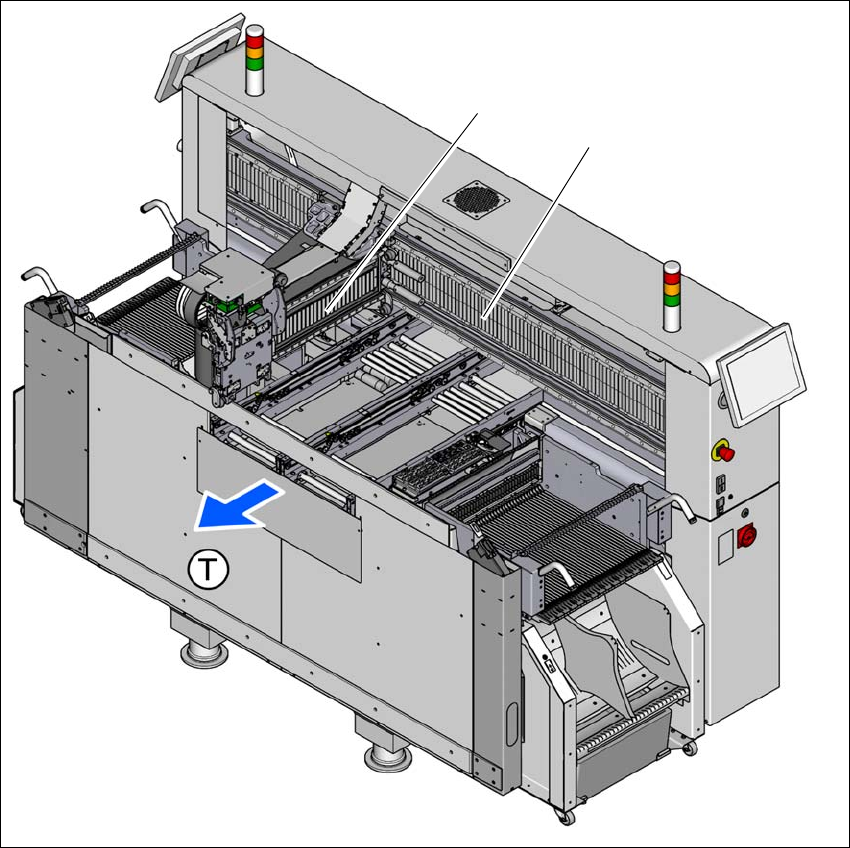

3.6.2 Position of gantries (SIPLACE TX1)
3
Fig. 3.6 - 2 Position of gantries in SIPLACE TX1 - location 2
(1) Gantry 1
(2) Y axis, gantry 1
(T) Direction of PCB transport
(1)
(2)
3 Technical data and assemblies User manual SIPLACE TX V2
3.6 Gantry system From software version 711.1 04/2018
126

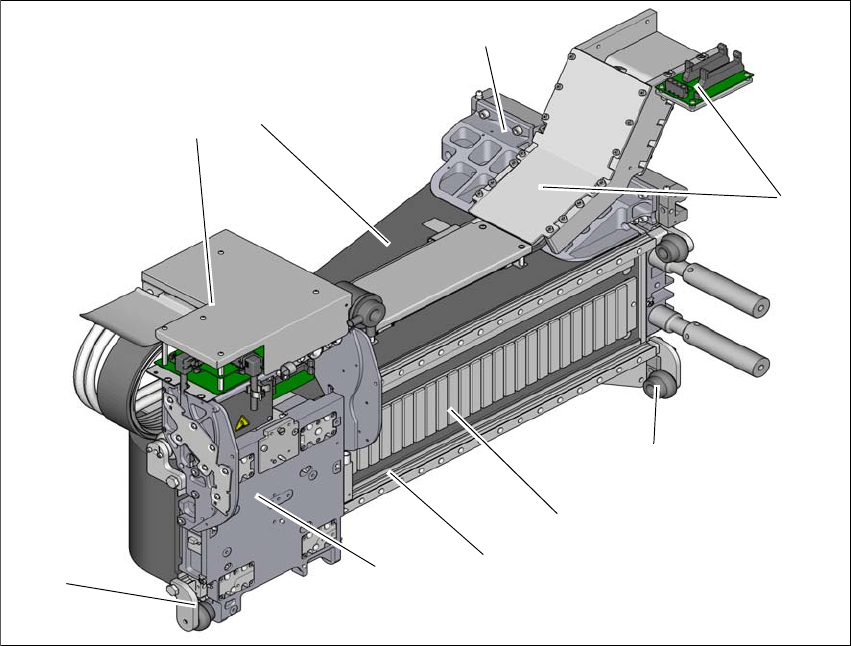

3.6.3 Gantry structure
3
Fig. 3.6 - 3 Gantry structure - view of head mount
(1) Head boards
(2) Gantry arm
(3) Y linear motor with fixed bearing (primary part)
(4) Mount for conversion board and trailing cable holder
(5) End position bumper (4x)
(6) Guidance system with permanent magnet (secondary part of the X linear motor)
(7) Length measurement system
(8) Head mount with X axis linear motor (primary part)
(4)
(3)
(1)
(5)
(2)
(6)
(7)
(5)
(8)
