2 Operational safety User manual SIPLACE TX V2
2.2 Warning labels From software version 711.1 04/2018
56

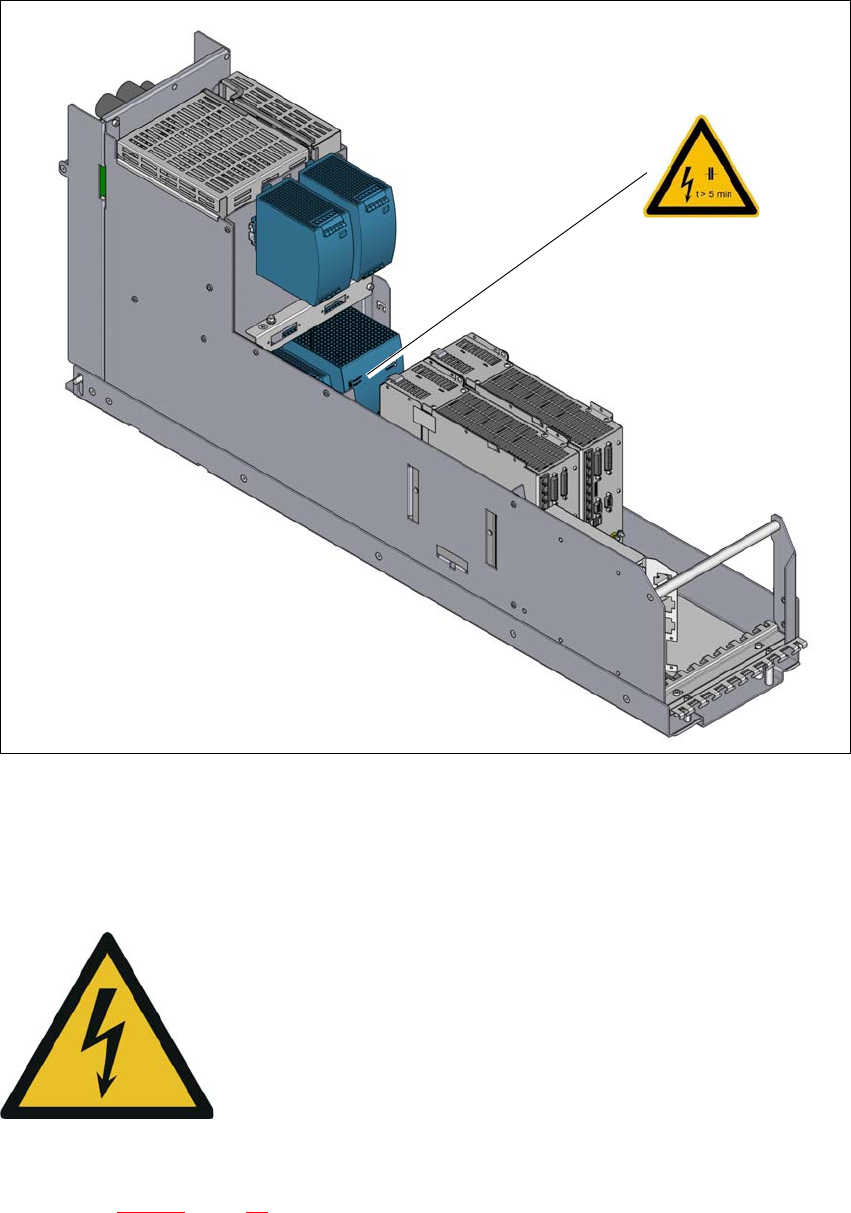

Fig. 2.2 - 14 Warning labels on the power supply unit (view from back)
– W 220 on the power supply AC/DC converters (160 V DC /300 V DC).
2.2.10.1 Warning label W 012
2
W 012 in fig. 2.2 - 13, page 55, item no. 03009345-01
(Quantity per power supply: 3).
W 220
Dangerous voltages
The labeled parts are still live when the main power switch is off
and the mains plug has been disconnected.
Disconnect the placement machine from the mains before
opening the cover.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User manual SIPLACE TX V2 2 Operational safety
From software version 711.1 04/2018 2.2 Warning labels
57
2.2.10.2 Warning labels W 220
2
W 220 in fig. 2.2 - 13, page 55 and 2.2 - 14, page 56, item no. 03114591-01
(Quantity per power supply: 3).
2.2.10.3 High temperatures on the Gantry Control Unit (MGCU)
1 in fig. 2.2 - 13, page 55, temperature label, item no. 03031926-01
(Quantity per power supply: 2).
2
2
Dangerous mains voltage
Switch off the main power switch and wait 5 minutes until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
Risk of burns from high temperatures
The housing of the Gantry Control Unit (MGCU) can become hot during con-
tinuous operation.
Take care when touching the Gantry Control Unit (MGCU).
2 Operational safety User manual SIPLACE TX V2
2.2 Warning labels From software version 711.1 04/2018
58
2.2.11 High temperatures on the Modular Head Control Unit (MHCU)
1 in fig. 2.2 - 15, temperature label, item no. 03031926-01
(Quantity per placement machine: 2).
2

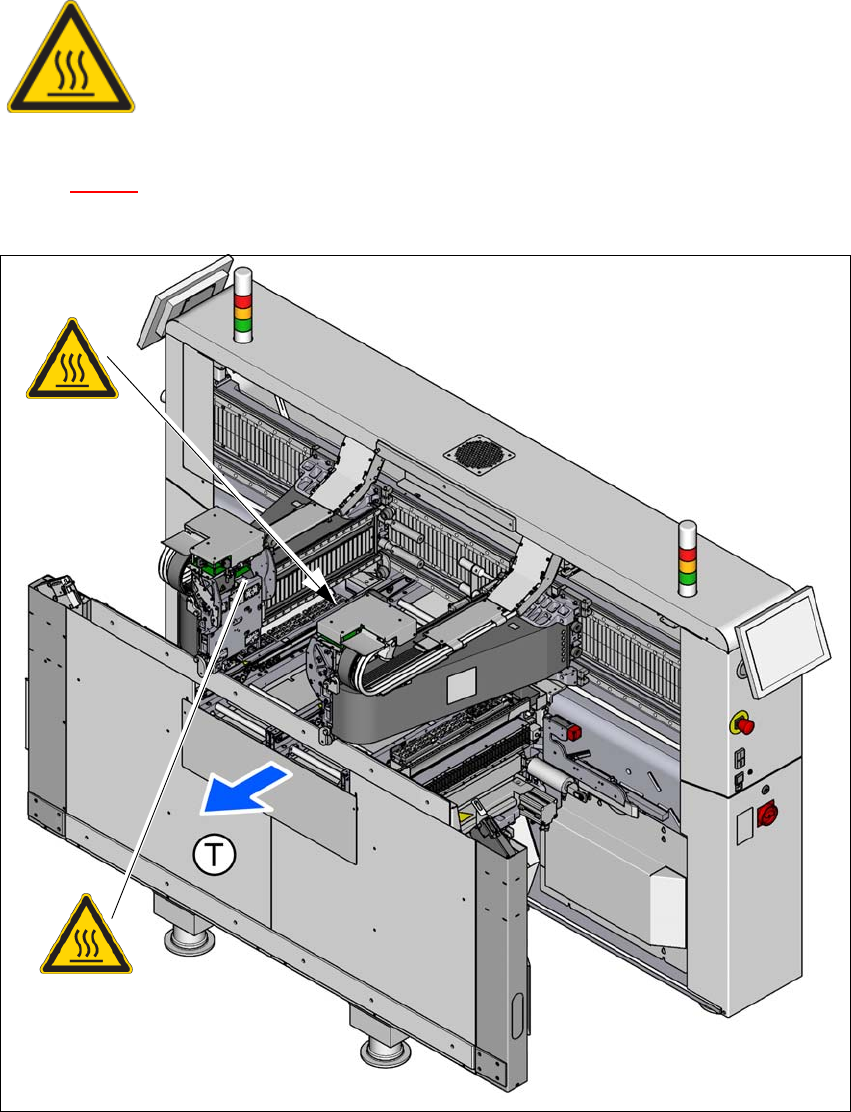

Fig. 2.2 - 15 Temperature label on the Modular Head Control Unit (MHCU) - (example of SIPLACE TX2 V2 shown)
2
Risk of burns from high temperatures
The housing of the Modular Head Control Unit (MHCU) can become hot
during continuous operation.
Take care when touching the Modular Head Control Unit (MHCU).
(1)
(1)
