User manual SIPLACE TX V2 3 Technical data and assemblies
From software version 711.1 04/2018 3.5 Placement head
119
3.5.4.6 MultiStar in mixed mode with complete rotation
The MultiStar processes small to medium sized components in this mode.
3

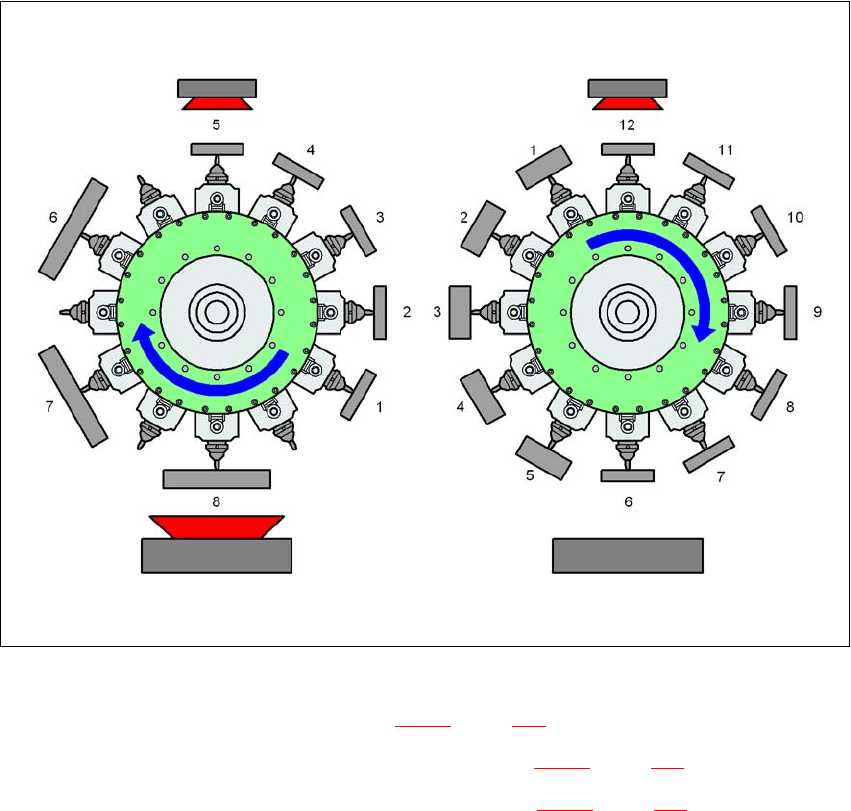

Fig. 3.5 - 8 MultiStar - mixed mode
K_BE Small component (see table 3.5 - 1, page 116)
M_BE_1 Medium sized component, type 1 (see table 3.5 - 1
, page 116)
M_BE_2 Medium sized component, type 2 (see table 3.5 - 1
, page 116)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
1 ... 12 Order of components taken up
3
Neighboring segments of the CPP head are not able to take up components of type M_BE_2 if the
diagonal length of the medium sized component, type 2 (M_BE_2) is longer than 39.8 mm.
Type 30 Type 30
Type 33 Type 33
K_BE
M_BE_2
M_BE_1
K_BE
3 Technical data and assemblies User manual SIPLACE TX V2
3.5 Placement head From software version 711.1 04/2018
120
3.5.4.7 MultiStar in advanced Pick&Place mode with limited rotation
The MultiStar can place the entire component spectrum from 01005 to 50 mm x 40 mm in this
mode. The large components are picked up last, optically centered and then placed as first com-
ponents.
3

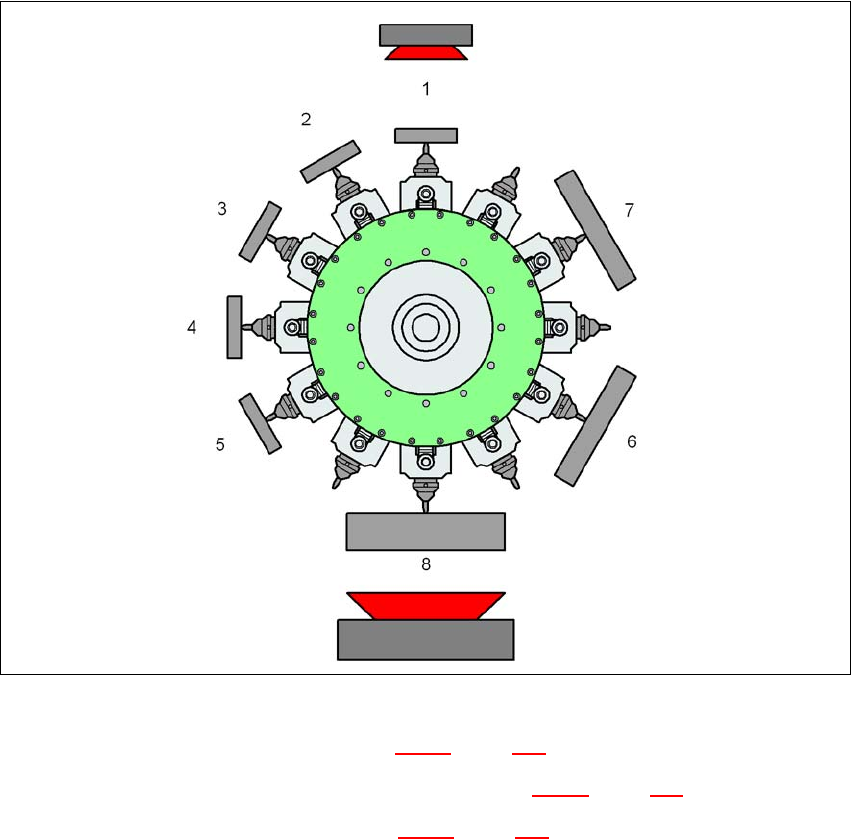

Fig. 3.5 - 9 MultiStar - mixed mode
K_BE Small component (see table 3.5 - 1, page 116)
M_BE_2 Medium sized component, type 2 (see table 3.5 - 1
, page 116)
G_BE Large component (see table 3.5 - 1
, page 116)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
3
Neighboring segments of the CPP head are not able to take up components of types M_BE_2 and
G_BE if the diagonal length of these components is longer than 39.8 mm.
Type 30
K_BE
G_BE
Type 33
M_BE_2
User manual SIPLACE TX V2 3 Technical data and assemblies
From software version 711.1 04/2018 3.5 Placement head
121
3.5.4.8 Technical data for SIPLACE MultiStar (CPP) on SIPLACE TX
3
SIPLACE MultiStar (CPP)
with component camera
type 30
With component camera
type 45
with component camera
type 33
(stationary camera)
Component range
*a
01005 to 27 mm x 27 mm 01005 to 15 mm x 15 mm 0402 to 50 mm x 40 mm
*b
Component spec.
Max height
*c
Max. height
*d
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
4.0 mm
*e
/ 6.0 mm
8.5 mm
250 µm
100 µm
*f
/ 200 µm
*g
250 µm
e
/ 350 µm
140 µm
e
/ 200 µm
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
6.0 mm
8.5 mm
250 µm / 120 µm
*h
50 µm
140 µm
70 µm
0.11 mm x 0.11 mm
15 mm x 15 mm
4 g
11.5 mm
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
50 mm x 40 mm
8 g
Programmable set-down force 1.0 - 10 N
Nozzle types 20xx, 28xx 20xx, 28xx 20xx, 28xx
X/Y accuracy
*i
± 40 µm/3σ ± 40 µm/3σ ± 34 µm/3σ
Angular accuracy ± 0.20° / 3σ
*j
, ± 0.38° /
3σ
*k
± 0.25° / 4σ
h
, ± 0.50° / 4σ
i
± 0.38° / 3σ ± 0.14° / 3σ
± 0.18° / 4σ
Illumination level 5 5 6
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards,
the component packaging tolerances and the component tolerances.
*)b A diagonal of 69 mm is possible during multiple measurements (e.g. 64 mm x 10 mm).
*)c CPP head: in low installation position (stationary component camera not possible).
*)d CPP head: in high installation position
*)e Only 4 mm possible for SIPLACE TX2i.
*)f For components < 18 mm x 18 mm
*)g For components ≥ 18 mm x18 mm
*)h Only possible for components which are within the camera focal area of ± 1.3 mm.
*)i The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
*)j Component dimensions between 6 mm x 6 mm and 27 mm x 27 mm.
*)k Component dimensions smaller than 6 mm x 6 mm.
