2 Operational safety User manual SIPLACE TX V2
2.2 Warning labels From software version 711.1 04/2018
60
2.2.13 Warning labels on the PCB conveyor
2

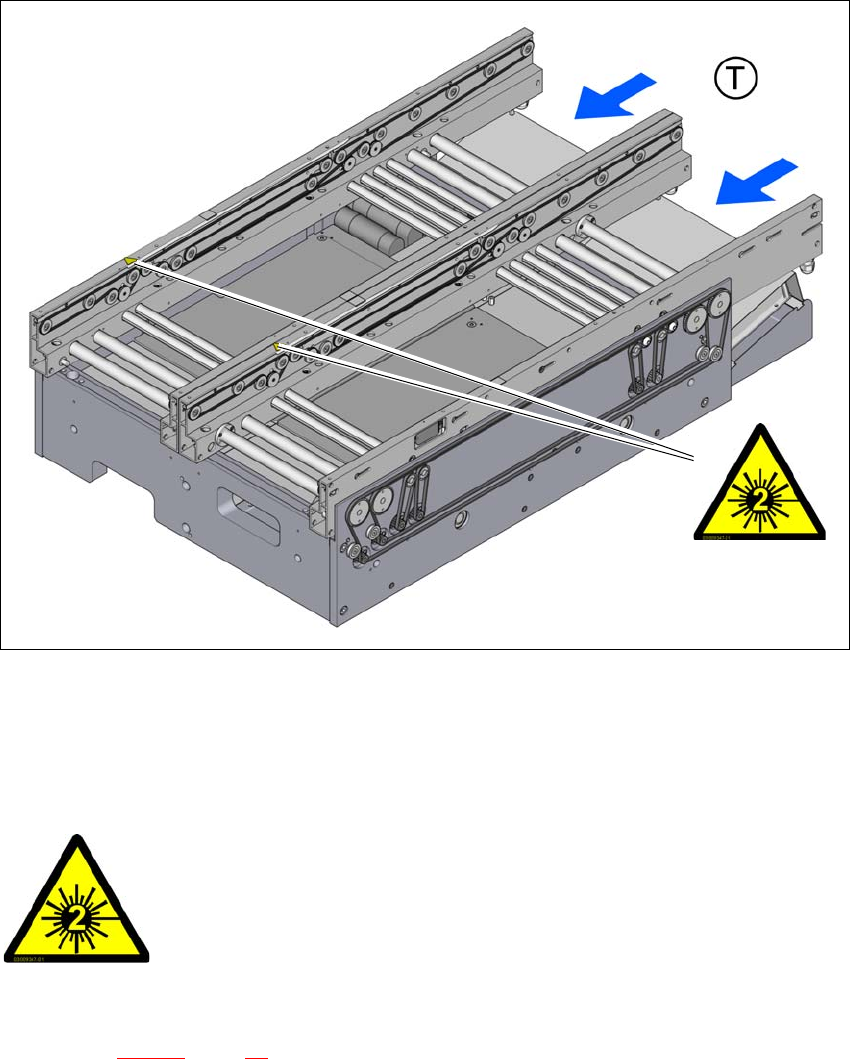

Fig. 2.2 - 17 Warning labels on the PCB conveyor
Item W 208 on the conveyor side for the laser light barriers
2.2.13.1 Warning label W 208
2
W 208 in fig. 2.2 - 17, page 60, item no. 03009347-01
(Quantity on the PCB conveyor: 2)
W 208
0
LASER RADIATION
Risk class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
User manual SIPLACE TX V2 2 Operational safety
From software version 711.1 04/2018 2.3 Classification of camera systems
61
2.3 Classification of camera systems
2.3.1 Classification of placement machine
2
2.3.1.1 Laser classification
The following modules are assigned to risk class 2:
2
The ready-for-operation placement machine is assigned to the risk class.
The risk classes are determined according to IEC 60825-1:2014.
Assembly Data
Component sensor on SpeedStar Maximum optical output power: < 1 mW
Wavelength: 635 nm
Component sensor on MultiStar Maximum optical output power: < 1 mW
Wavelength: 635 nm
Laser light barrier on PCB conveyor Maximum optical output power: < 1 mW
Wavelength: 650 nm
2 Operational safety User manual SIPLACE TX V2
2.3 Classification of camera systems From software version 711.1 04/2018
62
2.3.2 Classification of the camera systems
2.3.2.1 Camera types with bright LEDs - risk group 1
The bright LEDs are fitted in the following cameras. These are classified as risk group 1, according
to IEC 62741:.
– Component camera type 23, 30, 41 and 45
– Stationary component camera type 25 and 33
– PCB camera, type 34
2
2.3.2.2 Camera types with blue LEDs - risk group 2
The ultra-bright blue LEDs are fitted in the following cameras. These are classified as risk group
2, according to IEC 62741:.
– Component camera, type 48
2
2
PLEASE NOTE
Risk group 1
Do not look into the beam of the ready-for-operation camera!
0
Risk group 2
The beam from cameras with ultra-bright blue LEDs can be a haz-
ard.
Do not look into the beam of the ready-for-operation camera!
