5 Tasks at the placement machine User manual SIPLACE TX V2 5.10 Setting up the feeder modules From software version 711.1 04/2018 242 Pull the cover foil at the side of the pick-up window forward and out undernea th th…
User manual SIPLACE TX V2 5 Tasks at the placement machine
From software version 711.1 04/2018 5.10 Setting up the feeder modules
241
5

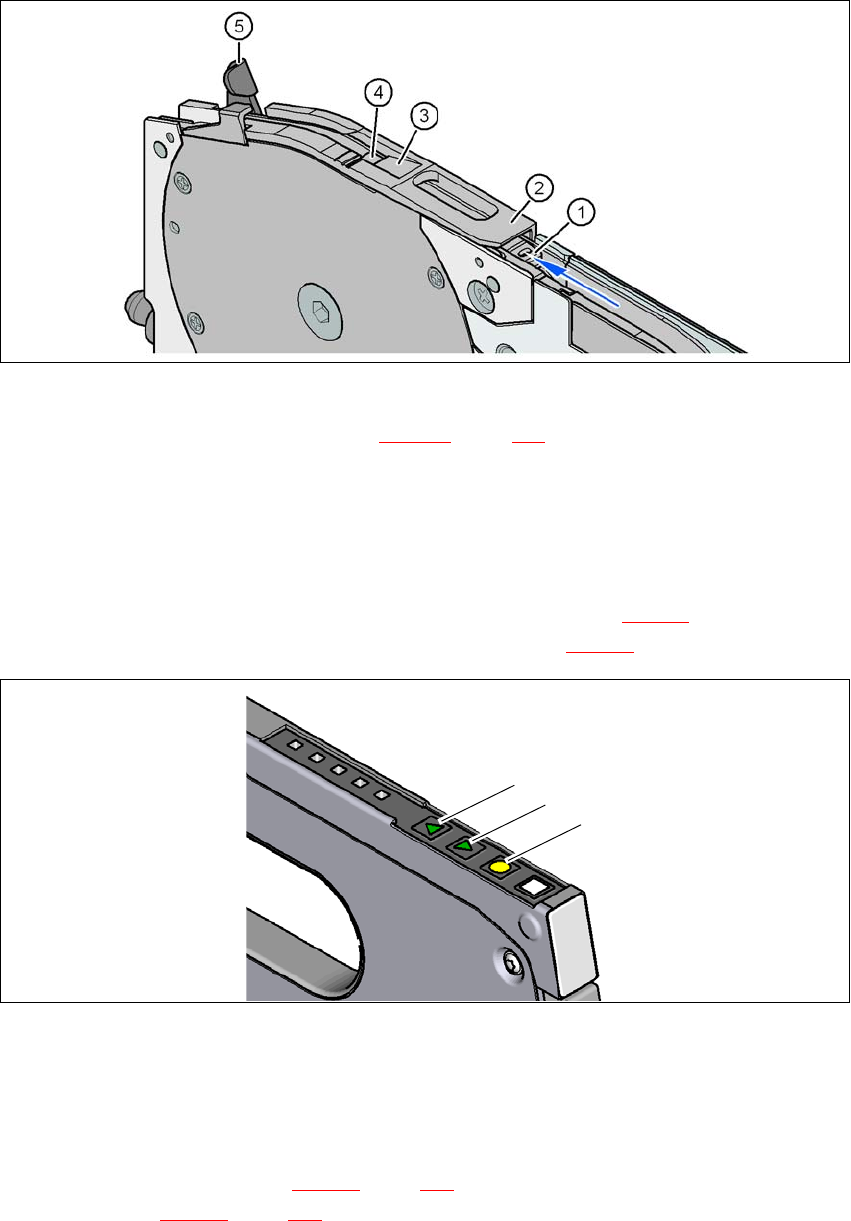

Fig. 5.10 - 5 Pickup window on the tape feeder module
(1) Tape support, removable (see section 5.10.4.4, page 243)
(2) Pickup window
(3) Removal edge for the cover foil
(4) Component pickup area
(5) Lever for raising and latching the pick-up window
On the operator panel, press the FORWARD button (item 1 in fig. 5.10 - 6) until the bend of
the cover foil is in the component pickup area (item 4 in fig. 5.10 - 5
).
5
Fig. 5.10 - 6 Operating panel with LED display
(1) FORWARD button for moving the component tape forward
(2) BACK button for moving the component tape back
(3) FOIL button for tensioning the cover foil
Push the lever (item 5 in fig. 5.10 - 5, page 241) forward in order to raise the pickup window
(item 2 in fig. 5.10 - 5
, page 241) into the first latching position.
(1)
(2)
(3)
5 Tasks at the placement machine User manual SIPLACE TX V2
5.10 Setting up the feeder modules From software version 711.1 04/2018
242
Pull the cover foil at the side of the pick-up window forward and out underneath the pick-up
window.
Fold the cover foil back until it lies against the pull-off edge (item 3 in fig. 5.10 - 5, page 241).
5
Push the lever (item 5 in fig. 5.10 - 5, page 241) back to lower the pickup window.
Guide the cover foil over the cover foil rocker (item 2 in fig. 5.10 - 7) until it reaches the foil
packing wheels (item 1 in fig. 5.10 - 7
).
5

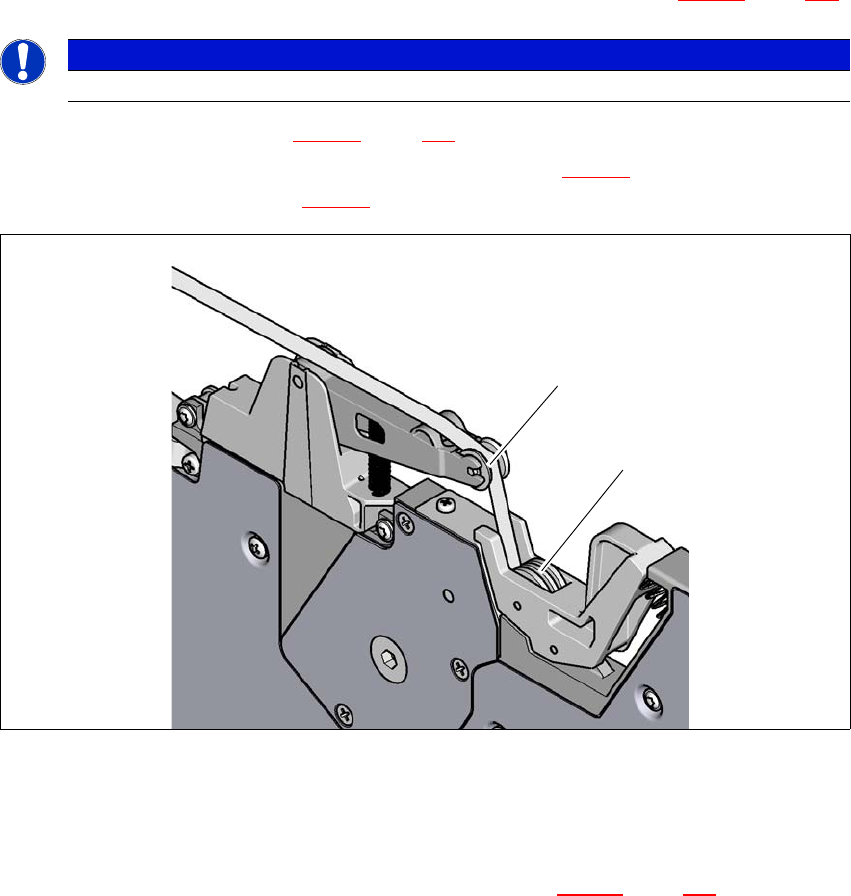

Fig. 5.10 - 7 Guiding the cover foil to the foil packing wheels
(1) Cover foil packing wheels
(2) Cover foil
5
On the operator panel, press the FOIL button (item 3 in fig. 5.10 - 6, page 241) until the cover
foil is tensioned. The cover foil rocker points down and stops the drive motor.
Cut the component tape flush with the front end of the feeder module.
PLEASE NOTE
Do not lower the pick-up window until the cover foil is lying against the pull-off edge.
(1)
(2)
User manual SIPLACE TX V2 5 Tasks at the placement machine
From software version 711.1 04/2018 5.10 Setting up the feeder modules
243
5.10.4.4 Splice sensors
Splice sensors can be retrofitted on the SIPLACE SmartFeeder.
SIPLACE SmartFeeder with a splice sensor already installed can also be supplied (see section
3.8
, from page 137).
5.10.5 Configuring components on the SIPLACE SmartFeeder
The operation and setting up is described in the SIPLACE SmartFeeder X /Xi job guides.
