User manual SIPLACE TX V2 3 Technical data and assemblies
From software version 711.1 04/2018 3.8 SIPLACE tape feeder modules for SIPLACE TX
139
3.8.1.4 Design of the SIPLACE SmartFeeder Xi
3

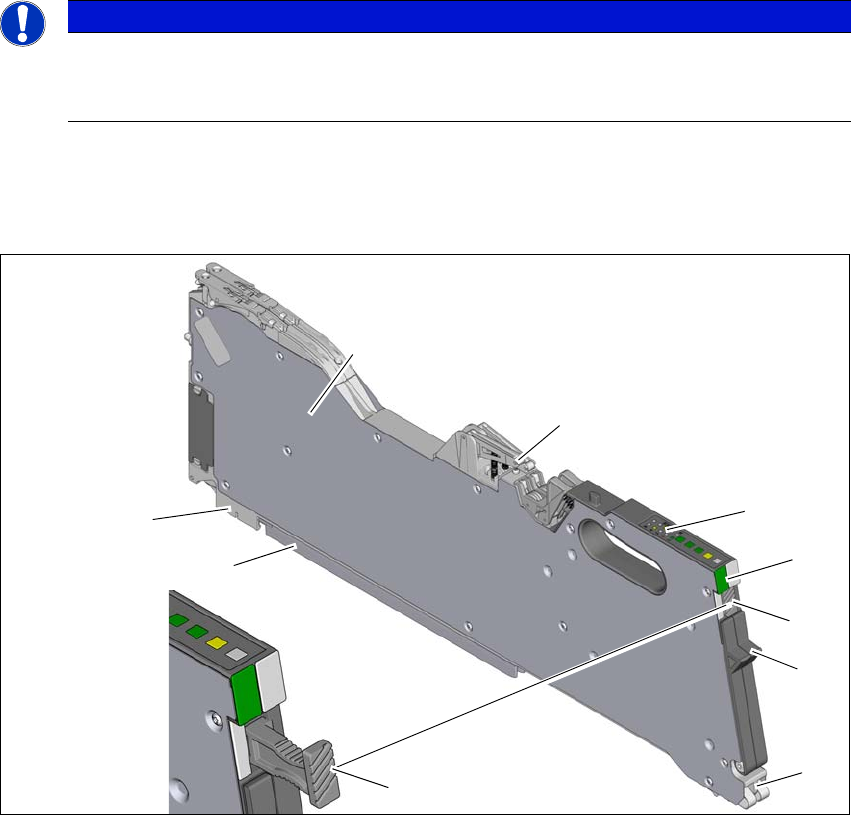

The following diagram shows the design of the SIPLACE SmartFeeder Xi, using the example of
the SIPLACE SmartFeeder 2 x 8 mm Xi. The SIPLACE SmartFeeder Xi can be recognized by its
slanted and grooved surface on the removal handle.
3
Fig. 3.8 - 2 SIPLACE SmartFeeder 2 x 8 mm Xi
(1) Entry to the tape guide channel with tape spring
(2) Flap on cover foil container
(3) Removal handle, docked (grooved surface)
(4) Status display
(5) Operating panel - LED display
(6) Foil rocker
(7) Tape guide channel outlet
(8) Front slider guide
(9) Back slider guide
PLEASE NOTE
Maximum speed with SIPLACE SmartFeeder Xi.
The SpeedStar C&P20 P can only reach maximum speed in conjunction with the SI-
PLACE SmartFeeder Xi.
(1)
(2)
(3)
(4)
(5)
(6)
(8)
(9)
(7)
(3)
3 Technical data and assemblies User manual SIPLACE TX V2
3.8 SIPLACE tape feeder modules for SIPLACE TX From software version 711.1 04/2018
140
3.8.1.5 Technical data for SIPLACE tape feeder modules
In general, the SIPLACE tape feeder modules have a length of approx. 587 mm and a height of
approx. 200 mm. The technical data are listed in the following table.
The maximum height of the interference contours above the upper edge of the tape pocket is ≤ 3
mm. As the SIPLACE tape feeder modules do not show any flaps projecting upwards and are also
fixed to the changeover tables, the risk of a head crash is reduced to a minimum.
Tape feeder module
*a
Item no. L x H
[mm]
Width
[mm]
Location
occupied
Transport
increment
[mm]
Max. tape
height
[mm]
*b
SIPLACE SmartFeeder 4 mm X 00141368 587x200 10,8 1 1 1,1
With splice sensor
00141388
SIPLACE SmartFeeder 2 x 8 mm X 00141269 587x200 22,6 2 1/2/4/8 3,5
With splice sensor 00141289
SIPLACE SmartFeeder 8 mm X 00141370 587x200 10,8 1 1/2/4/8 3,5
With splice sensor 00141390
SIPLACE SmartFeeder 4 mm Xi
00141478
587x200 10,8 1 1 1,1
With splice sensor 00141498
SIPLACE SmartFeeder 2x8 mm Xi
00141479
587x200 22,6 2 1/2/4/8 3,5
With splice sensor
00141500
SIPLACE SmartFeeder 8 mm Xi
00141480
587x200 10,8 1 1/2/4/8 3,5
With splice sensor
00141500
SIPLACE SmartFeeder 12 mm X 00141371 587x200 22,6 24 - 16
*c
6,5
With splice sensor 00141391
SIPLACE SmartFeeder 16 mm X 00141372 587x200 22,6 2 4 - 20
*c
25
With splice sensor 00141392
SIPLACE SmartFeeder 24 mm X
00141373 587x200 34,4 3 4 - 32
*c
25
With splice sensor
00141393
SIPLACE SmartFeeder 32 mm X
00141374 587x200 46,2 4 4 - 40
*c
25
With splice sensor
00141394
SIPLACE SmartFeeder 44 mm X
00141375 587x200 58,0 5 4 - 52
*c
25
With splice sensor
00141395
SIPLACE SmartFeeder 56 mm X
00141376 587x200 69,8 6 4 - 64
*c
25
With splice sensor 00141396
SIPLACE SmartFeeder 72 mm X --
587x200 81,6 7 4 - 80
*c
25
With splice sensor 00141397
SIPLACE SmartFeeder 88 mm X --
587x200 105,2 9 4 - 96
*c
25
With splice sensor 00141398
SIPLACE SmartFeeder 104mm X --
587x200 128,9 11 4 - 96
*c
25
With splice sensor 00141399
Tape reels Diameter up to 483 mm (19")
Changeover time ≤ 8 s
*)a SIPLACE SmartFeeder 72 mm, 88 mm and 104 mm have not been tested with the SIPLACE TX.
*)b For 8 mm paper tapes, the paper thickness must not exceed 1.6 mm. The length of a component pocket in the direction of
tape travel may not exceed 51 mm.
*)c In 4mm steps
User manual SIPLACE TX V2 3 Technical data and assemblies
From software version 711.1 04/2018 3.8 SIPLACE tape feeder modules for SIPLACE TX
141
3
PLEASE NOTE
SIPLACE X feeder modules suitable for use
The SIPLACE X feeder modules are also suitable for use with the SIPLACE TX. The
technical data are identical to those for the SIPLACE SmartFeeder X or SIPLACE Smart-
Feeder Xi.
