User manual SIPLACE TX V2 6 Station extensions From software version 711.1 04/2018 6.3 PCB barcode scanner 281 6.3 PCB barcode scanner Item no. 00519882- xx Sick Lector 620 2D barcode re ader Item no. 00588108-xx Assembl…
6 Station extensions User manual SIPLACE TX V2
6.2 Reject plate From software version 711.1 04/2018
280
6.2.2 Configuration
If the reject plate has been fitted, it will need to be configured.
6

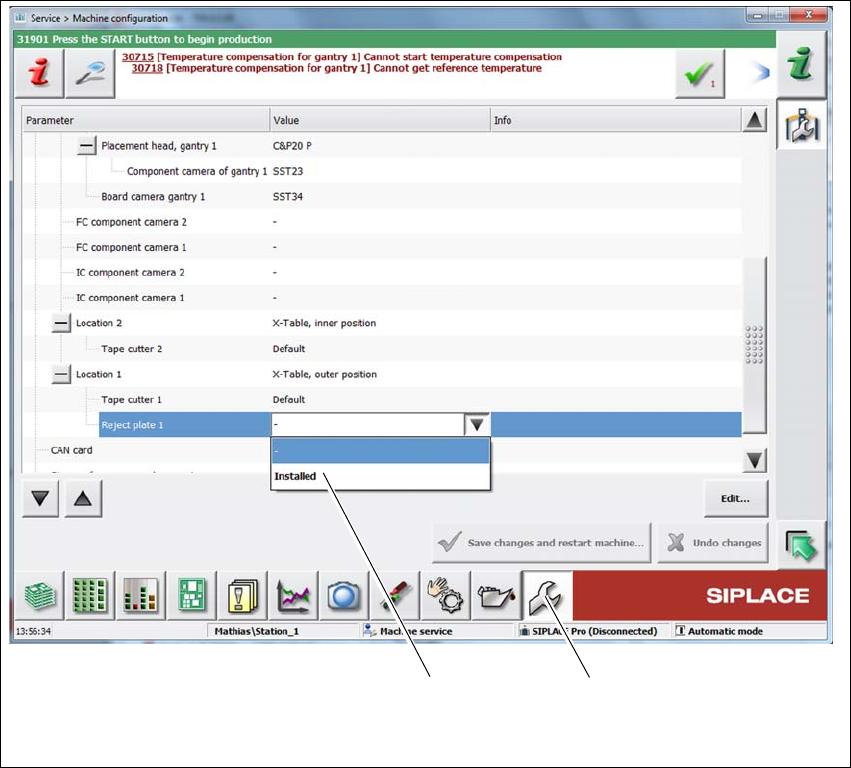

Fig. 6.2 - 3 Configuration - reject plate
Select Service (1)
Select the location and then Reject plate => Installed (2).
(2) (1)
User manual SIPLACE TX V2 6 Station extensions
From software version 711.1 04/2018 6.3 PCB barcode scanner
281
6.3 PCB barcode scanner
Item no. 00519882-xx Sick Lector 620 2D barcode reader
Item no. 00588108-xx Assembly kit for barcode reader 2D SIPLACE TX
6.3.1 Description
The PCB barcode reader is used to automatically record and decode barcodes on PCBs. The
PCB barcode scanners are installed on a special frame on the input side of the first placement
machine. Depending
on the position of the barcode strips, the barcode scanner can be attached in a few simple
steps so that the strips can be read parallel to or across the PCB transport direction.
When using dual conveyors, four board barcode readers can be retrofitted. These can scan both
the top or bottom of the boards on both conveyor lanes.
The barcode reader is available as a 2D board code reader. This code reader processes barcodes
and matrix codes. Matrix code is primarily used when there is
not enough space for barcode labels.
6.4 Input conveyor and output conveyor extensions
Item no. 00588311-xx Input conveyor extension SIPLACE TXV2
Item no. 00588310-xx Output conveyor extension SIPLACE TX
6.4.1 Description
The input conveyor extension is needed for the barcode reader option.
The output conveyor extension is needed for the JTF-ML option. The output conveyor extension
can also be fitted independently of the JTF-ML option.
6 Station extensions User manual SIPLACE TX V2
6.5 SIPLACE Shuttle Extension From software version 711.1 04/2018
282
6.5 SIPLACE Shuttle Extension
Item no. 00588508-xx SIPLACE Shuttle Extension
6.5.1 Description
The Shuttle Extension connects a SIPLACE TX V2 placement machine with another production
device in a placement line, even if this has a different conveyor mode. The Shuttle Extension bal-
ances the positions of fixed trolleys (e.g. fixed side on right to fixed side on outside) or takes over
the distribution from single to dual lane and vice versa.
The Shuttle Extension can be fitted to either the input or output section of the SIPLACE TX V2.
The control system and power supply is provided by the downstream or upstream SIPLACE TX
V2. As part of the placement line, the Shuttle Extension is programmed via SIPLACE Pro.
6
6.5.2 Technical data
PLEASE NOTE
For a detailed description, refer to the
"Shuttle Extension Assembly Instructions and User Manual " [item no. 00198271-xx]
Shuttle extension dimensions
Length
440 mm
Width
680 mm
Height at a conveyor height of 950 mm
1163 mm
Weight of Shuttle Extension
80 kg
Board thickness
0.3 mm to 4.5 mm
Board width
Single conveyor
45 mm to 460 mm
Dual conveyor
45 mm to 260 mm
Board length
50 mm to 375 mm
Board weight
Max. 2 kg
