User manual SIPLACE TX V2 6 Station extensions
From software version 711.1 04/2018 6.1 Nozzle changer
259
6.1.1.2 Narrow nozzle changer for C&P20 P2 with 3 magazines
The narrow nozzle changer with 3 magazines is used with the SIPLACE TX2i.
Item no. 03129201-xx Nozzle changer for TX2i
Item no. 03101503-xx Nozzle magazine 60xx with 20 garages
6

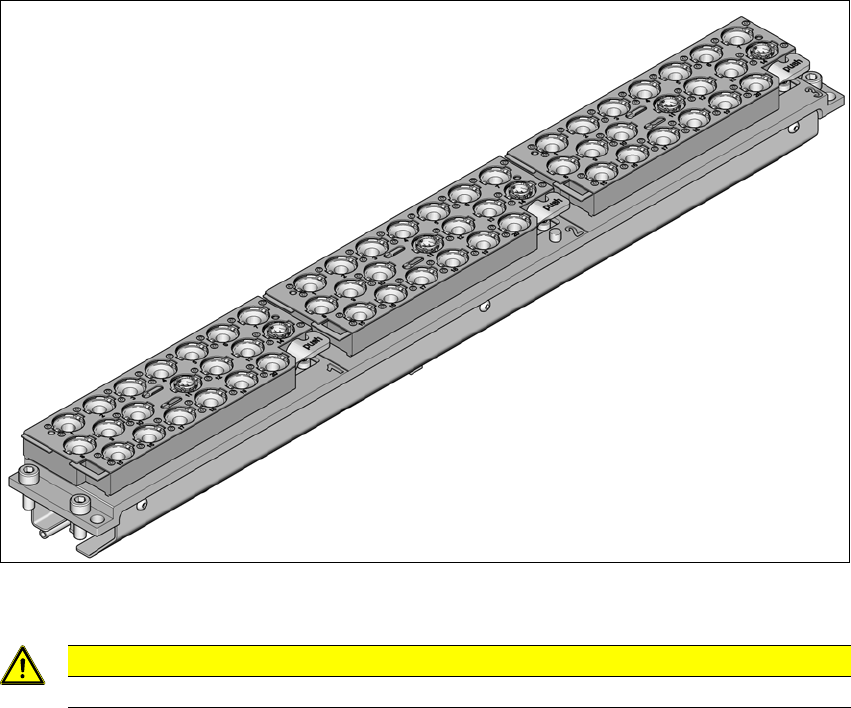

Fig. 6.1 - 2 Nozzle changer for the SIPLACE SpeedStar C&P20 P2 with 3 magazines
6
CAUTION
Only use this nozzle magazine together with the SpeedStar.
6 Station extensions User manual SIPLACE TX V2
6.1 Nozzle changer From software version 711.1 04/2018
260
6.1.1.3 Technical data
6
Nozzle changer for the SIPLACE SpeedStar (C&P20 P2)
Number of magazines per location
*a
SIPLACE TX1 / TX2
SIPLACE TX2i
*)a All magazines in the nozzle changer must be configured.
4
3
Number of nozzle garages per location
SIPLACE TX1 / TX2
SIPLACE TX2i
80
60
Standard configuration
SIPLACE TX1 / TX2 per location
SIPLACE TX2i
4 magazines with 80 nozzle garages
3 magazines with 60 nozzle garages
Nozzle types 40xx/60xx
User manual SIPLACE TX V2 6 Station extensions
From software version 711.1 04/2018 6.1 Nozzle changer
261
6.1.1.4 Configuration example with SIPLACE TX2i
A narrow nozzle changer with three magazines each for the SpeedStar can be installed at both
locations 1 and 2 (item 1 in fig. 6.1 - 3
, page 261).
6

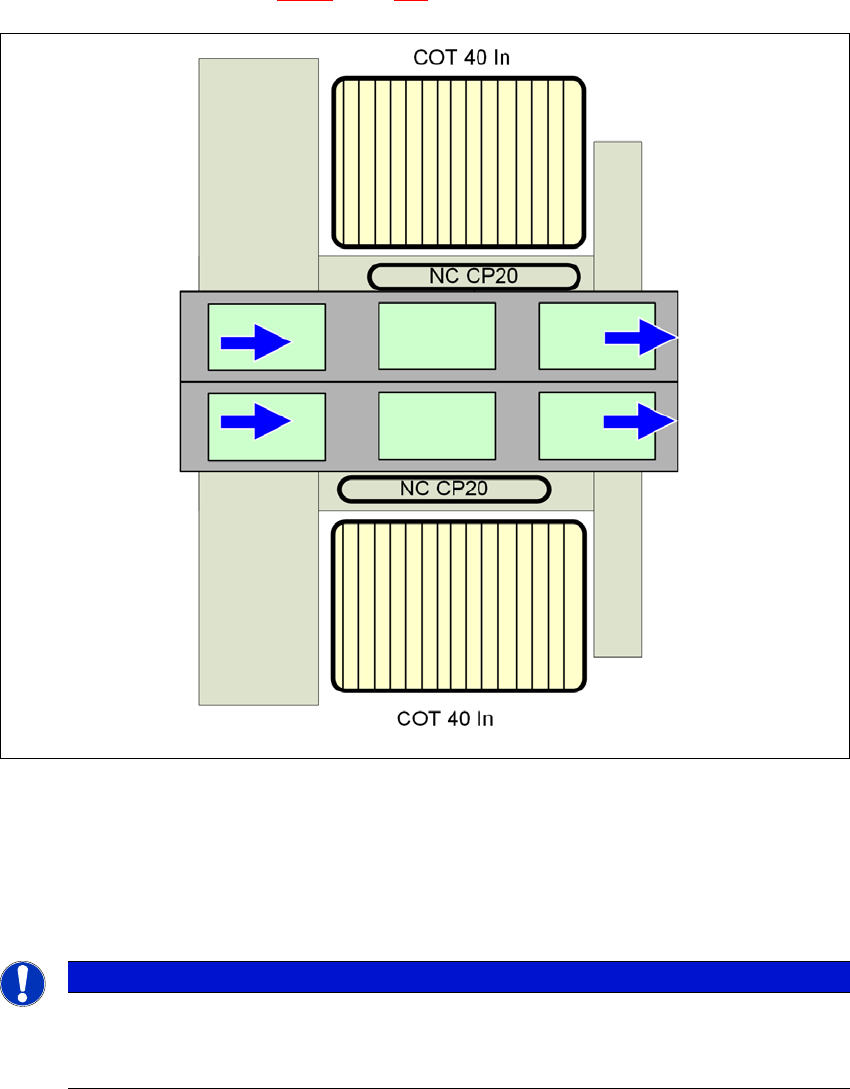

Fig. 6.1 - 3 Position of nozzle changer for the SIPLACE SpeedStar - configuration example SIPLACE TX2i
6
6
NC CP20
Nozzle changer for C&P20 P2 with 3 magazines
COT 40 In
Component trolley in the innermost position (further inside)
PLEASE NOTE
The placement machine stops if magazines are missing
The machine will stop if there are magazines missing or incorrectly fitted.
Use all magazine places.
