User manual SIPLACE TX V2 3 Technical data and assemblies From software version 711.1 04/2018 3.8 SIPLACE tape feeder modules for SIPLACE TX 143 3.8.2.2 T echnical data 3 Length 584.9 mm Height 199.5 mm Width 57.6 mm Fee…
3 Technical data and assemblies User manual SIPLACE TX V2
3.8 SIPLACE tape feeder modules for SIPLACE TX From software version 711.1 04/2018
142
3.8.2 SIPLACE glue feeder
Item no. 03088129-xx SIPLACE Glue Feeder
3

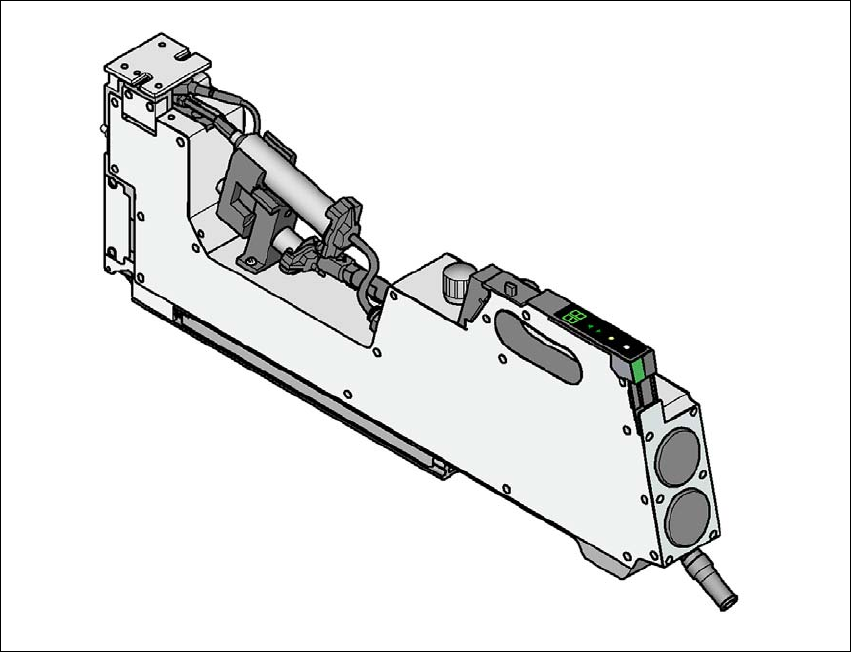

Fig. 3.8 - 3 SIPLACE Glue Feeder
3.8.2.1 Description
The SIPLACE Glue Feeder allows you to position dots of adhesive on a component, before it is
placed. These dots of adhesive can then be checked by the SIPLACE Vision system. The required
glue dots can be defined in the Component Shape Editor in SIPLACE Pro and you can also define
whether individual dots of adhesive are to be excluded from inspection or not. This adhesive func-
tion can be enabled and disabled in the Component Editor in SIPLACE Pro. The SIPLACE Glue
Feeder is a special feeder module which needs to be manually configured as a fixed feature on a
certain table track. For a detailed description, see the "SIPLACE Glue Feeder User Manual, Ger-
man [item no. 00197218-01-xx.],
English [item no. 00197219-xx]
User manual SIPLACE TX V2 3 Technical data and assemblies
From software version 711.1 04/2018 3.8 SIPLACE tape feeder modules for SIPLACE TX
143
3.8.2.2 Technical data
3
Length 584.9 mm
Height 199.5 mm
Width 57.6 mm
Feeder module locations filled 5 tracks, each with
8 mm
Weight 4.6 kg
Diameter of smallest possible individual droplet
*a
*)a at 100 µm nozzle diameter and use of Heraeus PD 205A-Jet glue (at 53°C) or Loctite 3621 (at 53°C)
0.7 - 0.8 mm (+/- 0.1 mm)
Diameter of droplet formed from 5 shots
a
1.0 mm (+/- 0.2 mm)
Height of individual droplets
a
0.15 mm (+/- 0.02 mm)
Height of droplet formed from 5 shots
a
0.2 - 0.3 mm
3 Technical data and assemblies User manual SIPLACE TX V2
3.8 SIPLACE tape feeder modules for SIPLACE TX From software version 711.1 04/2018
144
3.8.3 Linear Dipping Unit 2 X ( LDU 2X)
Item no. 00117012-xx Linear dip module for flux / LDU 2 X
The LDU 2 X is a special feeder module, which can make flux available with a defined layer thick-
ness. This flux can be used to coat components, thereby improving their solder properties. The
LDU 2 X is set up on the changeover table in the same way as an X feeder module and is con-
trolled via the station software and line software.
For a detailed description, refer to the user guide "SIPLACE LDU 2 X".
3
Fig. 3.8 - 4 Linear Dipping Unit (LDU 2 X)
3.8.3.1 Technical data
Dimensions (L x W x H) 629 mm x 105 mm x 202 mm
Weight 11 kg
Current consumption 24 V dc bis 30 V dc, 2 A (60 W)
Max. noise emissions 61dB (A)
Temperature range (storage) Between -25°C and +55°C
Temperature range (operation) Between +18°C and +25°C
Humidity (storage) ≤ 95%
Humidity (operation) 30% - 75% (on average not > 45%)
