User manual SIPLACE TX V2 4 Setting up and commissioning From software version 711.1 04/2018 4.4 Infrastructure at the installation location 169 4.4.3 Main power supply 4 Fig. 4.4 - 3 Position of the power supply in the …
4 Setting up and commissioning User manual SIPLACE TX V2
4.4 Infrastructure at the installation location From software version 711.1 04/2018
168
4.4.2.2 Compressed air connection on the placement machine
4

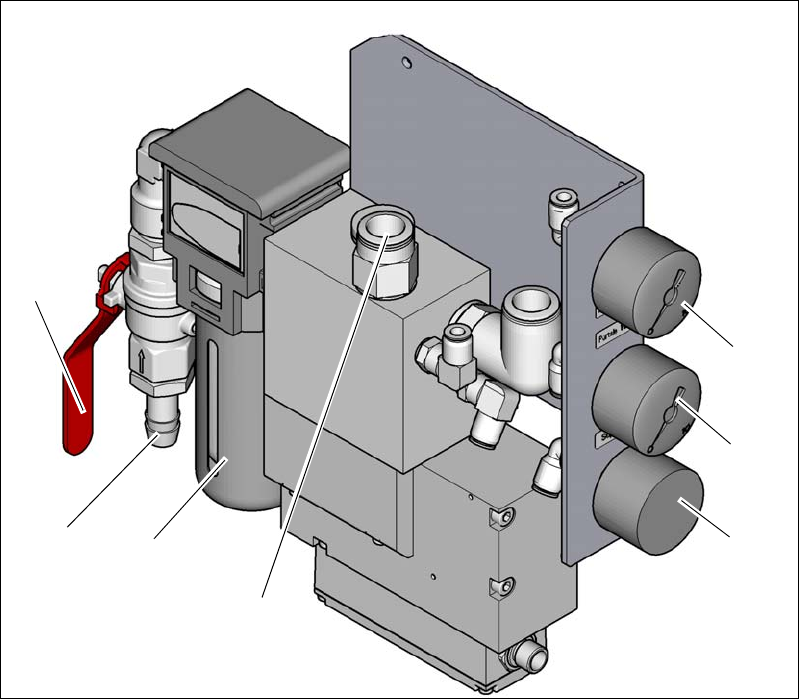

Fig. 4.4 - 2 Compressed air unit on the placement machine
Legend for fig.4.4 - 2
(1) Manometer for the placement machine component supply pressure
Target pressure: 0.51 ± 0.01 MPa, 5.1 ± 0.1 bar (display range 0 - 1.0 MPa, 0 - 10 bar)
(2) Manometer for supply pressure of gantries 1 to 2
Target pressure: 0.485 ± 0.01 MPa, 4.85 ± 0.1 bar (display range 0 - 1.0 MPa, 0 - 10 bar)
(3) Manometer for inlet pressure
Target pressure: 0.5 - 1.0 MPa, 5 - 10 bar (display range: 0 - 1.0 MPa, 0 - 10 bar)
(4) Compressed air supply for gantries
(5) Compressed air filter
(6) Compressed air connection
(7) Stop valve in the "OPEN" position
(6)
(1)
(2)
(3)
(5)
(7)
(4)
User manual SIPLACE TX V2 4 Setting up and commissioning
From software version 711.1 04/2018 4.4 Infrastructure at the installation location
169
4.4.3 Main power supply
4
Fig. 4.4 - 3 Position of the power supply in the placement machine
(1) Lock
(2) Main power switch secured to prevent switching on again
(3) Power supply unit (behind the cover)
(1)
(2)
(3)
4 Setting up and commissioning User manual SIPLACE TX V2
4.4 Infrastructure at the installation location From software version 711.1 04/2018
170
4.4.3.1 Danger notes
4
4
4.4.3.2 Checking the main power supply
Check whether the power supply complies with the prescribed machine specifications (see table
in section 3.2.4
, page 100).
4
DANGER
Dangerous voltage levels!
The machine is supplied with 3 x 360 V~ to 3 x 415 V ± 10 %, 50/60 Hz or optionally with
3 x 200 V~ to 3 x 220 V~ ± 10 %; 50/60 Hz mains voltage. This means that some parts of
the system carry potentially lethal voltages - even when switched off at the main power
switch.
Incorrect handling of this placement machine can therefore result in death or severe injury
or considerable damage to equipment.
Always follow the applicable accident prevention and DIN regulations (particularly EN
60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own coun-
try.
The covers over the power supply unit may ONLY be opened by appropriately quali-
fied and trained personnel.
DANGER
Lethal voltages in the power supply unit!
The power supply unit has components (capacitors) which can still conduct potentially le-
thal voltages for approx. 5 minutes, even when the placement machine is switched off and
the mains plug has been disconnected.
Wait at least 5 minutes before you perform work on the power supply unit.
Test to check that there is no remaining voltage supply. See the procedure described
in the service manual.
Only ASM Assembly Systems GmbH&Co.KG service engineers or the machine
owner's service engineers, who have been trained by ASM, may perform work on the
power supply and the safety cutoff (CBS).
PLEASE NOTE
Load peaks in power supply
For technical reasons, load peaks occur in the power supply.
Please contact your power company to clarify the mains impedance, if necessary.
