4 Setting up and commissioning User manual SIPLACE TX V2 4.4 Infrastructure at the installation location From software ver sion 711.1 04/2018 174 F1 1 CSB signal 6.3 A T 24 F12 CSB supply 6 .3 A T 24 F13 Diagnostic Suppl…
User manual SIPLACE TX V2 4 Setting up and commissioning
From software version 711.1 04/2018 4.4 Infrastructure at the installation location
173
4.4.4 Overview of the microfuses
4

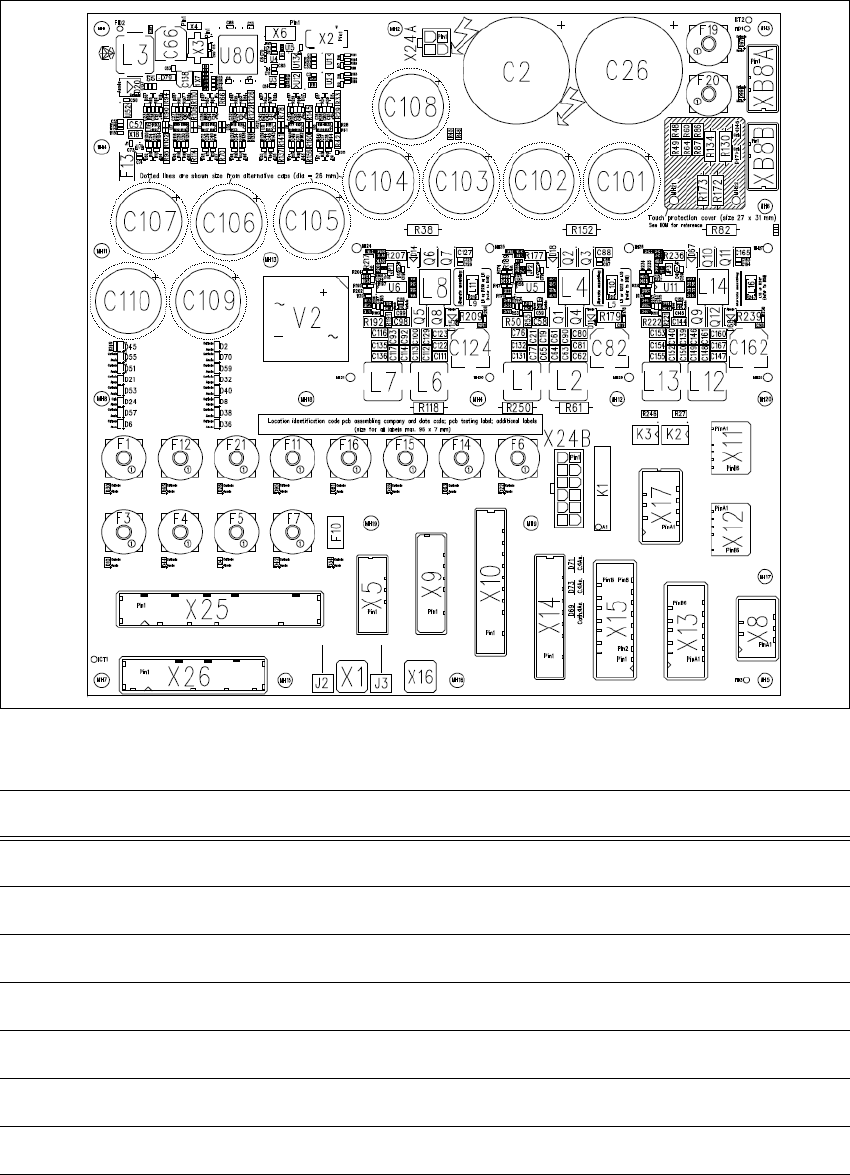

Fig. 4.4 - 7 Overview of the microfuses
4
Fuse Components Electricity Voltage [V]
F1 Shuttle 6.3 AT 42
F3 Shuttle & Option 6.3 AT 24
F4 Distributor 4.0 AT 24
F5 Monitor 1&2 /CIN 6.3 AT 24
F6 MGCU Supply 6.3 AT 42
F7 Conveyor control 6.3 AT 24
F10 Internal Polyfuse 24
4 Setting up and commissioning User manual SIPLACE TX V2
4.4 Infrastructure at the installation location From software version 711.1 04/2018
174
F11 CSB signal 6.3 AT 24
F12 CSB supply 6.3 AT 24
F13 Diagnostic Supply 3.0 (SMD) 24
F14 Gantry/Head 1 6.3 AT 42/24
F15 Gantry/Head 2 6.3 AT 42/24
F16 Conveyor drives 10.0 AT 42
F19 Gantry 1 6.3 AT 160
F20 Gantry 2 6.3 AT 160
F21 Vision (not used) 6.3 AT 42
F31 FCU 1 16 AC
(external)
27.5
F32 FCU 2 16 AC
(external)
27.5
F33 Station PC 10 AC
(external)
27.5
Fuse Components Electricity Voltage [V]
User manual SIPLACE TX V2 4 Setting up and commissioning
From software version 711.1 04/2018 4.5 Setting up the placement machine
175
4.5 Setting up the placement machine
4.5.1 Fitting attached parts
The placement machine is delivered with the monitor and indicator lamp dismantled. To fit the in-
dicator lamps and the monitors, proceed as follows.
4.5.1.1 Fitting the indicator lamp
Insert the indicator lamp into the hole until the lamp tube projects sufficiently into the terminal
beneath.
Pull the connector slightly out of the lamp base.
Plug the connector into the bottom of the upper section of the lamp.
Turn the signaling lamp, until it engages.
4.5.1.2 Fixing the monitors
Use the two fastening screws to fix the monitor to the monitor mount and then connect the
monitor cable (voltage, signal, USB and earth).
Check the cable connections.
Fasten the monitor cable to the monitor with a strain relief.
