User manual SIPLACE TX V2 6 Station extensions From software version 711.1 04/2018 6.1 Nozzle changer 257 6 S t ation extensions For the relevant configurations and othe r options, refer to the individual specifications …
5 Tasks at the placement machine User manual SIPLACE TX V2
5.15 Docking the component trolley in or out From software version 711.1 04/2018
254
5.15.3 Safety instructions for moving the component trolley
5
Always hold the handles with both hands when you want to move the component trolley.
Remember that a component trolley with the full complement of feeder modules can tip over
sideways or forward on gradients of 20° or more.
Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
5.15.4 Docking out the component trolley
Switch the control system "Off".
Press the button on the respective placement machine location until the component trolley is
completely undocked.
With both hands on the handles, pull the component trolley out of the placement machine.
WARNING
Avoid accidents!
To prevent accidents, ALWAYS follow the rules listed below when you move the compo-
nent trolley.
User manual SIPLACE TX V2 6 Station extensions
From software version 711.1 04/2018 6.1 Nozzle changer
257
6 Station extensions
For the relevant configurations and other options, refer to the individual specifications for the SI-
PLACE placement machines.
6.1 Nozzle changer
The nozzle changer is available in two variants for the relevant head type:
– Short nozzle changer with 4 magazines and 20 nozzle garages each for the
SIPLACE TX1_V2/TX2 V2
– Narrow nozzle changer with 3 magazines and 20 nozzle garages each for the
SIPLACE TX2i V2
The magazines are seated on a common support. They are centered with two parallel pins and
fixed in place with 4 push buttons. The exact position is determined with two fiducials on each
magazine. The correct seat of the magazines on the basic nozzle changer body is monitored by
microswitches, to prevent a collision of the placement head with any magazines projecting up-
wards. All magazine locations must be filled since the safety circuit stops the placement machine
in response to missing magazines or magazines that are not seated correctly. At the installed noz-
zle station, components can be blown off the nozzles of the SpeedStar and nozzles stripped off
and rejected.
6 Station extensions User manual SIPLACE TX V2
6.1 Nozzle changer From software version 711.1 04/2018
258
6.1.1 Nozzle changer for SIPLACE SpeedStar C&P20 P2
6.1.1.1 Short nozzle changer for C&P20 P2 with 4 magazines
The short nozzle changer with 4 magazines is used with the SIPLACE TX1/2.
Item no. 03103649-xx Nozzle changer basic assembly CP/all - short
Item no. 03101503-xx Nozzle magazine 60xx/40xx with 20 garages
6

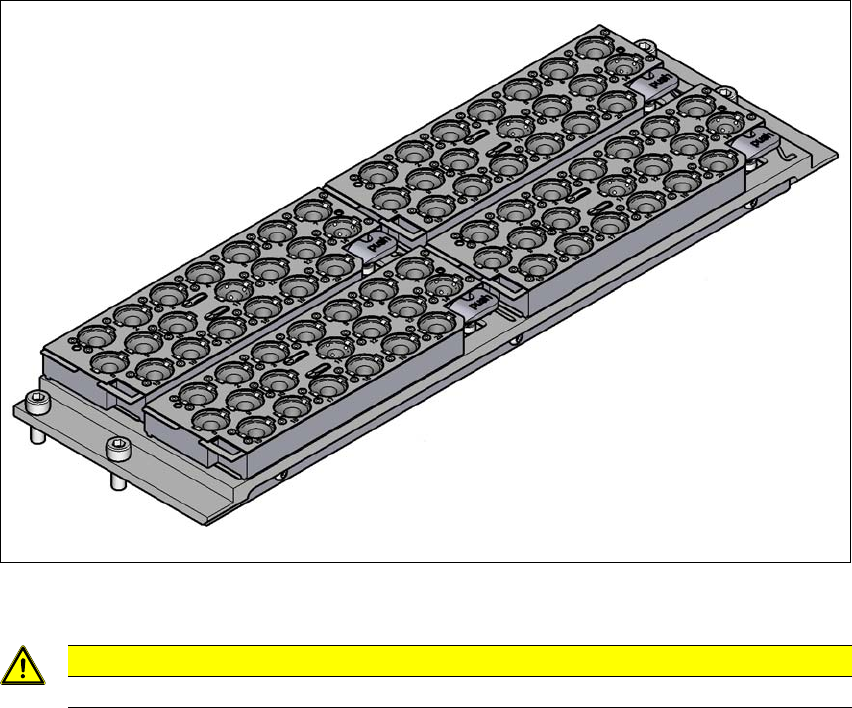

Fig. 6.1 - 1 Short nozzle changer for the SIPLACE SpeedStar C&P20 P2 with 4 magazines
6
CAUTION
Only use this nozzle magazine together with the SpeedStar.
