SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
117
7.50 Additional Error Detection Options
Two new error detection options can be set in the Machine options.

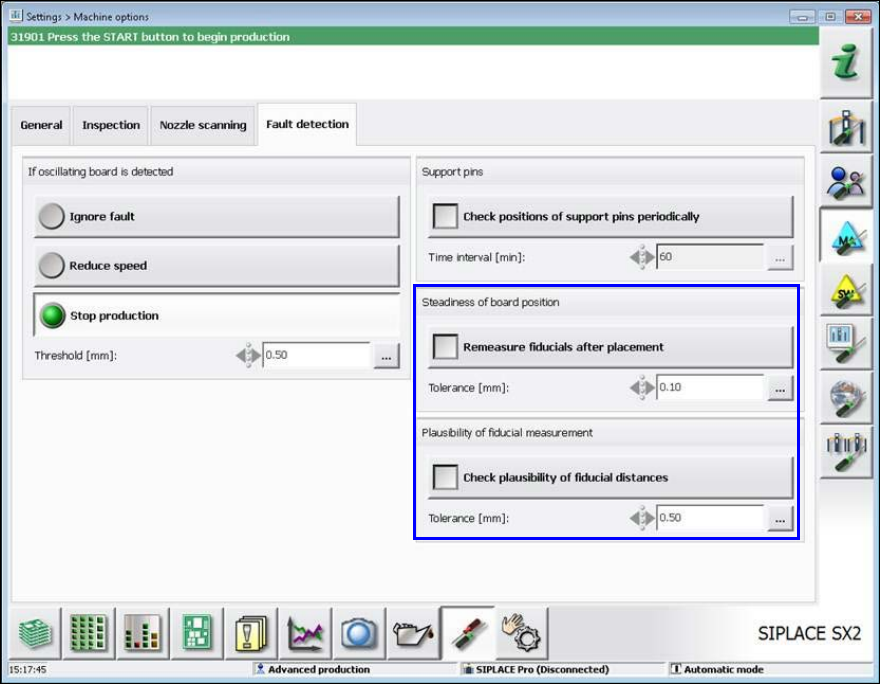

Figure 7-51: Additional options in machine options
Remeasure fiducials after placement
This option makes sure that the board has not been moved during placement. If a configurable
threshold is exceeded, the machine stops and the operator is prompted to inspect the placement
positions of the boards.
Check plausibility of fiducial distances
With this option it can be decided if the fiducial distances on a panel shall be plausible to each
other. If the distance of the measured fiducials differs more than a configurable tolerance from the
target distance it is assumed that a faulty structure has been found. The user will be guided to the
teaching menu.
7.51 C&P12 Placement Head on SX1/SX2 V2
The C&P12 placement head is supported on the SX1/SX2 V2 placement machines. The same
prerequisites and restrictions apply as for the DX1/DX2 placement machines.
SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
118
Features (V706.1 SP1: compatible mode V705.05 SP1)
7.52 "Set full" Function Linked to Activity Level
Until now the operator could set the table full with the button in the main view as of the
Basic Production activity level.
As of this station software version, this function is linked to the activity level.
Default activity level: Advanced Production.
If required, the activity level may be changed.
7.53 New Nozzle Types: 1008 and 1009
The new 1008 and 1009 nozzle types are supported by the station software.
SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
119
8 Feature Description – Station Software V707.x
Features (V707.0)
8.1 SIPLACE CA Series Placement Machines
As of this version the station software supports a new SIPLACE CA4 placement machine model of
the CA-series (Chip Assembly). Additionally, the new SIPLACE CA4 eWLP (embedded Wafer
Level Process) placement machine is supported by the station software. However, this machine
type will not be released for series production in this version.
NOTICE
The CA-machines available in the field do not meet with the required hardware
prerequisites and will not be migrated to the 707 station software. However, the CA-
series placement machines are still available with the 60x station software.
The new CA-series placement machines mainly differ from the previous CA-machines by the
following features:
– Placement heads with a high-resolution star axis are used to achieve high accuracy. For this,
the new C&P20 M placement head type has been introduced. In SIPLACE Pro this placement
head is referred to as C&P20 M 1xxx.
– Support of WLFO – Wafer Level Fan-Out on the SIPLACE CA4 eWLP placement machine as a
customer project (no release for series production).
The SIPLACE Wafer Systems 12 1&3 and 12 2&4 may be used for the placement of bare dies on
the CA-series placement machines. The communication between station software and the
SIPLACE Wafer Systems runs via the new Wafer Feeder feeder type.
Dip modules may also be used on the SIPLACE Wafer Systems.
