SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition

If the chain is empty, this is displayed by a track empty error and flashing lamp indicators.

Figure 7-26: Chain empty

7.23 Automatic Recognition and Compensation of Increased

Component Thickness

The component sensor automatically detects an increased component thickness after a batch

change in order to enable the possibility to automatically correct the Z-axis position at the

placement position.

SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition

7.24 Automatic Recognition and Compensation of Oscillating Boards

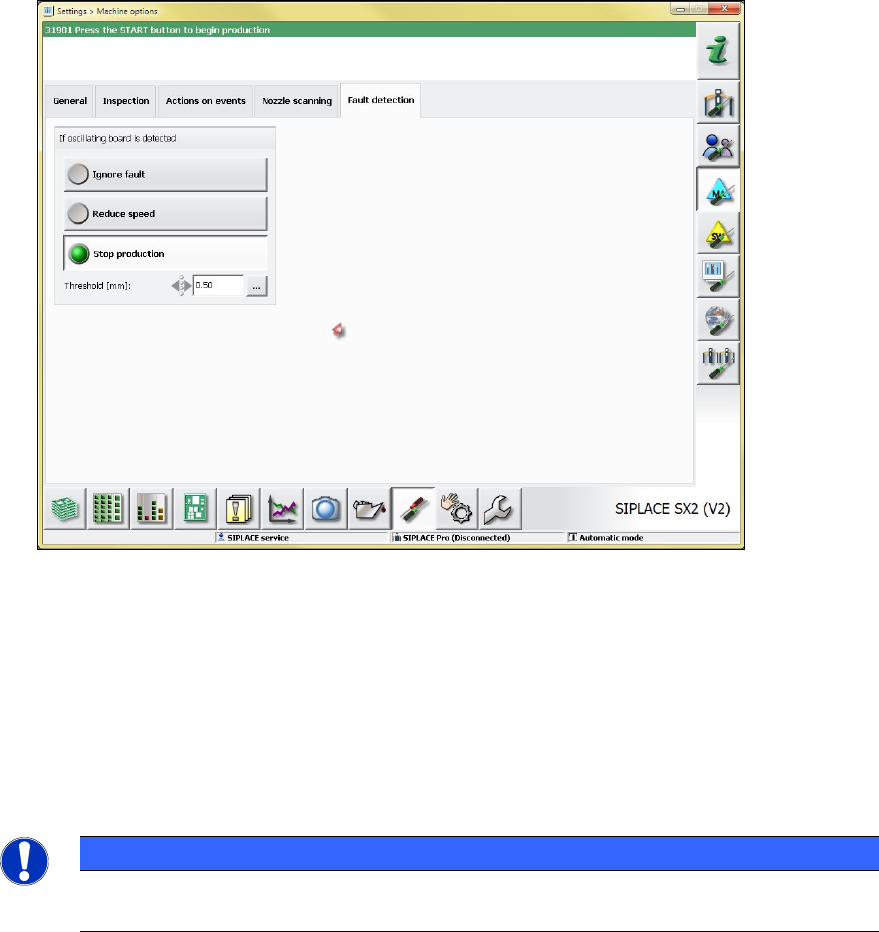

Figure 7-27: Error recognition of oscillating board

If an oscillating board is recognized, the following configuration alternatives exist to define the

machine behavior:

– Ignore fault: no display or warning on the GUI; the error is only visible in the Maintenance

view.

– Reduce speed: the placement automatically runs slowly.

– Stop production: an error message is displayed; after pressing the START button,

production continues as usual.

NOTICE

In the case of oscillation boards, board support should be used or the support pin

positions should be modified.

SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition

7.25 New Options on the GUI

In former station software versions the following three options could only be set via XML

configuration files:

– Shall the stationwise download product change be performed automatically or be confirmed by

the operator?

– Shall the first board of the new recipe be automatically passed on to the succeeding machine

or remain in the output section until it has been inspected by the operator?

– Shall the operator be prompted to check for support pins if the transport width decreases?

As of this station software version these options may also be modified on the GUI. However, for

persistence reasons they will remain in the configuration files.

7.25.1 Station-Wise Download with/without Confirmation at the First Machine

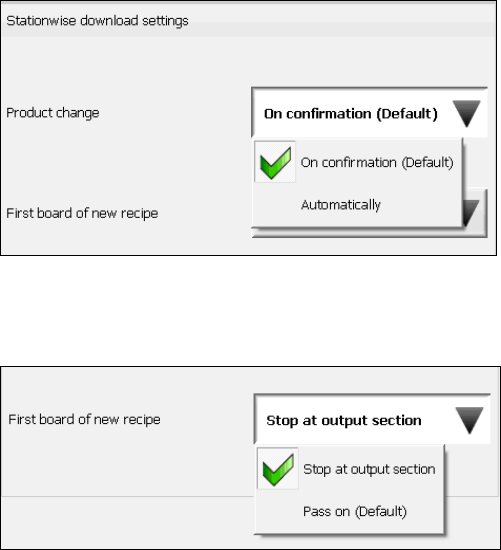

For the Product change option under Settings – Machine settings – Stationwise download

settings you can select if the station-wise download shall be performed On confirmation or

Automatically:

For the First board of new recipe option you can select if Stop at output section or Pass on

shall be applied:
