SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
13
3 Feature Description – Station Software V702.x
Features (V702.01)
3.1 New Placement Head SIPLACE CPP
The new SIPLACE CPP (Collect&Pick&Place with 12 segments) placement head is able to
measure components with the internal camera as well as with the external stationary camera.
Dependent on the specifications to the camera and the component dimension with the
corresponding tolerances, that are set in SIPLACE Pro, the components will be picked up in
Collect&Place mode, in Pick&Place mode or in a mixed mode. The Collect&Place mode has the
same functionality as for the C&P20 head and the Pick&Place mode has the same functionality as
for the Twin Head. The so called mixed mode is a combination of Collect&Place mode and
inspection with the external camera for components > 27mm x 27mm, that cannot be inspected
with the internal camera due to their dimensions.
3.2 Support of Twin Head/HFH
Twin Heads/HFH (High Force Heads) are supported on the X2, X3 and X4 placement machines.
With HFH it is possible to achieve placement forces between 2.0 and 30 N, which allows placement
of a wider component range.
3.3 Configurable Nozzle Scan
The nozzle scan can be configured in the machine options concerning the closeness of the nozzle
scan and the behavior of the machine in case of defects.
This function requires the "SIPLACE service" activity level.
3.4 Extended Support of X-Feeders
The support of X-feeders has been extended.
SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
14
3.5 Tray Feeding
The station software supports the following types of tray feeding on the X2, X3 und X4 placement
machines:
Manual tray feeding:
– Arbitrary Carrier X
– Carrier X
Automatic tray feeding:
– MTC2 on locations 2 and 4.
3.6 New Conveyor Mode "Quad Lane"
Provided that the machine has been configured accordingly, the station software supports the new
"Quad Lane" (QC) conveyor mode additionally to single (SC) and dual (DC) conveyor modes.
The basic principle of "Quad Lane" is that four boards are placed simultaneously on four conveyor
lanes. This increases the overall line performance, especially for boards with a low number of
placement positions. In SIPLACE Pro two boards respectively are defined as a logical pair (2L/2R
and 1L/1R, from left machine side to right machine side). This pair is downloaded in one single job
from SIPLACE Pro to the station. The logically coupled lanes xL and xR are referred to as sub-
lanes. The board width may be different in the 2L/2R and 1L/1R lanes, but all boards must have the
same thickness. The conveyor width is automatically adjusted in the job specification (if automatic
width adjustment is preset in SIPLACE Pro).
Also single boards may be placed in the sub-lanes. In this case a board must be defined in the job
specification for the sub-lane next to the fixed conveyor edge. Otherwise, the width of this sub-lane
is unknown.
Boards can be aborted separately. However, two boards on one conveyor lane are always
conveyed together. An aborted board is conveyed to the output conveyor together with the placed
board. The placed board will not be driven into the next machine until the aborted board has been
removed from the output conveyor.
The "Quad Lane" conveyor mode is supported on the X4 and X4i placement machines.
SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
15
The following changes have been made in the station software:

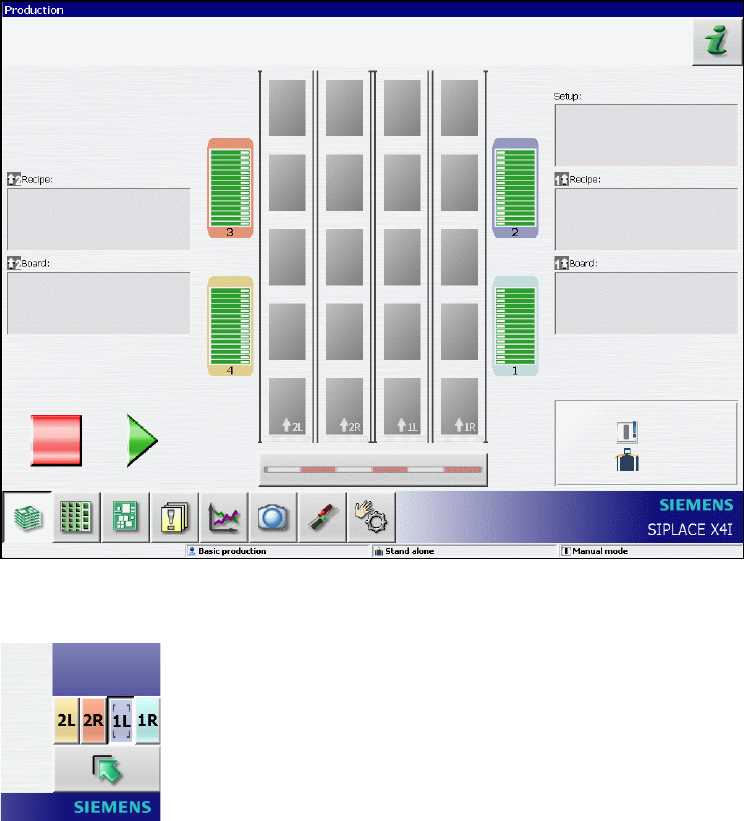

– Four conveyor lanes are displayed in the "Production" view on the GUI main view, when "Quad
Lane" conveyor mode is activated.
– New buttons are used on the GUI to operate the single sub-lanes:
3.7 Single Conveyor Mode on X4i
The single conveyor mode is also supported on the X4i placement machine as of this station
software version.
