SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
137
8.24 SMEMA Pass/Fail Conveyor Option
The new SMEMA: Pass/Fail conveyor option has been introduced for the SMEMA interface. With
this option an aborted board is announced to the succeeding station via another signal line. A
board that has been loaded via the new signal is identified as aborted in the machine and will thus
be passed over and locked out via the new signal line. For this, the advanced SMEMA hardware
and new SMEMA cables (item no.:[00334770-xx]) are required for the placement machines.
The option is supported on the X-series S placement machines.
The SIPLACE service activity level is required to set the option in the conveyor configuration on
the GUI.
Figure 8-11: Setting SMEMA: Pass/Fail option
SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
138
8.25 Short Tape Handling for X-Feeders
If the end of a tape has been reached on an X-feeder the cover foil breaks and an error message is
displayed. In order to pick up the remaining components from the tape or process short tapes
without cover foils, the short tape handling mode has been introduced for X-feeders.
First, the Display short tape handling solution setting has to be enabled under Settings – GUI
settings – Setup. For this, the Machine service activity level is required. The setting remains valid
after a restart.
Figure 8-12: Setting Display short tape handling solution
SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition
139
The Activate short tape handling option will then be displayed as solution in the Cover foil
broken … error message.

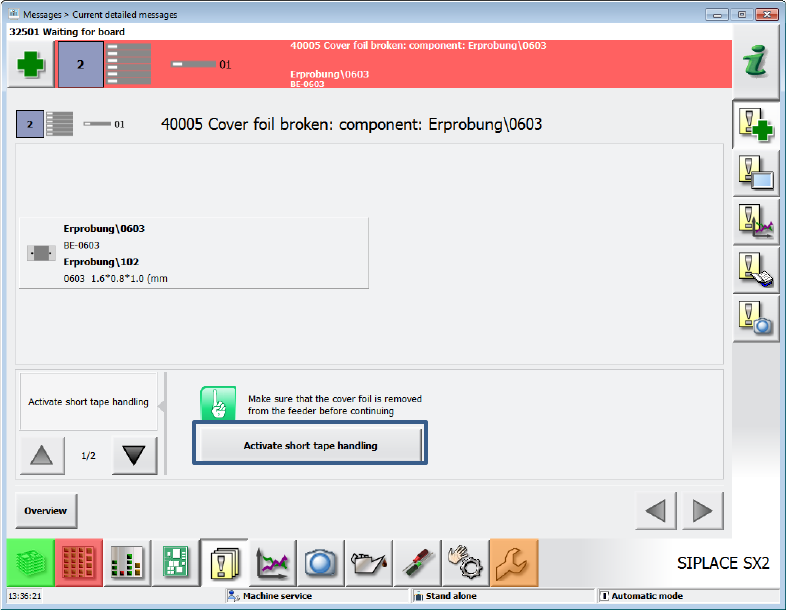

Figure 8-13: Activate short tape handling
By using the short tape handling mode also the very last component can be picked up from the
tape. Thereafter, the production stops after the set number of pickup failures has been reached
(Stop placement after pickup failure setting is enabled in the Software options). The mode will
be terminated if one of the following events occurs:
– A new tape of normal length has been set up on the feeder. The tensioning of the cover foil
terminates the mode.
– The feeder has been removed and re-inserted.
– The placement machine or the station software has been restarted.
