SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition

7.24 Automatic Recognition and Compensation of Oscillating Boards

Figure 7-27: Error recognition of oscillating board

If an oscillating board is recognized, the following configuration alternatives exist to define the

machine behavior:

– Ignore fault: no display or warning on the GUI; the error is only visible in the Maintenance

view.

– Reduce speed: the placement automatically runs slowly.

– Stop production: an error message is displayed; after pressing the START button,

production continues as usual.

NOTICE

In the case of oscillation boards, board support should be used or the support pin

positions should be modified.

SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition

7.25 New Options on the GUI

In former station software versions the following three options could only be set via XML

configuration files:

– Shall the stationwise download product change be performed automatically or be confirmed by

the operator?

– Shall the first board of the new recipe be automatically passed on to the succeeding machine

or remain in the output section until it has been inspected by the operator?

– Shall the operator be prompted to check for support pins if the transport width decreases?

As of this station software version these options may also be modified on the GUI. However, for

persistence reasons they will remain in the configuration files.

7.25.1 Station-Wise Download with/without Confirmation at the First Machine

For the Product change option under Settings – Machine settings – Stationwise download

settings you can select if the station-wise download shall be performed On confirmation or

Automatically:

For the First board of new recipe option you can select if Stop at output section or Pass on

shall be applied:

SIPLACE Station Software 70x / Feature Description Ausgabe 05/2014 Edition

The default values of the two options depend on the position of the machine within the line:

– Automatic product change is enabled by default on all machines that have a preceding

machine in the line.

– Stopping in the output section is enabled by default if automatic product change is enabled

AND the machine is the last one in the line.

NOTICE

– Changing the Product change option might affect the default of the other option!

– In dual conveyor mode, these options can only be set for both lanes.

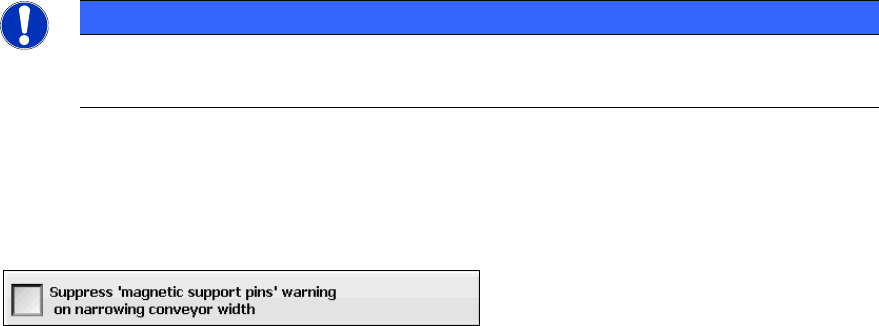

7.25.2 Suppress 'magnetic support pins' Warning on Narrowing the Conveyor

Width

Under Settings – GUI settings you can select to suppress this warning:

The default is to prompt the operator to remove the support pins. However, this option will not be

displayed on machines equipped with Smart Pin Support.

7.26 Displaying Parallel States by the Lamp Indicators

The towers of the X-, SX- and DX-series placement machines are equipped with two lamp

indicators (one on each side of the machine). These lamp indicators are either two-colored (green /

white) or three-colored (green / yellow / red). With the aid of the different states of the single lamp

indicators (including the flashing frequency) the operator can recognize the machine status (i.e.

production, waiting state, error type etc.).

Parallel states are possibly displayed at the same time by the two-colored lamp indicator system.

E.g., if a reference run, a width adjustment, a manual function or a calibration is performed during

production, the white lamp indicators flash briefly and the green one normally at the same time.

As of this station software version the two lamp indicators do not flash at the same time anymore, if

a board cannot be moved into the successor machine or system (oven/AOI), e.g. because of a jam

in the successor system.

No parallel states are displayed by the three-colored lamp indicator system.

The meaning of the lamp indicators is explained in the online help of the station software.
