iv
Before using the machine
n
Precautions for setting the feeder
· Before setting the feeder, be sure to remove foreign matter (part, etc.) on the feeder plate upper surface.
c
CAUTION
· If the tape feeder is set with foreign matter on the feeder plate, lower surface of the feeder will be damaged. Take
care or malfunction of the feeder such as pickup error may be caused.
· Use a dustpan or the like when cleaning the upper feeder plate so that wiped foreign matter would not fall on the
lower section.
· Take care not to let wiped foreign matter be caught in the connector part when cleaning the lower feeder plate.
Removing foreign matter on the upper feeder plate
63003-F3-00
Removing foreign matter on the lower feeder plate
Connector part
63004-F3-00
· Be sure to clean the upper surface of the feeder plate before setting the feeder.
v
Before using the machine
n
Cautions after installing the feeder
· Don’t push the installed feeder rightward or leftward.
c
CAUTION
Be careful not to push the feeder set on the feeder plate rightward or leftward, or pickup error may be caused.
Cautions after installing the feeder
63005-9L-10
n
Handling the tail cover
· An edge cutter (with a sharp blade) is installed on the tail cover for cutting used top tape. If the tail cover should be
damaged somehow, the blade may be exposed. Pay attention when handling the tail cover or injury may be caused.
Handling the tail cover
Edge cutter
(With a sharp blade)
Tail cover
63012-9L-00
vi
Before using the machine
n

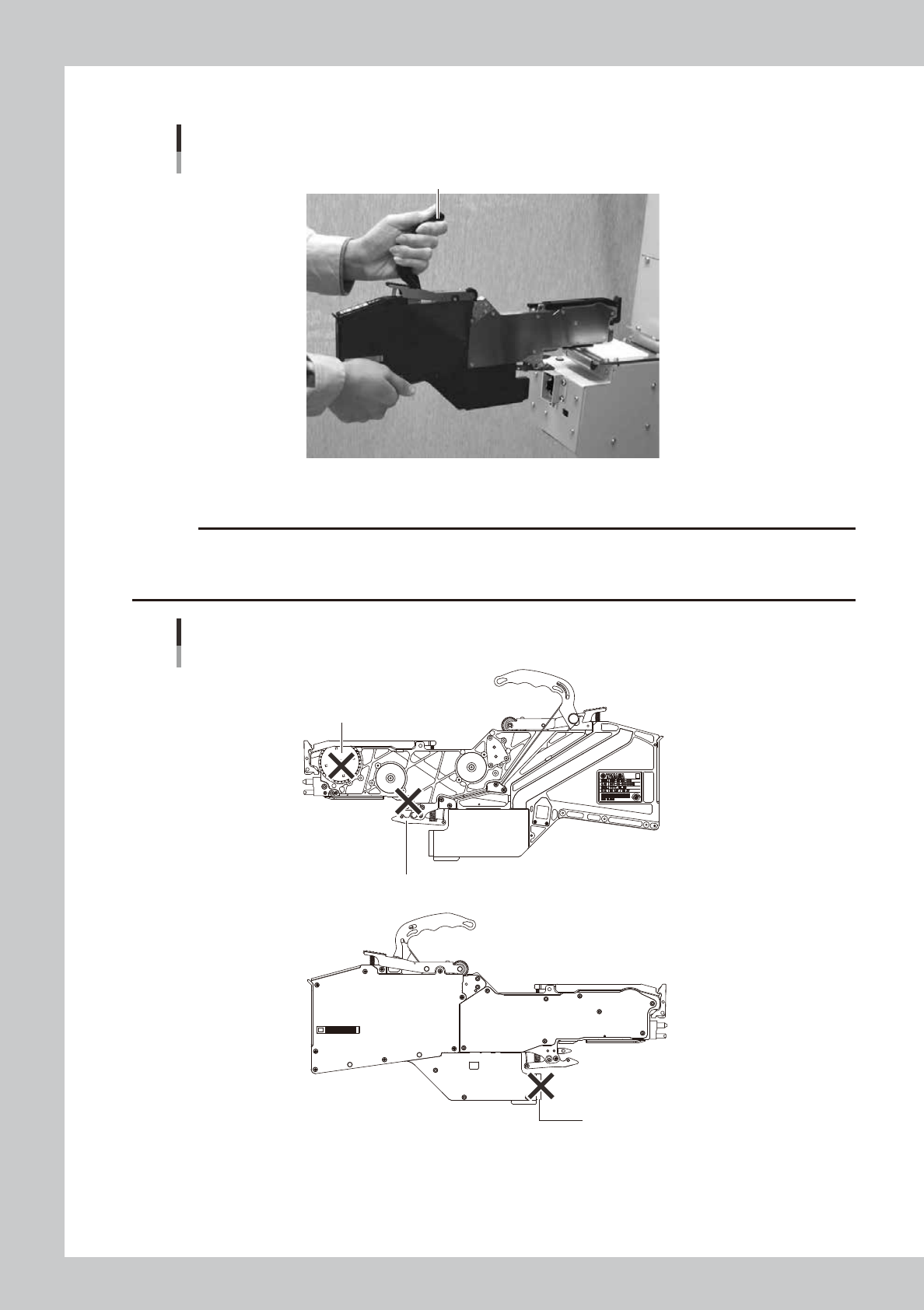

How to hold the feeder
How to hold the feeder
Handle
63006-9L-10
Hold the rear portion of the feeder body with one hand and hold the feeder handle with the other hand.
c
CAUTION
· Don’t hold the clamping lever part or your hand may be pinched, causing injury.
· Take care not to hold the connector or sprocket part or the feeder may be damaged.
· Don’t touch the EL box which is heated to high temperature.
Cautions when holding the feeder
Sprocket part
Connector part
Clamping lever part
63007-9L-20
