1-4
1
Handling
2. Setting the tape
c
CAUTION
Be sure to use a set-up station on machine or Ofline setup station for setting up a tape. It is impossible to set up a tape
on the mounter.
1
Set the feeder.
Set the feeder to a set-up station on machine or an Offine setup station. Refer to ”3.1.2 Installing to a
station” for setup of the feeder.
Setting the feeder
Handle
Feeder Set-up station on machine
63106-9L-10
2
Lift the tape guide assembly.
Open the tape guide front lever and lift the tape guide assembly.
Lifting the tape guide assembly
Tape guide assembly
Tape guide front lever
63101-9L-10
3
Set the tape reel.
Set the tape reel for operation to the dedicated reel holder of the set-up station on machine.
1-5
1
Handling
4
Set the tape on the tape feeder.
Insert into the tape opening.
Installing the tape
Tape
63102-9L-00
c
CAUTION
Take care not to install the tape upside down.
5
Peel off the top tape.
A tape has two layers; the ”carrier tape” contains electronic components and the ”top tape” covers
the components. Peel off the tape to separate the layers.
6
Set the carrier tape.
Insert the carrier tape into the hole of the tape guide front lever.
7
Set the top tape.
Pass the top tape into the notch of the tape guide assembly. Pull the top tape long enough to reach
the winding roller.
Carrier tape, top tape
Tape guide assembly Bottom plateTop tape Carrier tape Tape guide front lever
63123-9L-00
c
CAUTION
Take care not to deform the bottom plate inside the tape guide assembly.

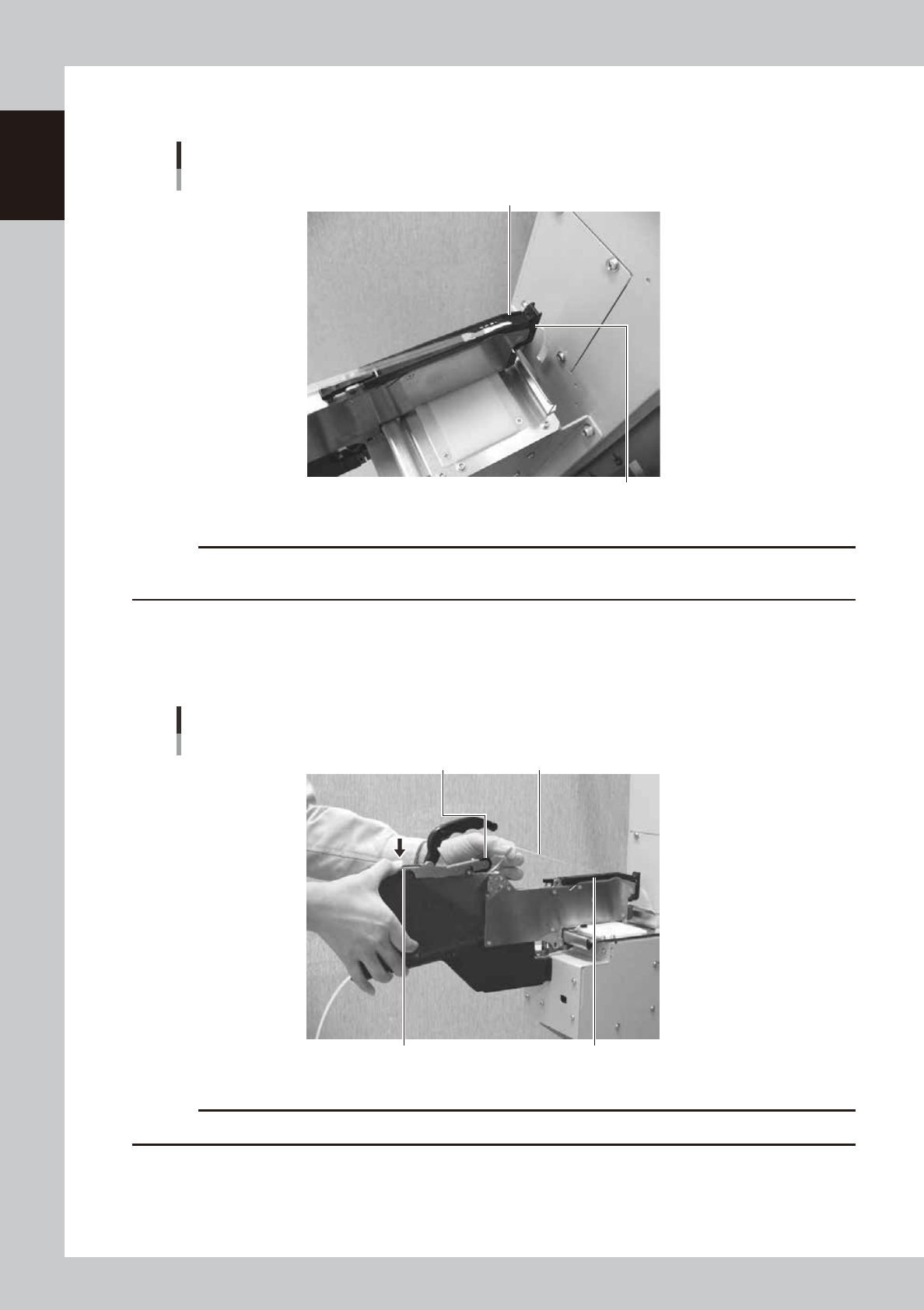

1-6
1
Handling
8
Secure the tape guide assembly.
Set the carrier tape so that it engages with the sprocket teeth.
Securing the tape guide
Tape guide assembly
Tape guide front lever
63124-9L-00
c
CAUTION
Secure the tape guide assembly while pulling the top tape so that the top tape will not sag in the tape guide
assembly.
9
Set the top tape on the winding roller.
Hold a portion of the winding roller lever shown in the figure to make a clearance around the winding
roller, pass some length of the top tape into the clearance and release the winding roller lever to pinch
the top tape.
Setting the top tape
Top tapeWinding roller
Winding roller lever Tape guide assembly
63105-9L-00
c
CAUTION
Check that the top tape between the tape guide assembly and the winding roller is not twisted.
