3-2
3
Application examples
2.

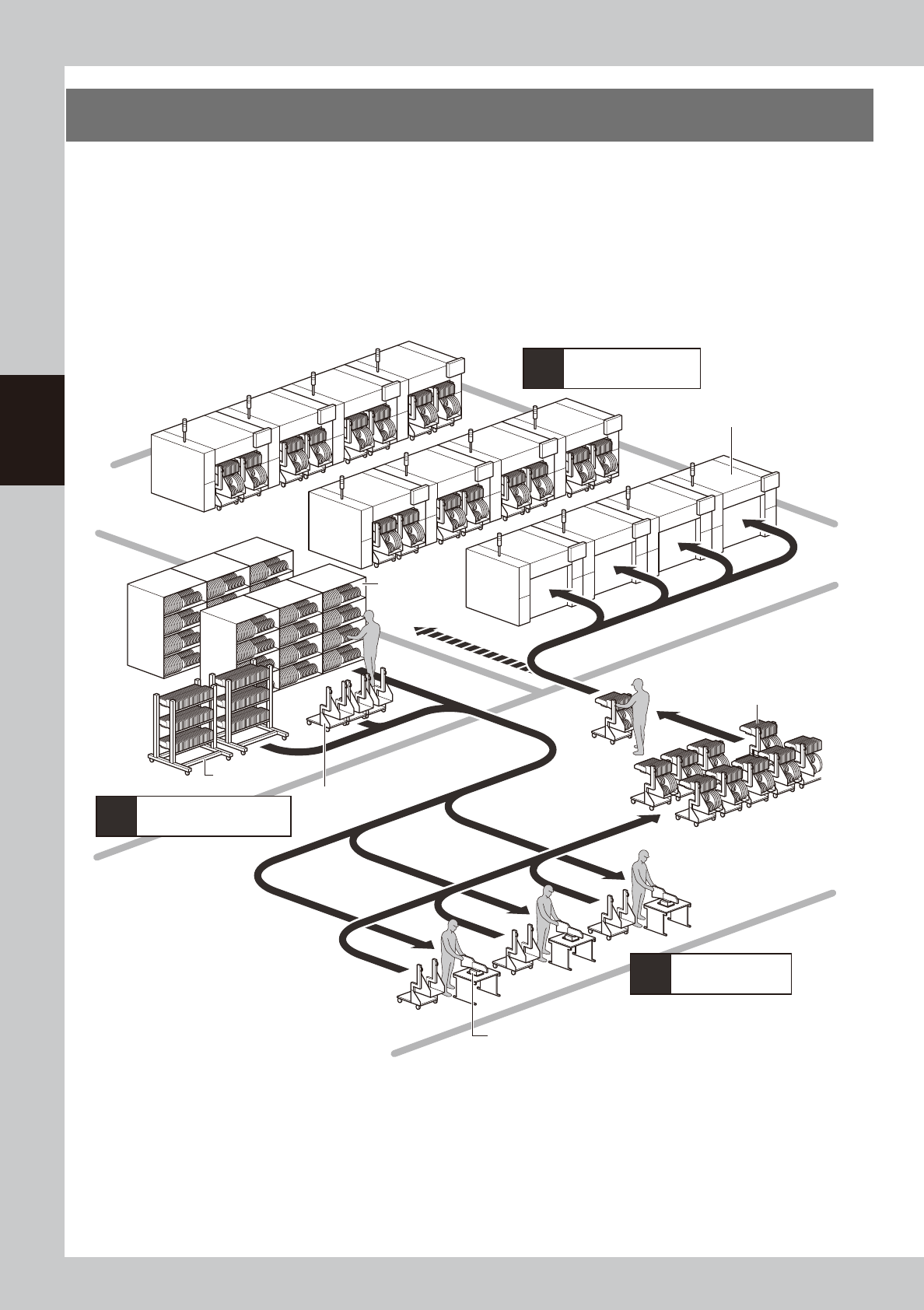

CFB (Changeable feeder bank) specification example
The figure shows an example of an application under the following conditions.
· There is no space for components or feeders close to the mounter.
· There is a space exclusively for setup.
· There are many feeders.
· Operation can be performed through division of labor and workers can do their own specialized work.
· Time required for setup to the mounter is to be shortened.
Mounter
(Changeable feeder bank type)
Changeable feeder bank on
which feeders are set
Component shelf
Changeable feeder bank
before set up
Feeder stand
Offline setup station
Component storage
1
Setup space
2
Production line
3
63300-F3-00
3-3
3
Application examples
Component
storage
1
2
3
Setup space
Production
line
Prepare blank changeable feeder
bank.
Set tapes to feeders according to
setup instructions.
Set-up station
on machine
Out of components
Setup change
Set the feeder to which components
are set on the
feeder carts
.
Set the already setup changeable
feeder bank to the mounter.
Compare with the board data and
check that there is no problem.
Start mounting
Programming
Prepare feeders and components.
Offline setup
station
Pitch setup
(Pitch can be adjusted)
(Pitch can be adjusted)
Work flow
Example of application using changeable feeder bank
63302-F3-00
n
NOTE
Application methods vary greatly depending on conditions such as the number of optional devices (stations) and
factory layout. The above example should be taken only as a reference for applications.
3-4
3
Application examples

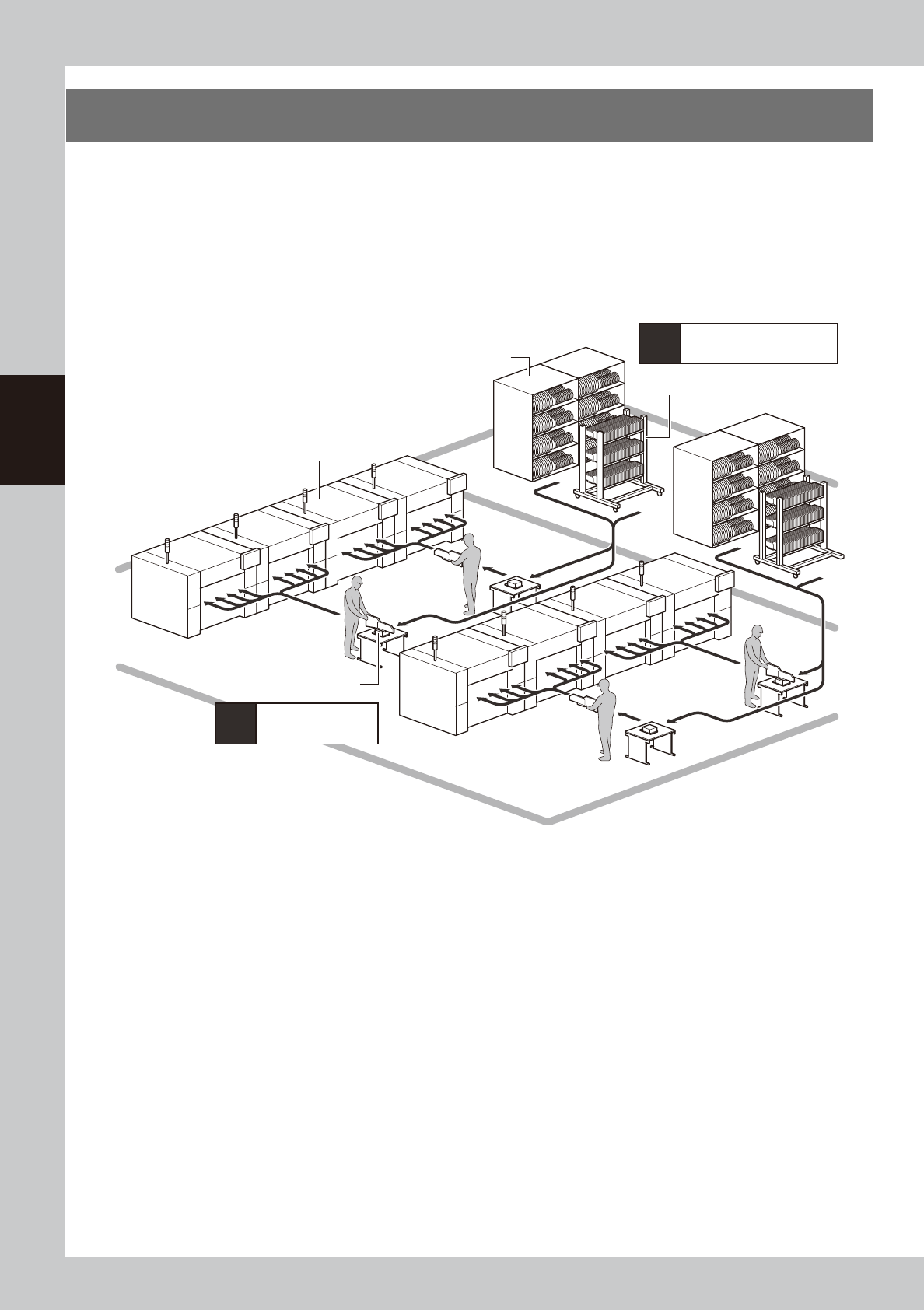

3. Fixed banks specification example
The figure shows an example of an application under the following conditions.
· There is space for components or feeders close to the mounter.
· There is no space exclusively for setup.
· There are not many feeders.
· Each worker performs whole range of work.
Offline setup station
Component shelf
Mounter
(Fixed bank type)
Feeder stand
Component storage
1
Production line
2
63301-F3-00
