2-14 2 Replacing parts 8. Under plate 8.1 Removal 1 Remo ve the clamping pin. Remove the screw securing the clamping lever assembly main axis with a Phillips screwdriver (No. 2) and remove the clamping pin by inserting a…
2-13
2
Replacing parts

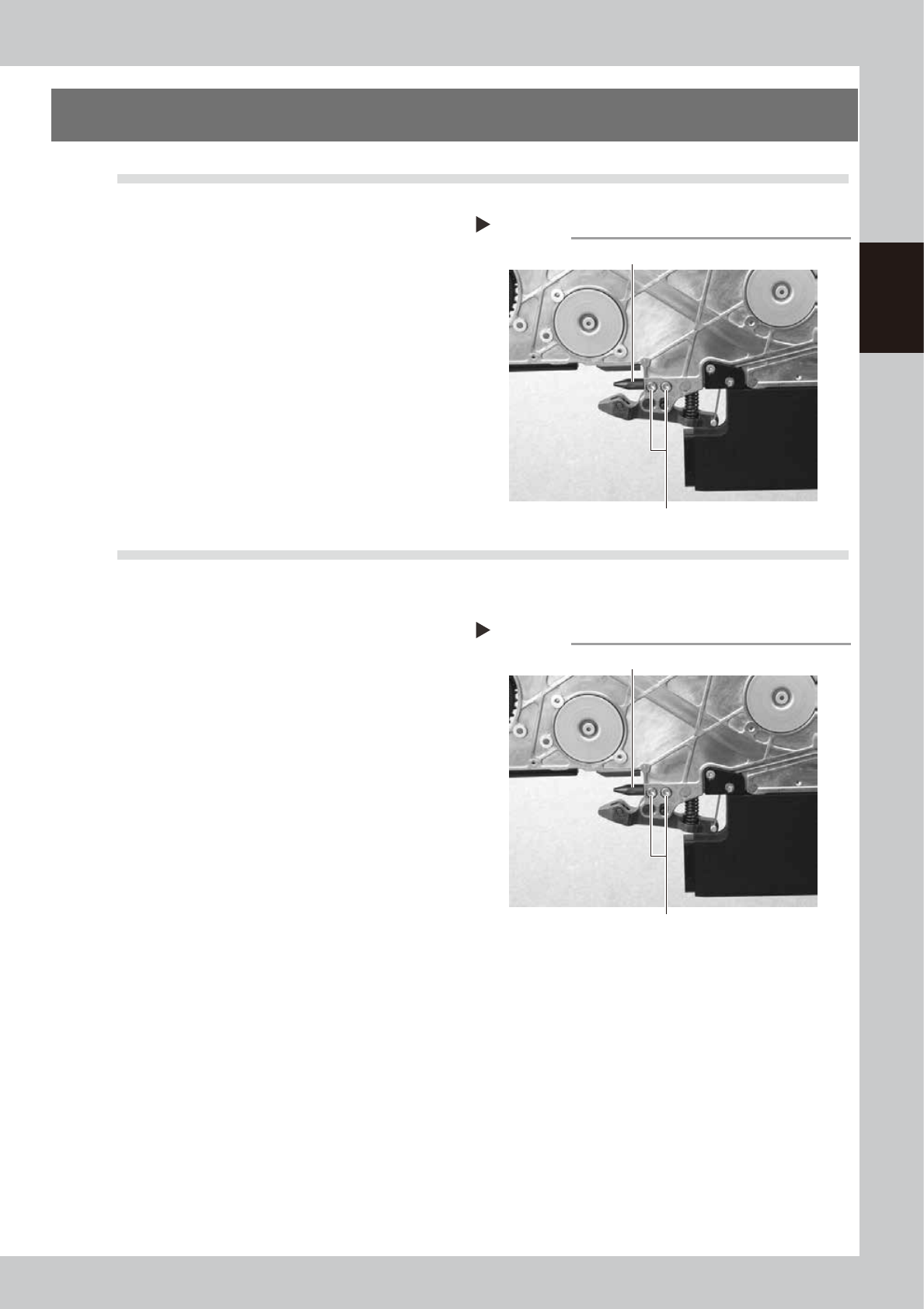

7. Tail pin
7.1 Removal
1
Remove the tail pin.
Remove the two bolts securing the tail pin
with a hexagonal wrench (2.5) and pull off
the tail pin from the body.
63222-9L-00
7.2 Installation
1
Install the tail pin.
Insert the new tail pin into the body aligning
the installation hole, and secure the tail pin
by tightening the two bolts using the
hexagonal wrench (2.5) while pressing the
tail pin all the way.
• Tightening torque: 55N·cm
63223-9L-00
Removing the tail pin
Step 1
Bolt
Tail pin
Installing the tail pin
Step 1
Bolt
Tail pin
2-14
2
Replacing parts

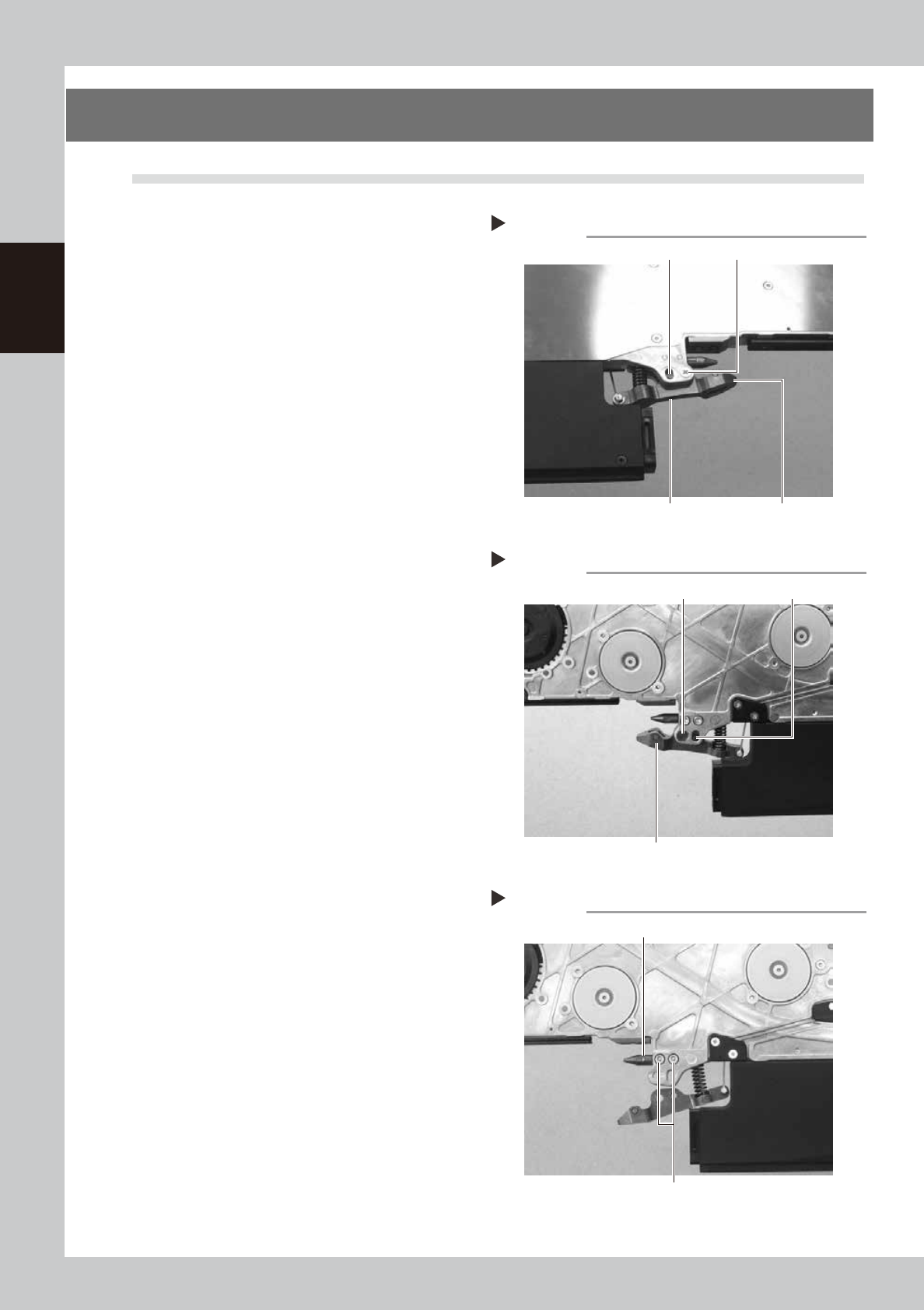

8. Under plate
8.1 Removal
1
Remove the clamping pin.
Remove the screw securing the clamping
lever assembly main axis with a Phillips
screwdriver (No. 2) and remove the
clamping pin by inserting a hexagonal
wrench or the like in the thread part.
2
Remove the torque limiter pin.
Loosen the setscrew securing the torque
limiter pin for vertical movement of the
clamping lever assembly with a hexagonal
wrench (1.5) and pull off the torque limiter
pin.
63240-9L-00
63241-9L-00
3
Remove the clamping lever
assembly.
Remove the clamping lever assembly by
pulling off the axis of the unclamping wire.
4
Remove the tail pin.
Remove the two bolts securing the tail pin
with a hexagonal wrench (2.5) and pull off
the tail pin from the body.
63224-9L-00
Removing the clamping pin and torque limiter pin
Step 1–3
Setscrew Clamping lever assembly
Torque limiter pin Screw
Removing the clamping pin and torque limiter pin
Step 1–3
Clamping pin
Clamping lever assembly
Torque limiter pin
Removing the tail pin
Step 4
Bolt
Tail pin
2-15
2
Replacing parts

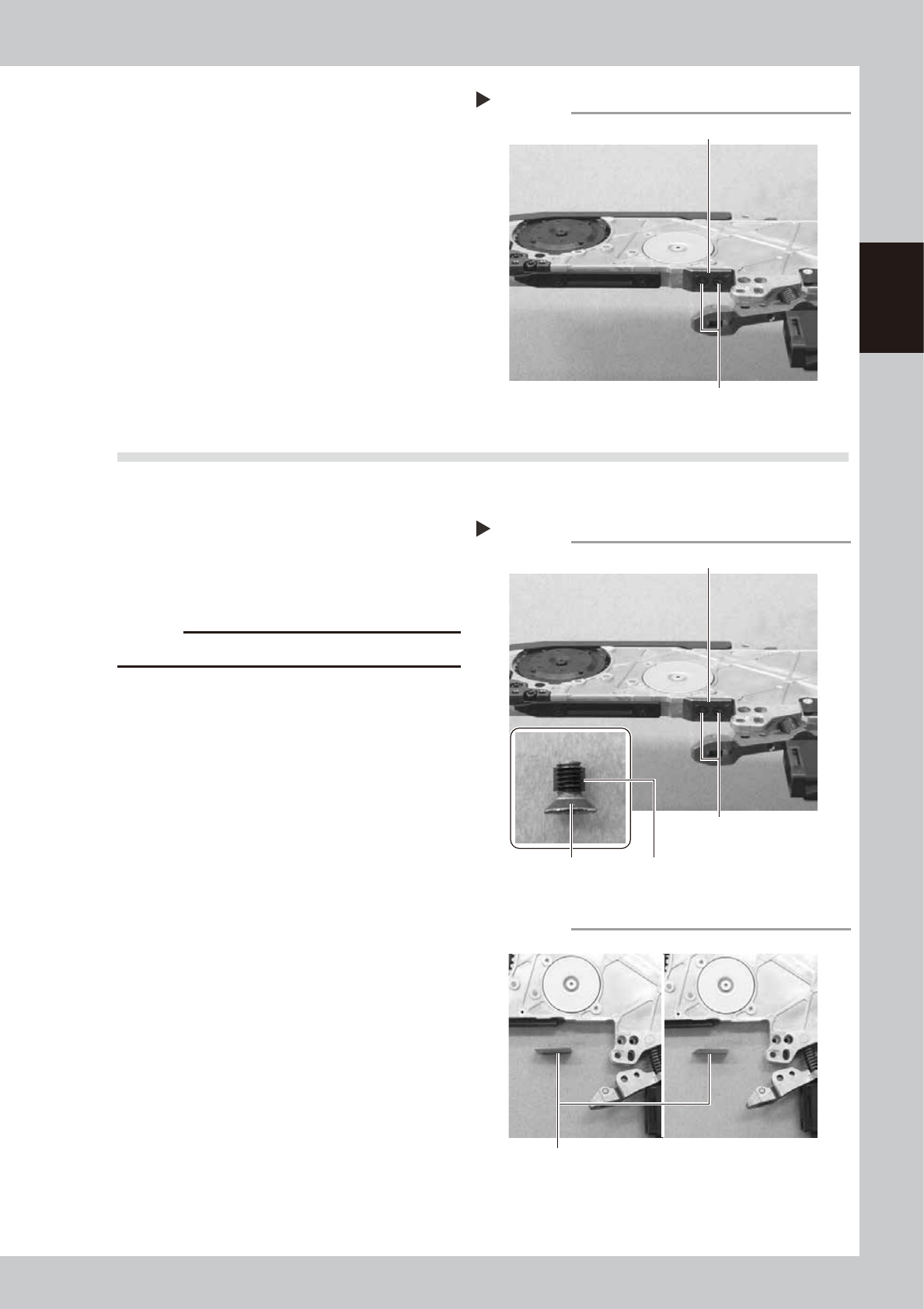

5
Remove the under plate.
Remove the two screws securing the under
plate with a Phillips screwdriver (No. 2) to
remove the under plate.
63225-9L-00
8.2 Installation
1
Install the under plate.
Apply thread lock (241) to the two screws
and install the new under plate using a
Phillips screwdriver (No. 2).
• Tightening torque: 55N·cm
63226-9L-00
c
CAUTION
Install the under plate in the correct direction.
63260-9L-00
Removing the under plate
Step 5
Screw
Under plate
Installing the under plate
Step 1
Screw
Thread lock (241)
Under plate
Screw
Direction of the under plate
Under plate
OK NG
