Before using the machine
n
How to hold the feeder
How to hold the feeder
Handle
63006-9L-10
Hold the rear portion of the feeder body with one hand and hold the feeder handle with the other hand.
c
CAUTION
· Don’t hold the clamping lever part or your hand may be pinched, causing injury.
· Take care not to hold the connector or sprocket part or the feeder may be damaged.
· Don’t touch the EL box which is heated to high temperature.
Cautions when holding the feeder
Sprocket part
Connector part
Clamping lever part
63007-9L-20
vii
Before using the machine
n

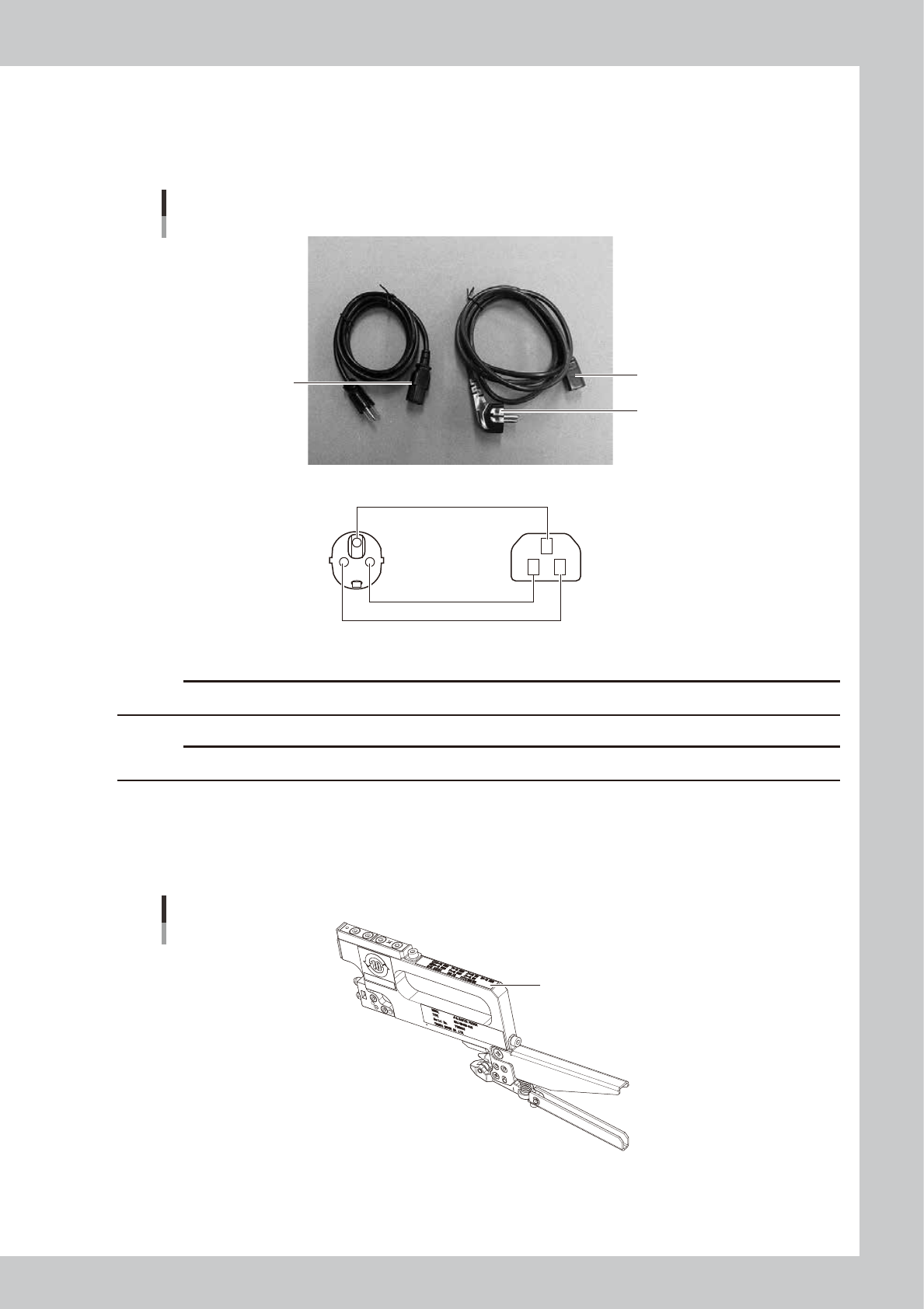

"Offline setup station"
Specifications: single-phase AC100 to 230 V ± 10%, 50Hz/60Hz, Electrical power of 170 VA (for Offline setup station.)
Two types of AC power harnesses for "Offline setup station" are available: One for Japanese market (up to AC125V) and
one for other markets (up to AC250V).
AC power harness
“Offline setup station”
AC power harness
for Japan
AC power harness
for other markets
Light blue: AC (N)
Brown: AC (L)
Green/Yellow: AC (GND)
n Wiring harness
Green/Yellow
Light blue
Brown
63009-9L-20
c
CAUTION
Take care not to connect the harness for Japan to power supply of AC125V or higher.
c
CAUTION
Make sure to ground the instrument before connecting to the power supply.
n
Master feeder
This master feeder is a jig that is intended to adjust the pickup position of the F3 feeder.
When one year or longer has elapsed from the date marked on the calibration label, it is recommended to calibrate the
master feeder.
Master feeder angle
Calibration label
63010-9L-00
viii
Before using the machine
4. Chapter Contents
Chapter 1: Handling
The chapter describes outline of F3 tape feeder, setup of components, adjustment of parts and how to deal with troubles.
Chapter 2: Replacing parts
The chapter describes installation and disassembly of F3 tape feeder parts.
Chapter 3: Application examples
The chapter describes examples of using F3 tape feeder.
