2-18 2 Replacing parts 4 Remo ve the unclamping wire. Pull out the unclamping wire from the handle mounting portion side. 63234-9L-00 9.2 Installation 1 Install the unclamping wire. Insert the new unclamping wire from th…

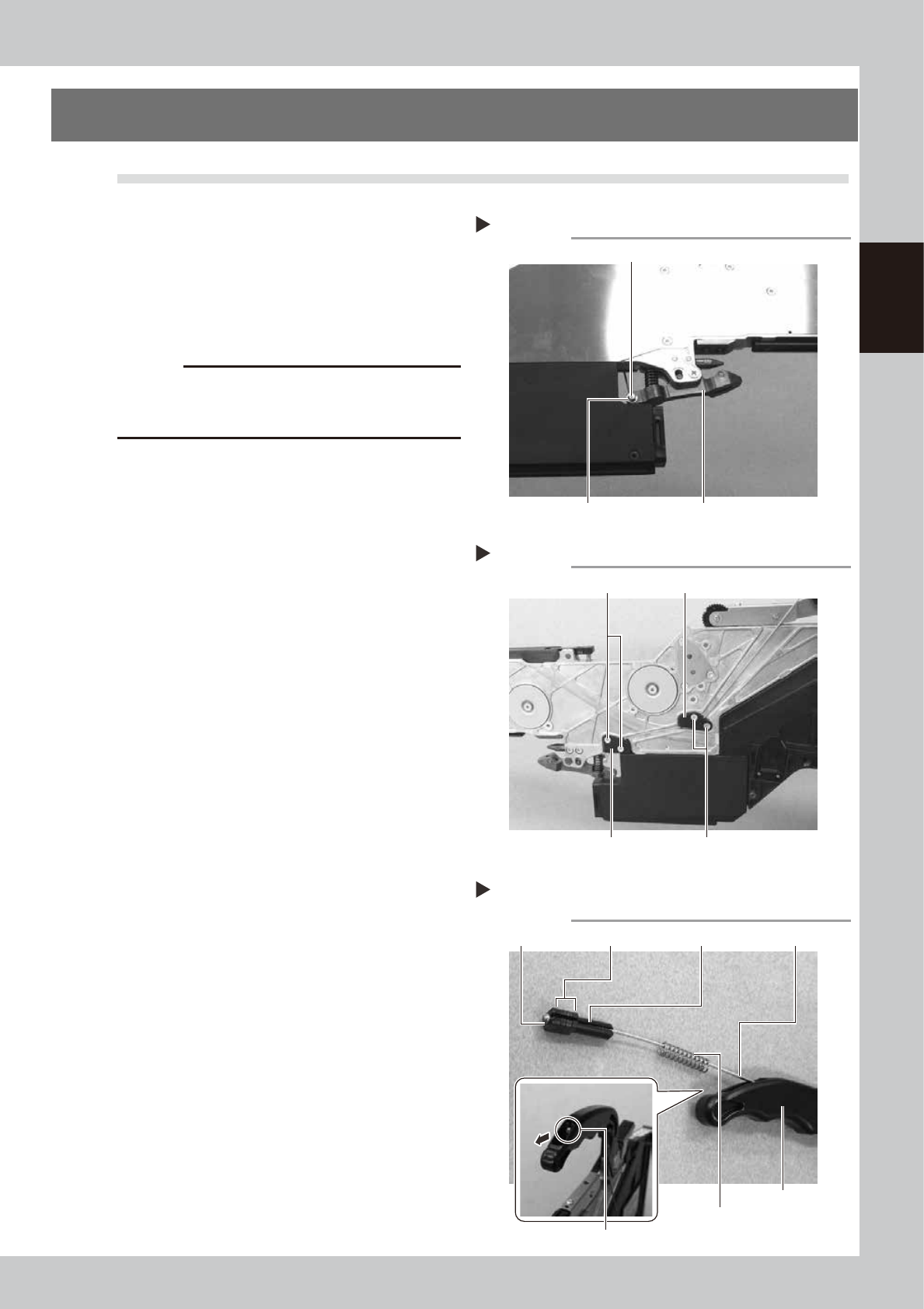

2-17

Replacing parts

9. Unclamping wire

9.1 Removal

Remove the axis of the unclamping

wire.

Remove the E-ring of the unclamping wire

attached to the clamping lever assembly

with a precision screwdriver (flat-blade) and

remove the axis of the unclamping wire.

63214-9L-00

CAUTION

· When removing the E-ring, pay attention not to lose it.

· The E-ring is an exclusive part. If it should be lost, do

not use any E-ring other than the speciﬁed one.

Remove the wire covers 1 and 2.

Remove the two each screws of the

respective wire covers with a Phillips

screwdriver (No. 1) to remove the wire

covers.

63232-9L-00

Remove the tension spacer 1,

tension spacer 2, wire tension 1

and tension spring.

Pull out the unclamping wire by plucking the

spherical portion at the handle side of the

unclamping wire between the longnose

pliers and remove the tension spacer 1,

tension spacer 2 (some pieces), wire tension

1 and tension spring.

63233-9L-00

Removing the axis of the unclamping wire

Step 1

Clamping lever assemblyE-ring

Axis of the unclamping wire

Removing the wire covers 1 and 2

Step 2

Wire cover 1 Screw

Wire cover 2Screw

Step 3

Removing the tension spacers 1 and 2,

wire tension 1 and tension spring

Tension spring

Spherical portion of the unclamping wire

Wire tension 1 Tension spacer 1 Unclamping wireTension spacer 2

Handle

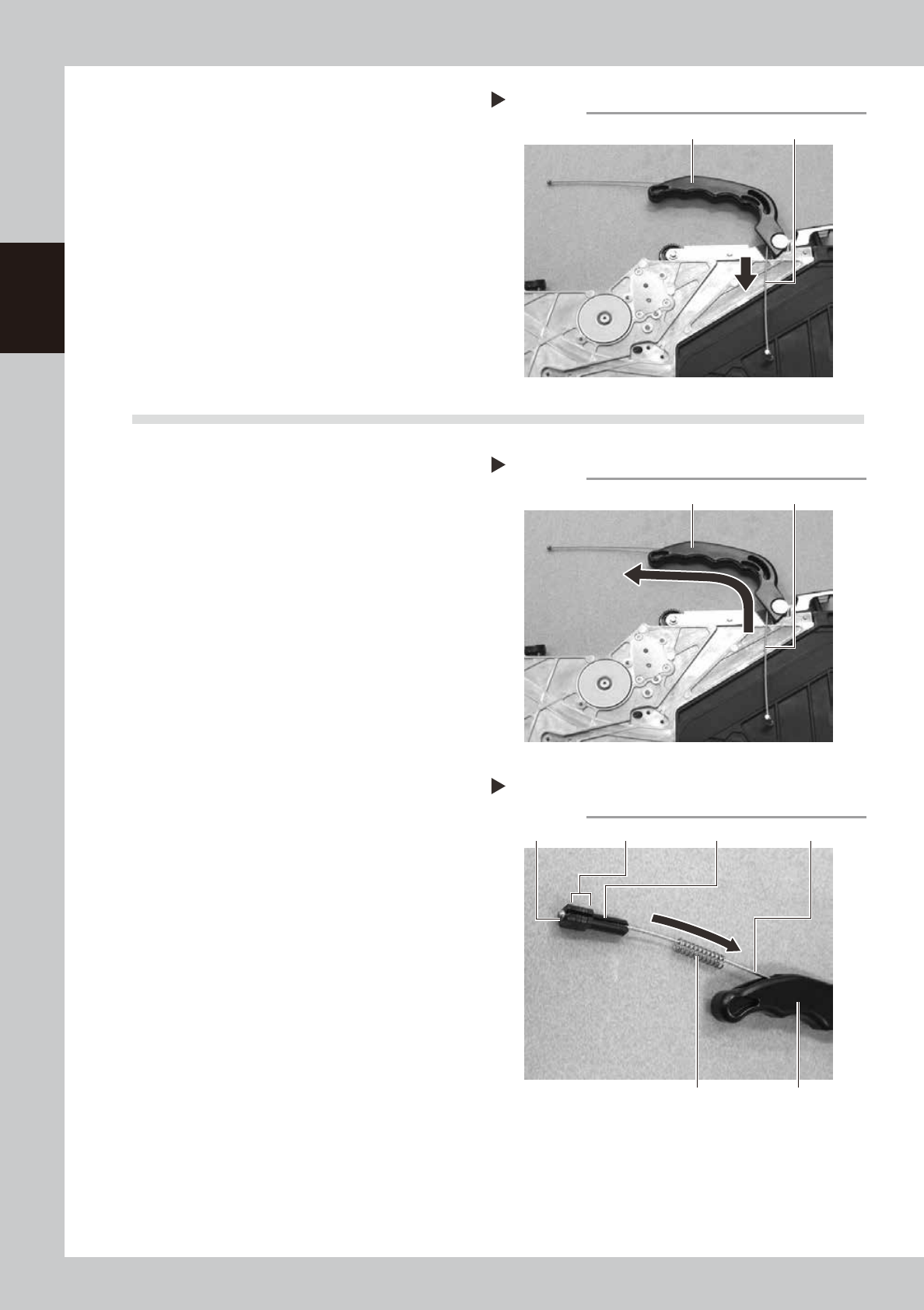

2-18

Replacing parts

Remove the unclamping wire.

Pull out the unclamping wire from the

handle mounting portion side.

63234-9L-00

9.2 Installation

Install the unclamping wire.

Insert the new unclamping wire from the

handle mounting portion side.

63235-9L-00

Install the tension spacer 1, tension

spacer 2, wire tension 1 and tension

spring.

Install the tension spacer 1, tension spacer 2

(some pieces), wire tension 1 and tension

spring at the tip of the unclamping wire and

put in the handle.

63236-9L-00

Removing the unclamping wire

Step 4

Handle Unclamping wire

Installing the unclamping wire

Step 1

Handle Unclamping wire

Step 2

Installing the tension spacers 1 and 2,

wire tension 1 and tension spring

Tension spring

Wire tension 1 Tension spacer 1 Unclamping wireTension spacer 2

Handle

2-19

Replacing parts

Install the wire covers 1 and 2.

Install the respective wire covers by

tightening the two screws with a Phillips

screwdriver (No. 1).

• Tightening torque: 30N·cm

63237-9L-00

NOTE

The wire covers 1 and 2 have grooves for passing a wire

on the back side. Be sure to pass the wire in the

grooves.

Install the axis of the unclamping

wire.

Pass the axis of the unclamping wire into the

clamping lever assembly, install the E-ring

and secure the E-ring with longnose pliers.

63238-9L-00

NOTE

Check that the distance between the under plate and

the clamping lever assembly is 20 to 21 mm when the

handle is opened. If the distance is out of the range,

adjust the distance by changing the number of the

tension spacer 2.

63239-9L-00

Installing the wire covers 1 and 2

Step 3

Wire cover 1 Screw

Wire cover 2Screw

Installing the axis of the unclamping wire

Step 4

E-ring

Axis of the unclamping wire

Clamping lever assembly

Checking the distance

Under plate

20 – 21mm

Clamping lever assembly
