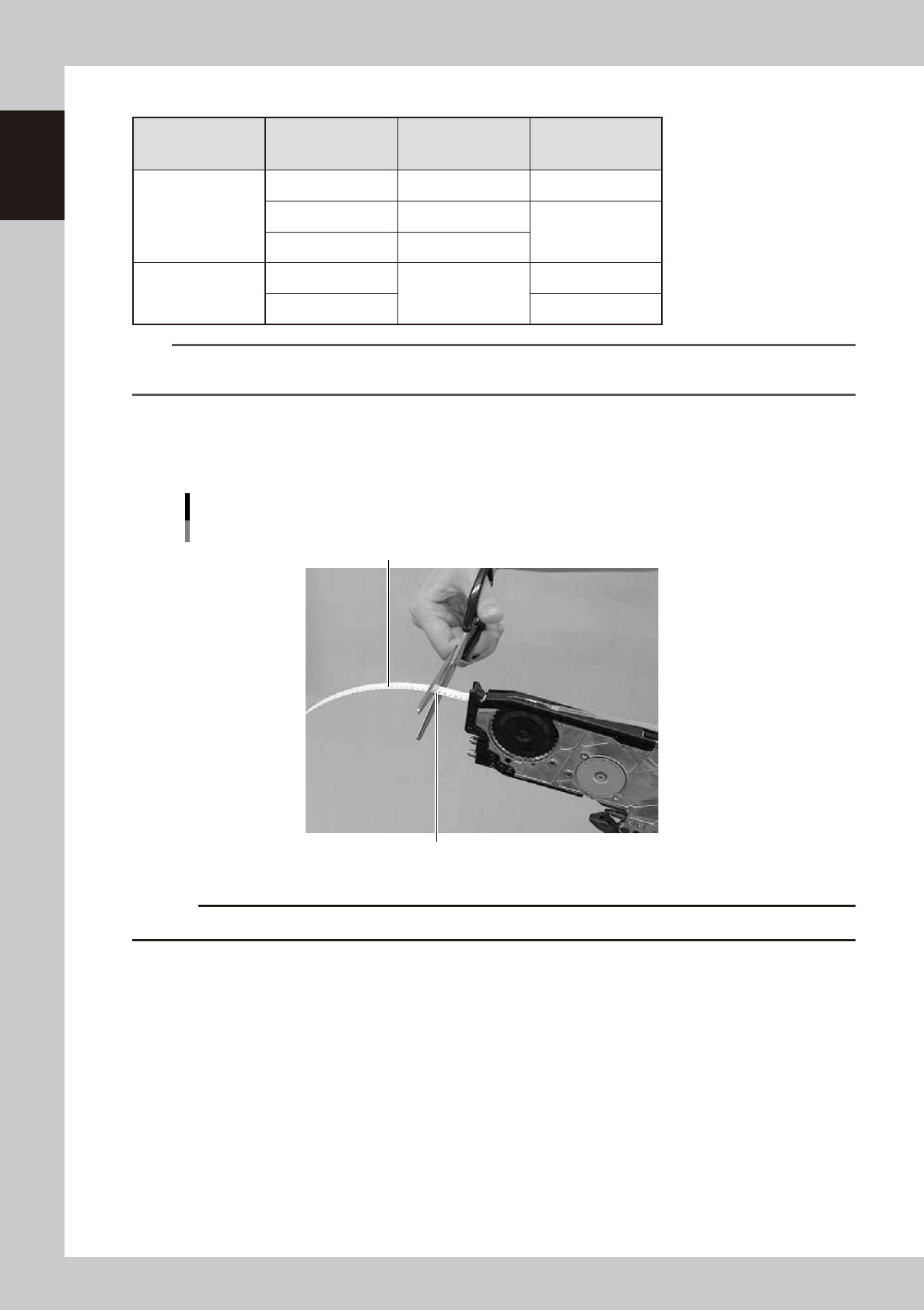

1-8
1
Handling
n
Button operations & corresponding feed pitches
Feeder Type Pitch Setting
[Feed], [BACK]
pressed 1 time
[FUNC+FEED],
[FUNC+BACK]
pressed 1 time
F3-8
0 2mm 1mm
1 1mm
Pitch setting
2 and higher 2mm
F3-1216, 24,
32, 44, 56,
72, 88, 104
0
2mm
2mm
4 and higher Pitch setting
TIP
· Continuous feed mode is possible by pressing and holding the [FEED / BACK] button.
· There is no continuous feed mode for the [FUNC + FEED] and [FUNC + BACK] buttons (even if pressed and held).
w
Cut the carrier tape.
After feeding the components to the pickup position, cut the carrier tape at a point 15mm or less from
the tape exit before setting the feeder to a machine.
Cutting the carrier tape
Carrier tape
Cut at 15mm or less from feeder
63146-9L-20
c
CAUTION
If using the carrier tape without cutting the excess part, it could block the path way for discharging the tape.

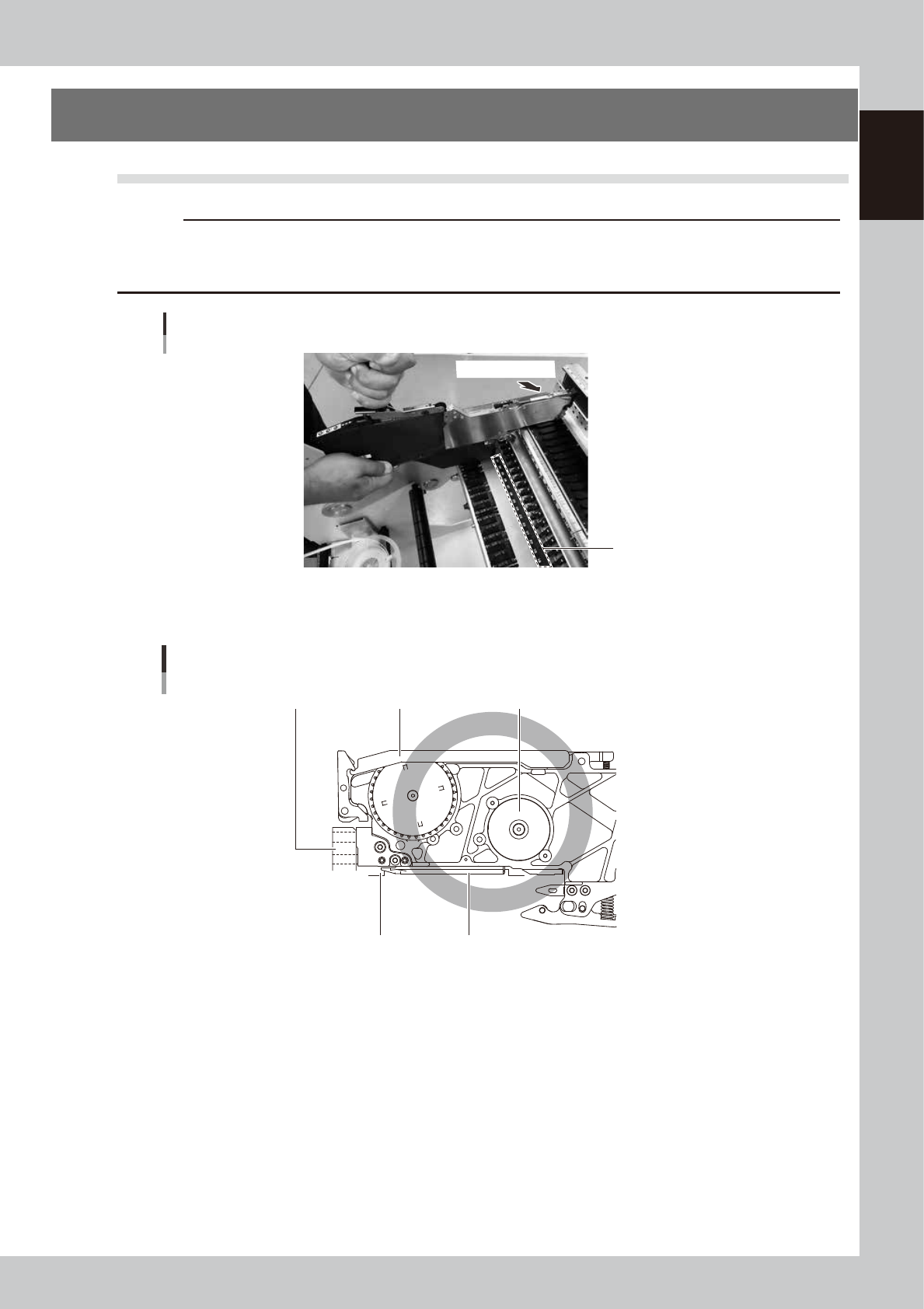

1-9
1
Handling
3. Installing the Feeder
3.1 Precautions for setting the feeder
c
CAUTION
· Don’t let the tip of the carrier tape stick out too much. We recommend that the tip of the carrier tape does not stick
out of the feeder end.
· Align the connector portion of the feeder with the No. (setup location) of the cart before installation.
Installing on the mounter
No.
View on arrow A
63103-F3-00
Check that the tape guide assembly is locked when seen from the side (view on arrow A) when the feeder is set
and that the feeder is inserted all the way to the end and the under rail is engaged with the guide securely.
Normal condition (view on arrow A)
Tape guide assembly Feeder bodyPlate
Guide Under rail
63140-9L-10

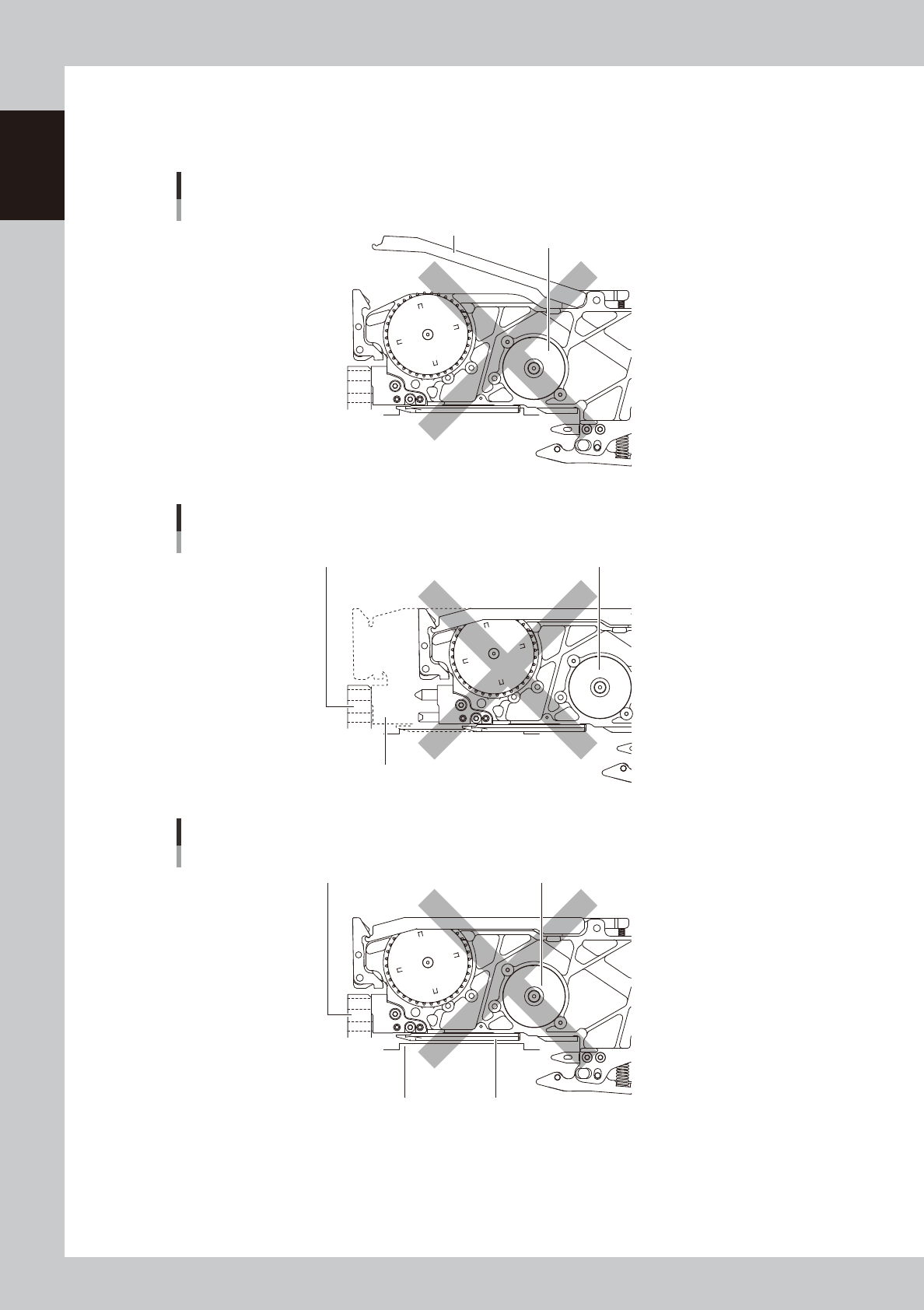

1-10
1
Handling
Reset the feeder in the following cases.
· The tape guide assembly is not locked.
· The feeder is not inserted to the end.
· The under rail is not engaged with the guide.
The tape guide assembly is not locked (view on arrow A)
Tape guide assembly
Feeder body
63141-9L-10
The feeder is not inserted all the way to the end (view on arrow A)
Plate Feeder body
Proper position of the feeder
63142-9L-10
The under rail is not engaged with the guide (view on arrow A)
Plate Feeder body
Guide Under rail
63143-9L-10
