2-7
2
Replacing parts
4. Tape guide rear lever
4.1 Removal
1
Lift the tape guide assembly.
Open the tape guide front lever and lift the
tape guide assembly.
63202-9L-10
2
Remove the tape guide assembly.
Push down the tape guide rear lever and
remove the tape guide assembly from the
body.
63203-9L-10
3
Remove the tape guide rear lever.
Loosen the setscrew securing the shaft for
the tape guide rear lever with a hexagonal
wrench (1.5) and pull off the shaft.
63210-9L-00
c
CAUTION
There is a spring inside the tape guide rear lever. The
tape guide front lever or spring may pop out due to
spring force when the shaft is removed. Take care not
to lose the parts.

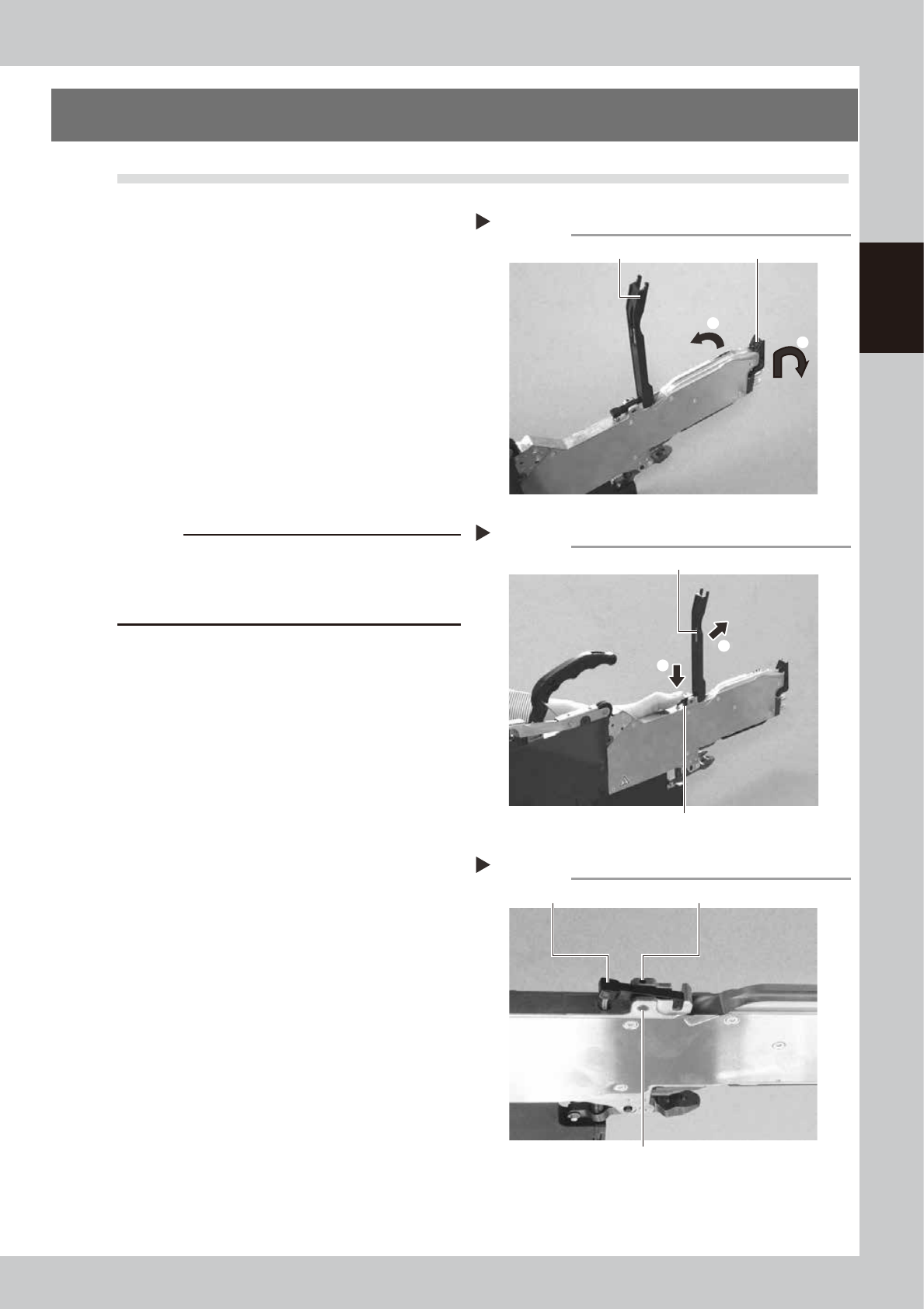

Step 1
2
Lifting the tape guide assembly
Tape guide assembly Tape guide front lever
1
Step 2
Removing the tape guide assembly
Tape guide rear lever
Tape guide assembly
2
1
Step 3
Removing the tape guide rear lever
Tape guide rear lever Setscrew
Shaft
2-8
2
Replacing parts
4.2 Installation
1
Install the tape guide rear lever.
Insert the spring on the depressed portion of
the new tape guide rear lever and the
depressed portion of the body, align the
position of the pin insertion hole of the body
and the pin insertion hole of the tape guide
front lever while holding down the tape
guide rear lever, insert the shaft and tighten
the setscrew using the hexagonal wrench
(1.5) to secure the pin.
• Tightening torque: 40N·cm
63211-9L-00
2
Install the tape guide assembly.
Push down the tape guide rear lever and
install the tape guide assembly to the body.
63208-9L-10
3
Secure the tape guide assembly.
Push down the tape guide assembly and
check that it is locked with the tape guide
front lever.
63209-9L-10
c
CAUTION
Check that the sprocket assembly does not interfere
with the tape guide assembly after the installation.

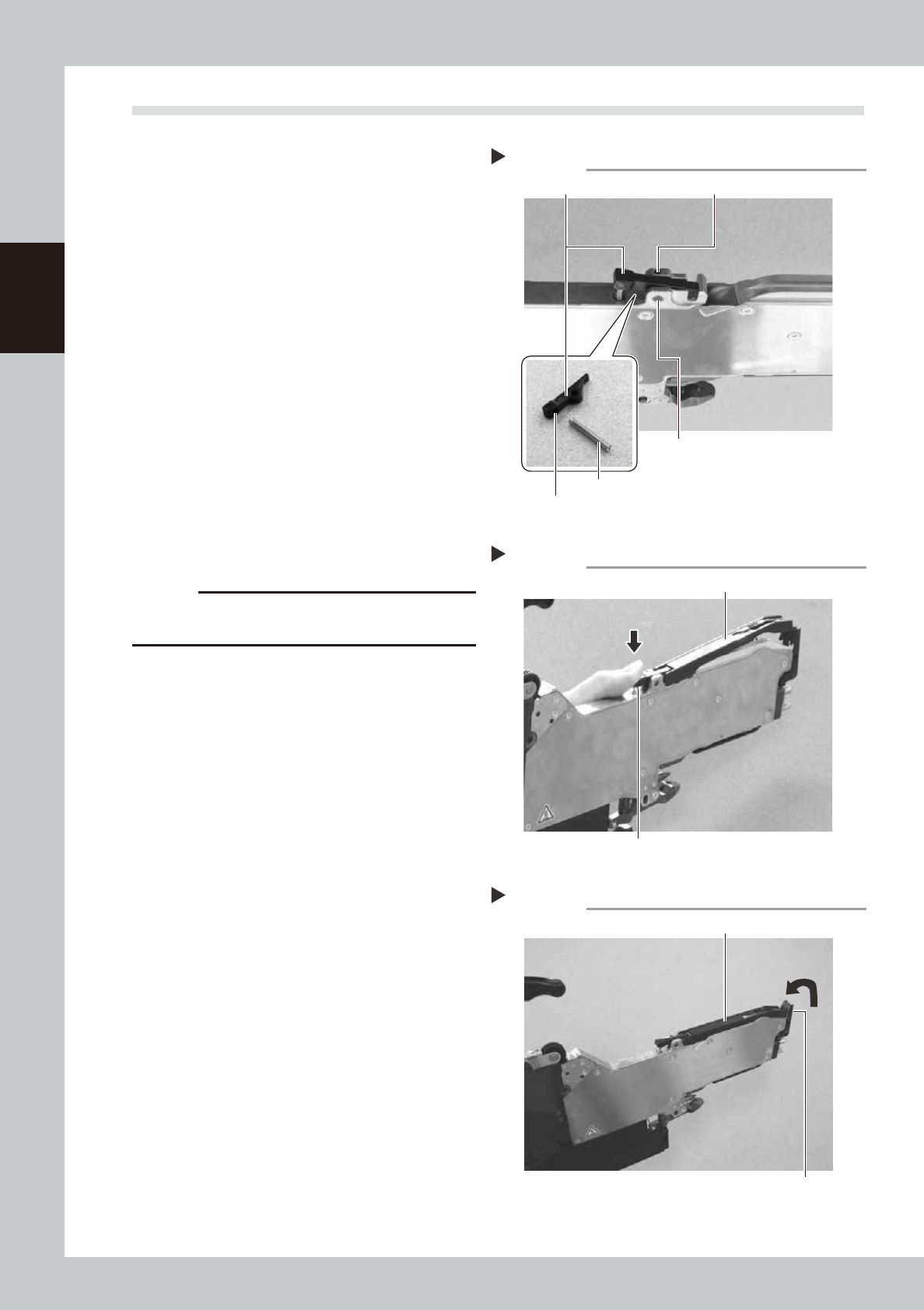

Step 3
Installing the tape guide assembly
Tape guide rear lever
Tape guide assembly
Step 4
Installing the tape guide assembly
Tape guide front lever
Tape guide assembly
Installing the tape guide rear lever
Step 1
Depressed portion
Spring
Tape guide rear lever Setscrew
Shaft
2-9
2
Replacing parts
5. Under rail
5.1 Removal
1
Remove the under rail.
Remove the two screws securing the under
rail with a Phillips screwdriver (No. 1) to
remove the under rail.
63212-9L-10
5.2 Installation
1
Install the under rail.
Apply thread lock (241) to the two screws
and install the new under rail using the
Phillips screwdriver (No. 1).
• Tightening torque: 30N·cm
63213-9L-10

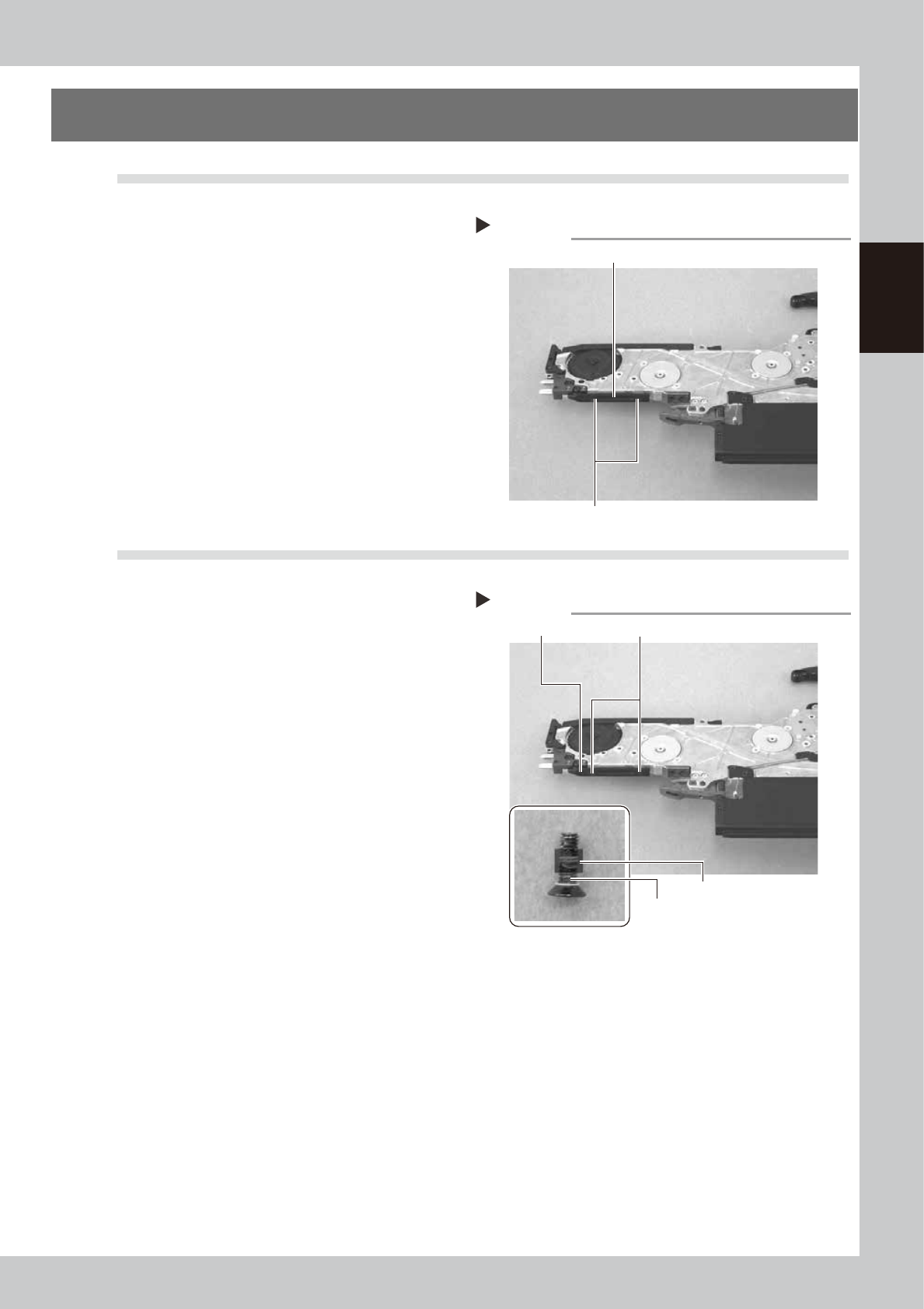

Step 1
Removing the under rail
Screw
Under rail
Step 1
Installing the under rail
Under rail Screw
Thread lock (241)
Screw
