Chapter 1 Handling

Contents

1. Devices for F3 feeder 1-1

1.1 “Set-up station on machine” 1-1

1.2 “Offline setup station” 1-3

2. Setting the tape 1-4

3. Installing the Feeder 1-9

3.1 Precautions for setting the feeder 1-9

3.1.1 Installing to the mounter or changeable feeder bank 1-11

3.1.2 Setting to the station 1-13

4. Adjusting the tape feed pitch 1-14

4.1 Adjusting on the mounter 1-14

4.2 Adjusting on the station 1-15

F3 Feeder How to exchange a 12mm feeder and a 16mm feeder

1-17

6. Disposal of used top tape 1-18

7. Splicing 1-19

8. Daily Inspection and Maintenance 1-21

8.1 Daily inspection 1-21

8.2 Precautions for maintenance 1-22

8.3 Cleaning the tape guide assembly 1-23

8.4 Indicator of the feeder 1-24

1-1

Handling

1. Devices for F3 feeder

The following explains optional devices for setting tapes on the F3 feeder, pitch adjustment and setup.

1.1 “Set-up station on machine”

The “Set-up station on machine” is directly installed on a machine to set the tape to the feeder.

It is installed on the left side of a machine (front side and rear side alike) and tape feeding or pitch can be

adjusted. Tape reel can be temporarily placed on the provided tape reel holder for operation.

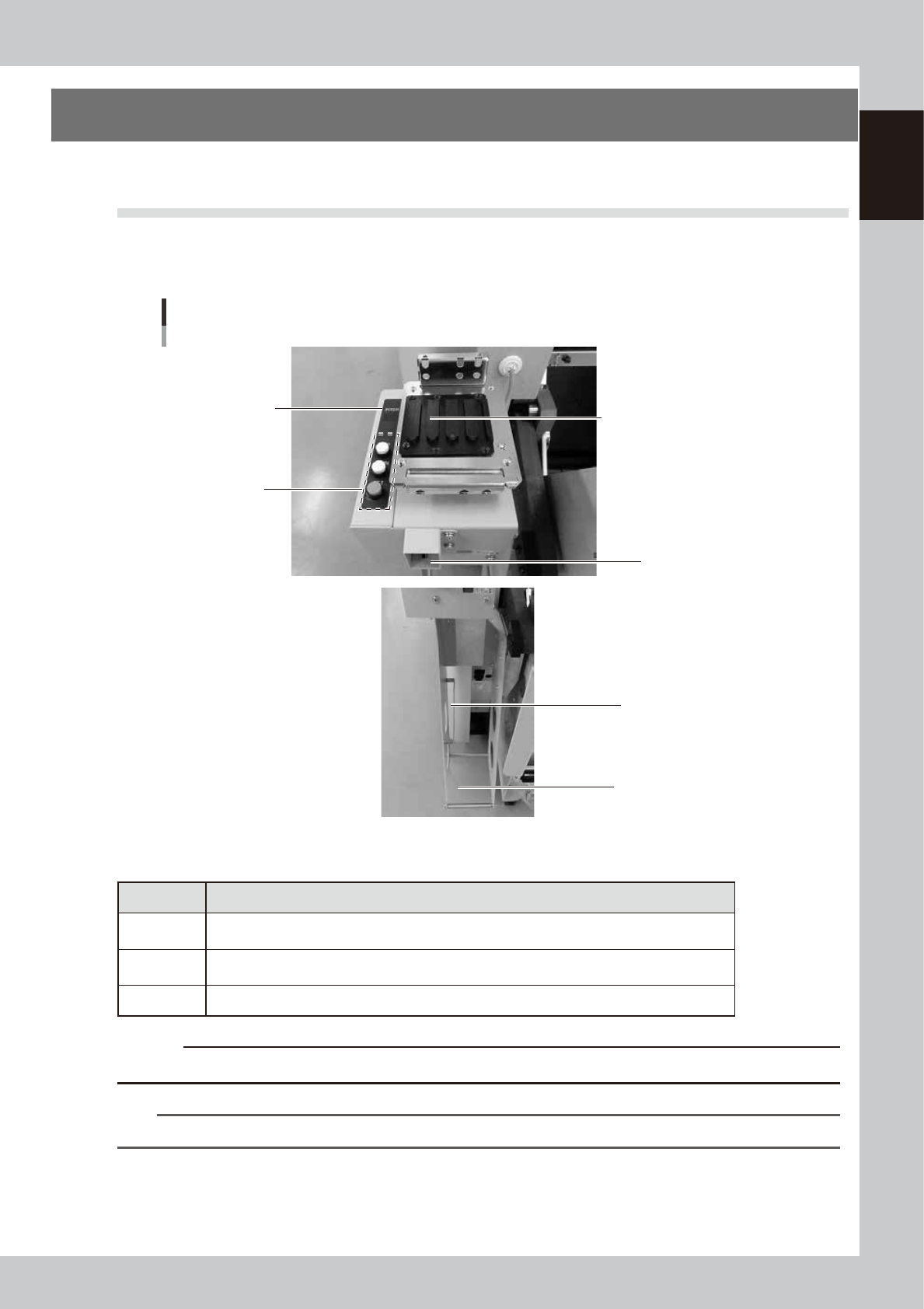

Set-up station on machine

Display

(Pitch indication)

Panel button

(Pitch setting)

Dedicated tape

reel holder

Guide rail

(Set the feeder on

the leftmost rail)

Connector for

power/signal

7-inch tape reel set portion

15-inch tape reel set portion

63131-F3-00

Panel button

Button Function

Increases the feeder pitch in increments of 4mm.

(Up to 4 mm in increments of 2 mm for 8 mm feeder)

DOWN

Decreases the feeder pitch in increments of 4mm.

(Up to 2mm in increments of 2 mm for of 8 mm feeder)

SET

Sets the feeder pitch.

CAUTION

Do not remove the feeder when pitch data is being loaded.

NOTE

Feed pitch options that can be adjusted with the panel buttons vary depending on feeder size.
