2-28
2
Replacing parts

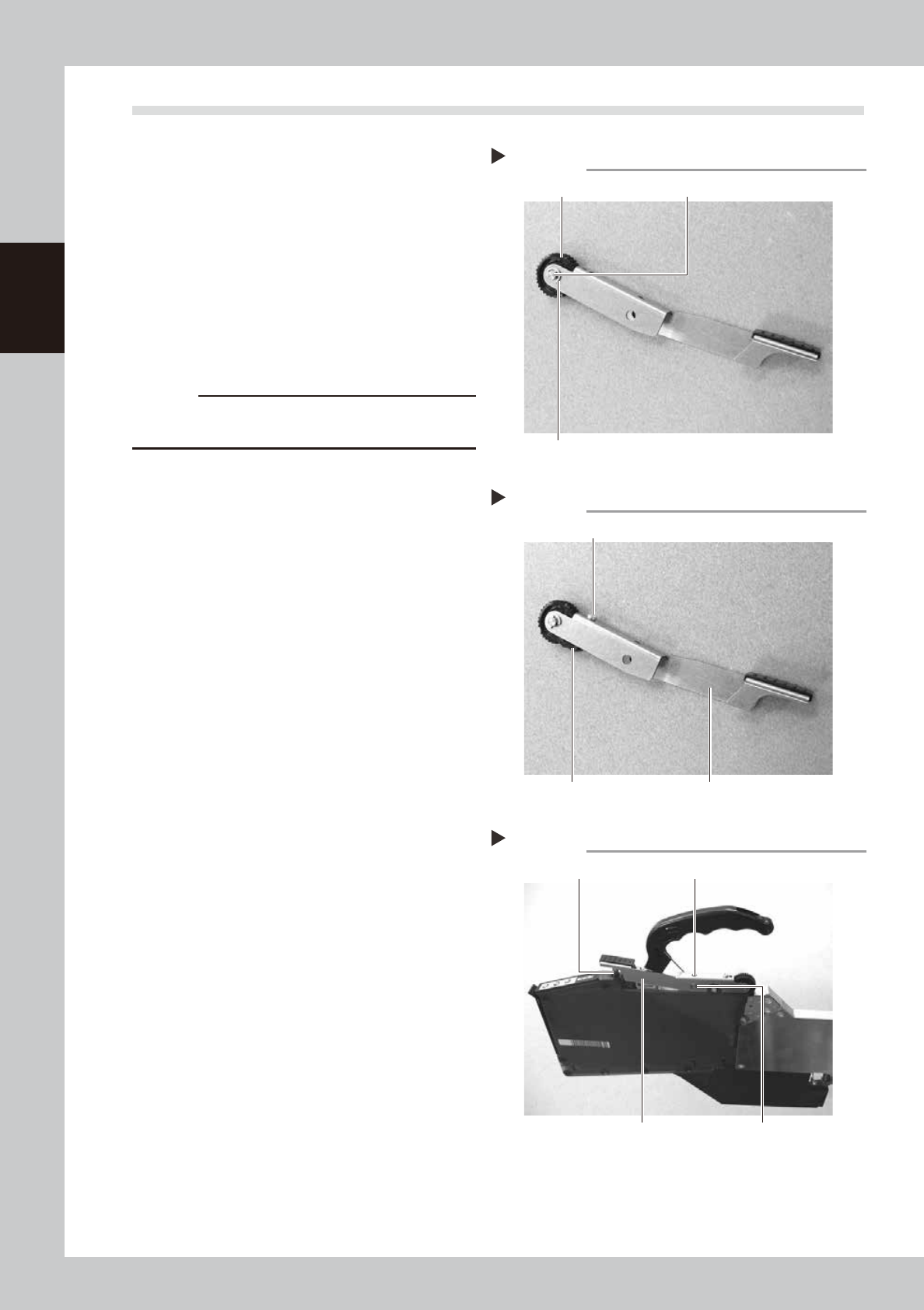

13.2 Installation
1
Install the P/O2 roller.
Install the new P/O2 roller, insert the P/O
lever 1 shaft and install the E-ring with the
longnose pliers.
63254-9L-00
2
Install the P/O tooth 2 block.
Install the P/O lever assembly and P/O tooth
2 block by tightening the screw with the
Phillips screwdriver (No. 1).
• Tightening torque: 30N·cm
63255-9L-00
c
CAUTION
Turn the P/O2 roller and check if the P/O tooth 2 block
does not interfere with the P/O2 roller.
3
Install the P/O lever assembly.
Insert the P/O lever 2 shaft and secure it by
tightening the setscrew with a hexagonal
wrench (1.5).
• Tightening torque: 30N·cm
63256-9L-00
Installing the P/O2 roller
Step 1
P/O2 roller P/O lever 1 shaft
E-ring
Installing the P/O tooth 2 block
Step 2
P/O lever assembly
Screw
P/O tooth 2 block
Installing the P/O lever assembly
Step 3
P/O lever 2 shaft
Setscrew
P/O lever assembly
Spring
2-29
2
Replacing parts

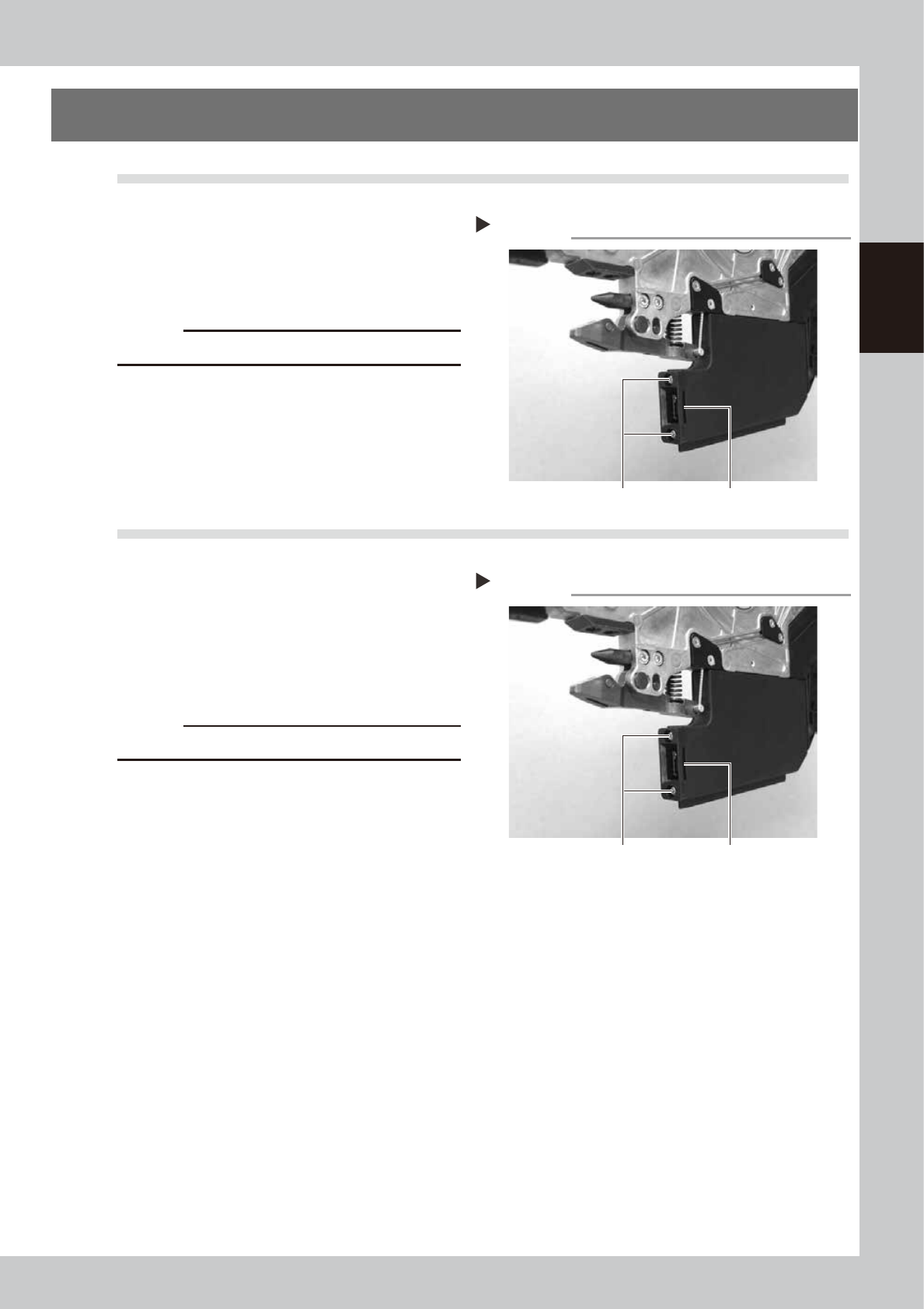

14. Board connector
14.1 Removal
1
Remove the board connector.
Remove the two screws securing the
connector with the Phillips screwdriver (No.
1) and pull out the connector.
63257-9L-00
c
CAUTION
Do not touch the terminal inside the board connector.
14.2 Installation
1
Install the board connector.
Fit the new connector into the installation
groove of the EL box and install by
tightening the two screws with the Phillips
screwdriver (No. 1).
• Tightening torque: 30N·cm
63258-9L-00
c
CAUTION
Do not touch the terminal inside the board connector.
Removing the board connector
Step 1
Screw Board connector
Installing the board connector
Step 1
Screw Board connector
