1-18
1
Handling
6. Disposal of used top tape
Dispose of used top tape periodically.
n
NOTE
If too much used top tape accumulates, the tail cover may be automatically opened due to pressure. Cut off the
used top tape with the edge cutter inside the tail cover.
1
Check the used top tape.
Open the tail cover and check if there is much used top tape inside.
Checking the used top tape
Tail cover
63117-F3-00
2
Cut off the used top tape.
Cut the top tape with the edge cutter inside the tail cover.
Cutting the used top tape
Edge cutter Top tape
Tail cover
63118-9L-00
3
Close the tail cover.
1-19
1
Handling
7. Splicing
n
Precautions for connecting a tape
Be sure to use a tape connecting jig when connecting tapes.
Tape connecting jig
Connecting tape
Tape connecting jig
(KJ3-MY020-XXX TAPE CONNECTOR)
Cut here
64905-9L-00
1
Pull out the end of tape in use.
Pull out the end of tape in use.
2
Cut the edge of new tape and the end of tape in use with scissors.
Cut the tape just before the part of the tape with the components. If cut slightly closer to the
component side from a tape feed hole, the tape can be smoothly connected. (See the figure above)
3
Set the tape in the tape connecting jig.
Set the edge of a new tape and the end of tape in use in the clamping part.
Set both tapes in the clamping part of the connecting jig as shown in the figure below.
The clamping part has two pins. Gently slide the tapes back and forth and fit the feed holes into the
pins.
Setting the tape connecting jig
Edge of new tape
End of tape in use
Tape connecting jig
63002-9L-10
1-20
1
Handling
4
Connect the tape.
Connect the top tape side and the carrier tape side with the connecting tape in the following
procedure.
1. Peel off the ground paper (thick side) from the connecting tape.
2. Stick the connecting tape to the top tape side while pressing the lower edge of the connecting
tape against the upper side of the jig.
3. Fold over the connecting tape along the edge, and make sure it sticks to the carrier tape side as
well. In this state, firmly connect both sides of the carrier tape side and top tape side.
4. Peel off the ground paper (thin side) from the connecting tape.

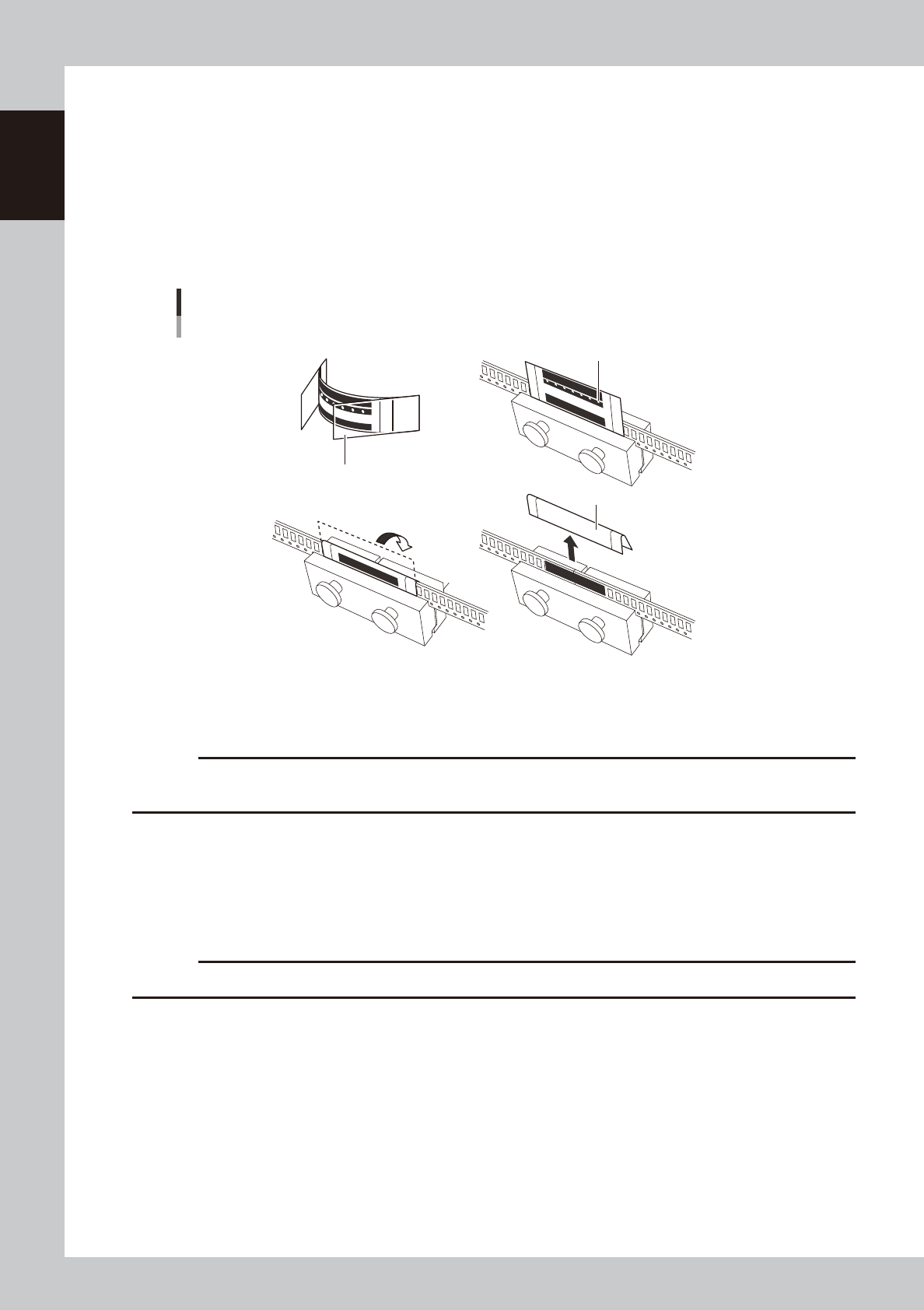

Connecting the tape
Ground paper (thick side)
Ground paper (thin side)
This tape is to be discarded.
1 2
3 4
64239-9L-00
5
Remove the tape from the tape connecting jig.
Remove the connected tape from the clamping part of the tape connecting jig.
c
CAUTION
If two pieces of the tape are connected without using the jig, pitch difference, misalignment of the tape or removal of
the tape may be caused. Take care or component pickup error may be caused.
n
Splice sensor
An optional splice sensor can be attached to a feeder without a splice sensor.
Please contact Yamaha or its dealer if you want to install a splice sensor.
c
CAUTION
The jigs mentioned above are not necessary for connecting tapes when using a splice sensor.
