1-10
1
Handling
Reset the feeder in the following cases.
· The tape guide assembly is not locked.
· The feeder is not inserted to the end.
· The under rail is not engaged with the guide.
The tape guide assembly is not locked (view on arrow A)
Tape guide assembly
Feeder body
63141-9L-10
The feeder is not inserted all the way to the end (view on arrow A)
Plate Feeder body
Proper position of the feeder
63142-9L-10
The under rail is not engaged with the guide (view on arrow A)
Plate Feeder body
Guide Under rail
63143-9L-10
1-11
1
Handling
3.1.1 Installing to the mounter or changeable feeder bank
c
CAUTION
Be sure to set the tape with a set-up station on machine or an Offline setup station before installing the feeder to a
mounter or a changeable feerder bank. It is impossible to set up a tape on the mounter.
e
1
Press the emergency stop button.
c
CAUTION
Installing a feeder unit without stopping the mounter might cause items to be entangled in the machine.
2
Clean the surface of the feeder plate.
Parts or debris caught in the machine will tilt the feeder, interfering with stable pickup and the feeder
plate or under rail may be damaged.
c
CAUTION
· Foreign matter (components or debris) around the connector part might enter the connector and cause short-
circuit.
· Take care not to let foreign matter enter the connector portion during cleaning.

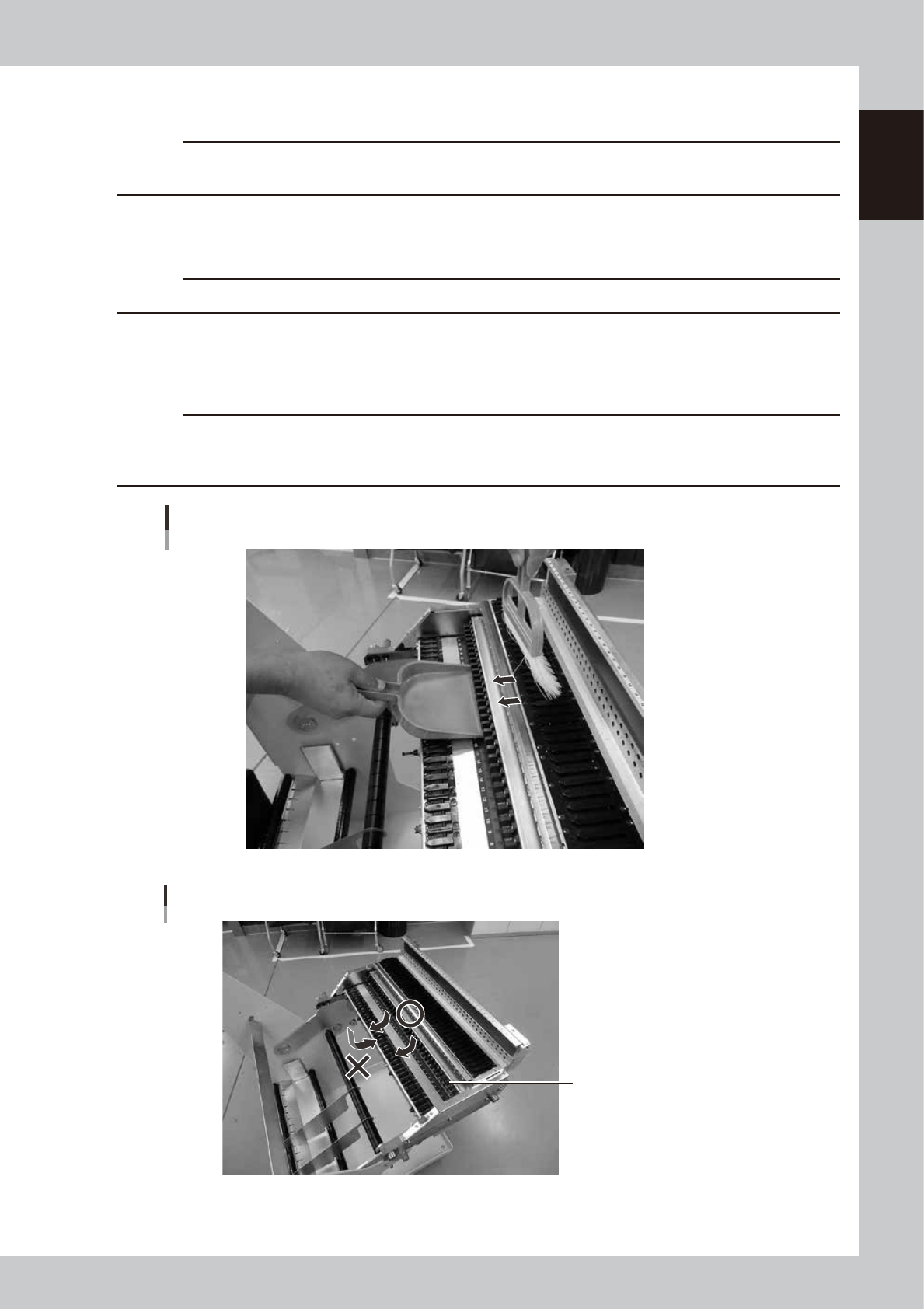

Removing foreign matter on the upper feeder plate
63003-F3-00
Removing foreign matter on the lower feeder plate
Connector part
63004-F3-00
1-12
1
Handling
3
Set the feeder.
Lift the handle, align the under rail, tail pin and connector on the lower part of the feeder, and insert all
the way.

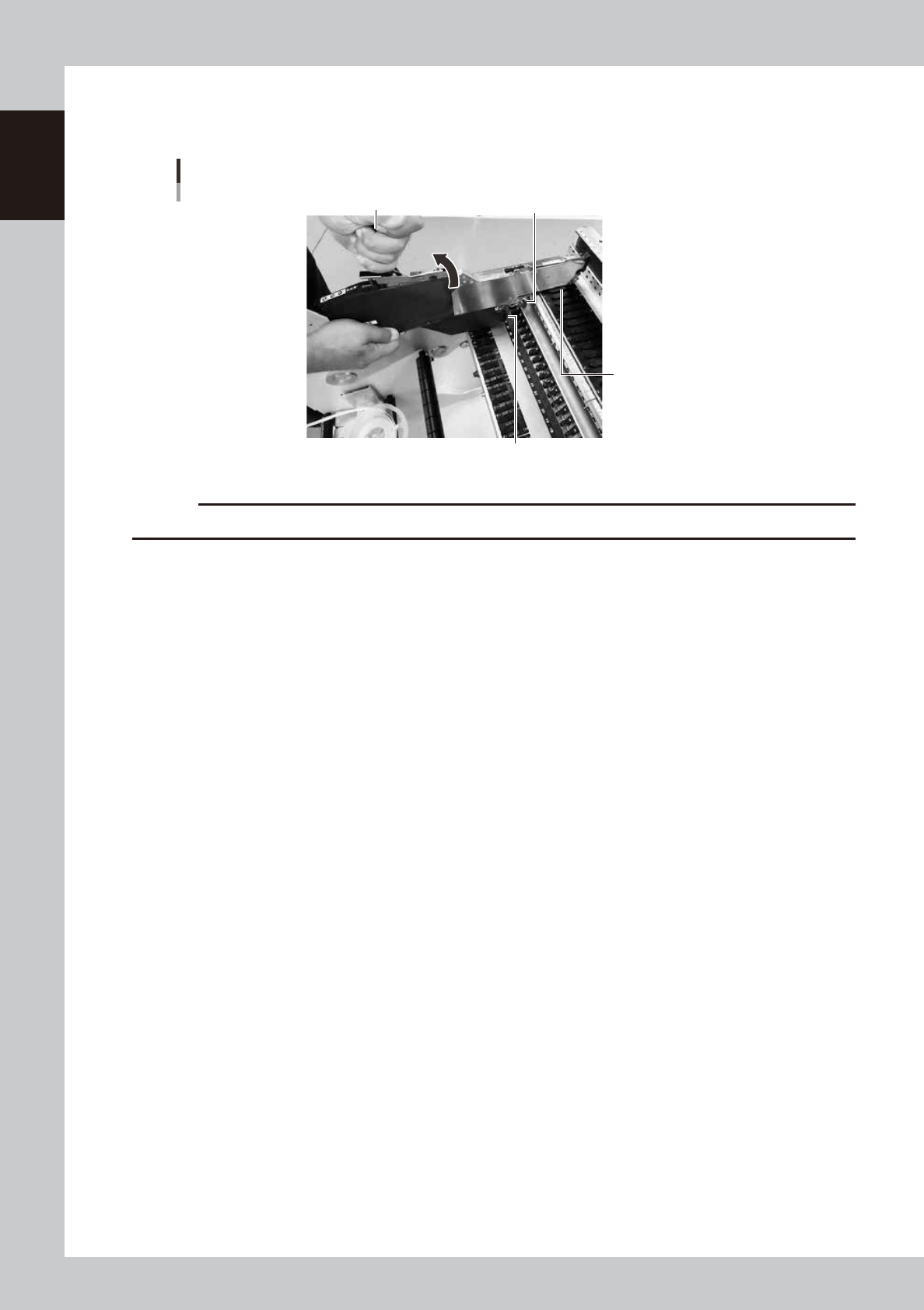

Setting the feeder
Handle Tail pin
Connector
Under rail
63111-F3-00
c
CAUTION
The clamping lever assembly does not fully open if the handle is not fully opened.
4
Lock the clamping lever assembly.
Lower the handle and lock the clamping lever assembly to a mounter or a changeable feeder bank. If
it is not properly set, the assembly may come off during installation or operation.
