1-3
1
Handling
1.2 “Offline setup station”
The “Offline setup station” can supply power by itself to the feeder and this allows setting the tape to the
feeder without a machine. The tape feeding or the pitch can be set.
n
NOTE
Functions of the panel buttons and display indication of the Offline setup station are the same as those of "set-up
station on machine".

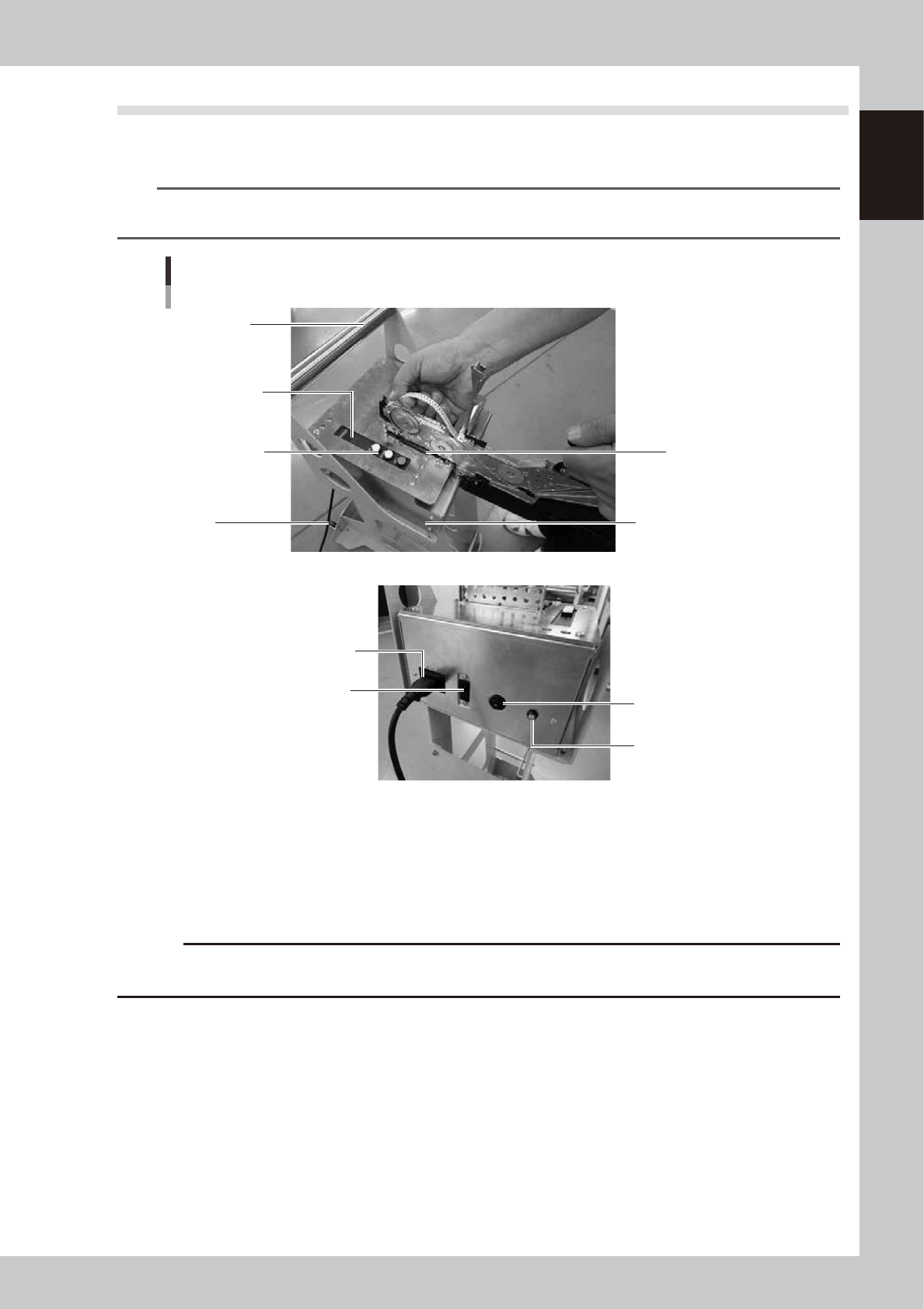

Offline setup station
Display
(pitch indication)
Panel button
(pitch setting)
Power cable
Power switch
Rear side of the Offline setup station
Guide rail
(Set the feeder on
the leftmost rail)
Temporal tape holder
Fuse (2A)
Power lamp
Handle
Caster
63132-F3-00
Power cable
There are two types: One is for Japan and the other is for overseas market. Refer to “Power supply for Offline setup
station” of “Before using the machine” for details.
Fuse (2A)
The fuse is a resettable one. Press the protruded portion to reset the fuse when it blows.
c
CAUTION
Install the Offline setup ststion in a safe place before use. If it is used in an unsafe place such as on an unstable table,
it may fall off resulting in injury. Organize the power cable with safety in mind.
1-4
1
Handling
2. Setting the tape
c
CAUTION
Be sure to use a set-up station on machine or Ofline setup station for setting up a tape. It is impossible to set up a tape
on the mounter.
1
Set the feeder.
Set the feeder to a set-up station on machine or an Offine setup station. Refer to ”3.1.2 Installing to a
station” for setup of the feeder.

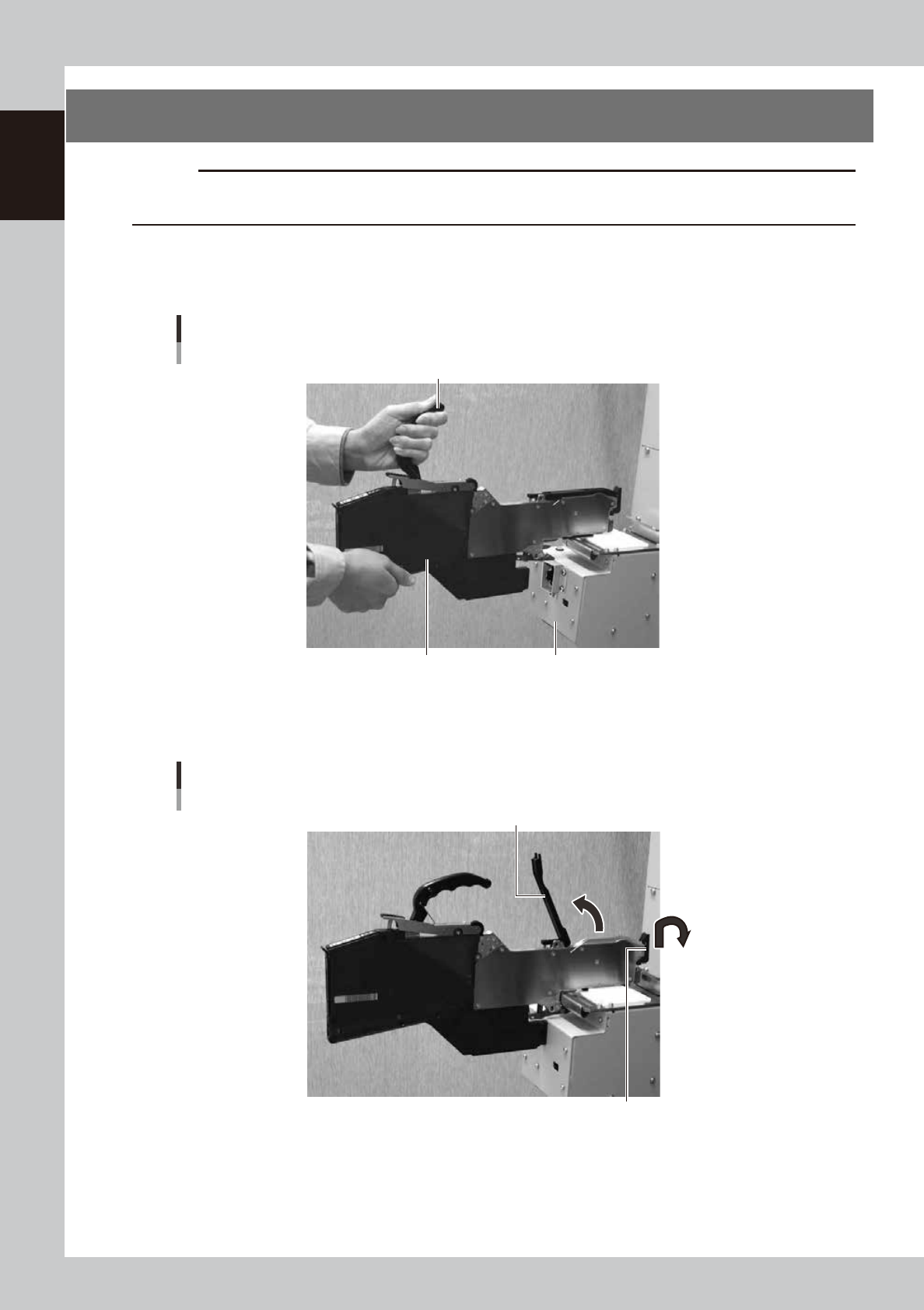

Setting the feeder
Handle
Feeder Set-up station on machine
63106-9L-10
2
Lift the tape guide assembly.
Open the tape guide front lever and lift the tape guide assembly.
Lifting the tape guide assembly
Tape guide assembly
Tape guide front lever
63101-9L-10
3
Set the tape reel.
Set the tape reel for operation to the dedicated reel holder of the set-up station on machine.
1-5
1
Handling
4
Set the tape on the tape feeder.
Insert into the tape opening.

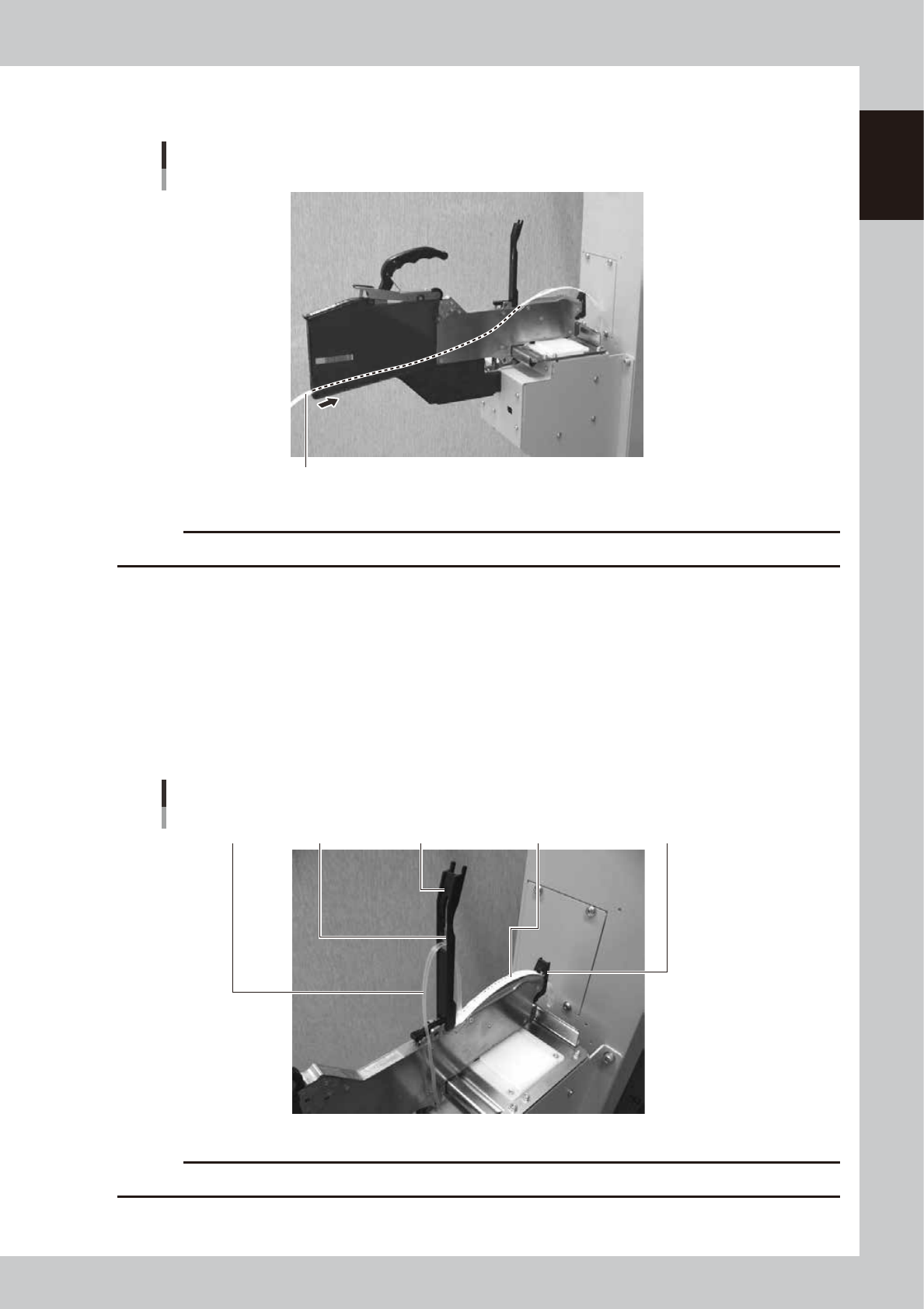

Installing the tape
Tape
63102-9L-00
c
CAUTION
Take care not to install the tape upside down.
5
Peel off the top tape.
A tape has two layers; the ”carrier tape” contains electronic components and the ”top tape” covers
the components. Peel off the tape to separate the layers.
6
Set the carrier tape.
Insert the carrier tape into the hole of the tape guide front lever.
7
Set the top tape.
Pass the top tape into the notch of the tape guide assembly. Pull the top tape long enough to reach
the winding roller.
Carrier tape, top tape
Tape guide assembly Bottom plateTop tape Carrier tape Tape guide front lever
63123-9L-00
c
CAUTION
Take care not to deform the bottom plate inside the tape guide assembly.
