1-13

Handling

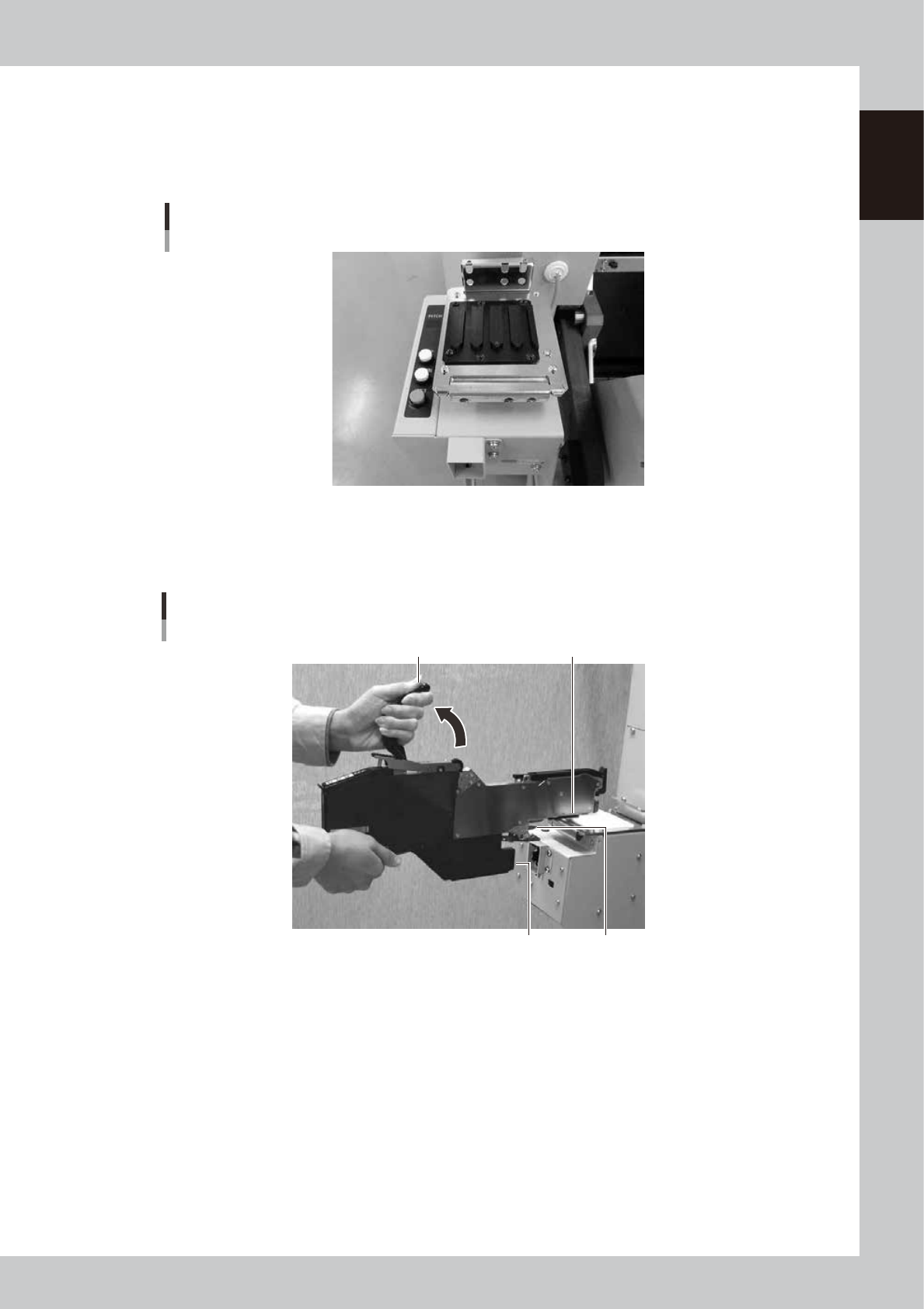

3.1.2 Setting to the station

The following describes how to install a feeder to a set-up station on machine or an Offline setup station.

Clean the surface of the feeder plate.

Components or debris caught in the machine may cause damage to the feeder plate or under rail.

Set-up station on machine

63112-F3-00

Set the feeder.

Lift the handle, align the under rail, tail pin and connector on the lower part of the feeder, and insert all

the way.

Setting the feeder

Handle

Connector Tail pin

Under rail

63113-9L-10

Lock the clamping lever assembly.

Lower the handle and lock the clamping lever assembly to a set-up station on machine or an Offline

setup station.

1-14

Handling

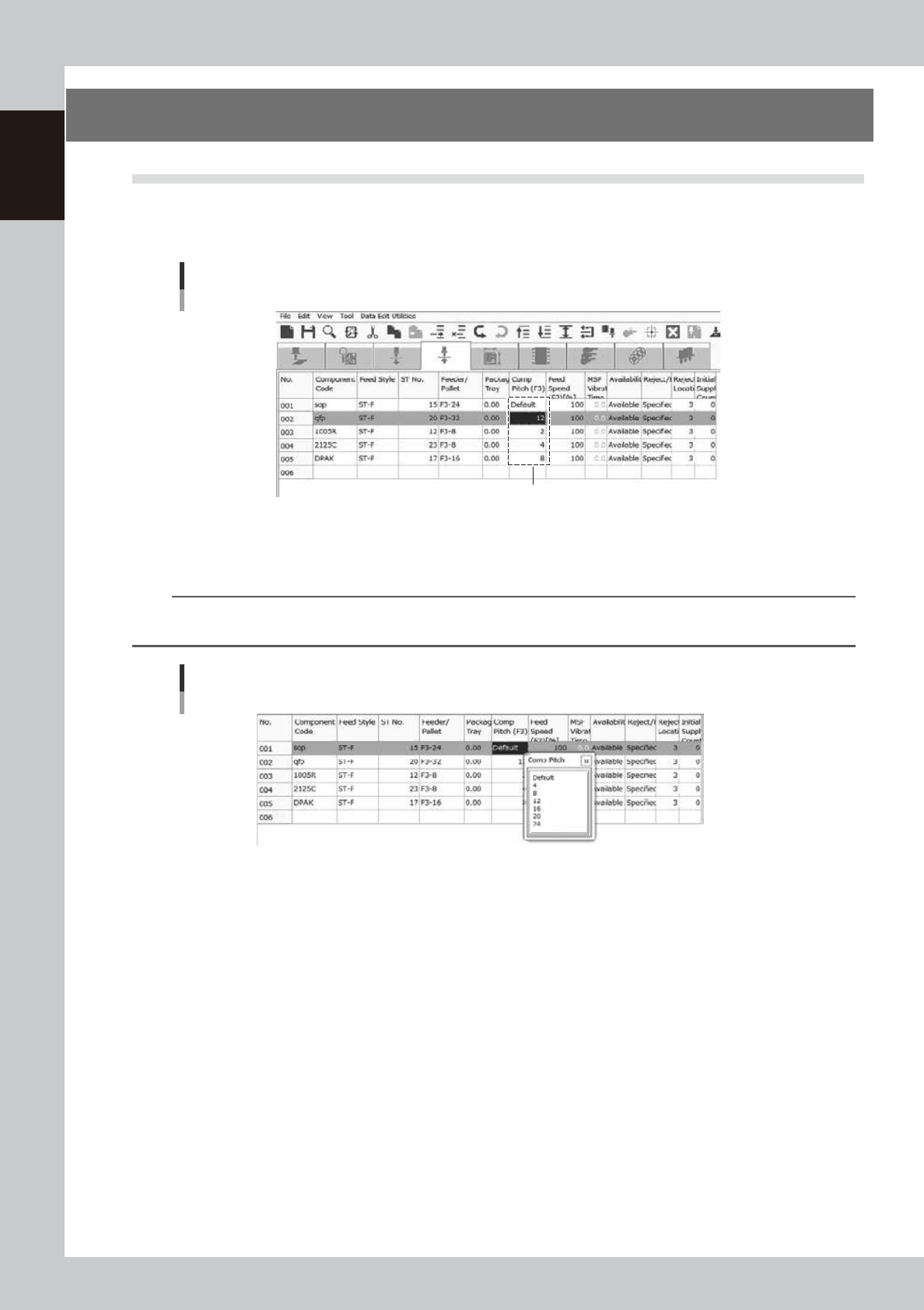

4. Adjusting the tape feed pitch

4.1 Adjusting on the mounter

Open the pickup data screen.

Select a feeder to adjust the tape feed pitch.

Pickup data screen

Select here

64102-F3-00

Set the tape feed pitch.

Right click a mouse and select a feed pitch in the menu.

TIP

The feeder works with the pitch individuallly set by setup station on a machine or an ofﬂine setup station when

"Default" is selected.

Adjusting the tape feed pitch

64103-F3-00

1-15

Handling

4.2 Adjusting on the station

The following describes how to set up tape feed pitch with a set-up station on machine or an Offline setup

station, LED indications of stations and error indications.

Set the feeder.

Refer to ”3.1.2 Setting to a station” for setup of the feeder.

Check the tape feed pitch of the feeder.

Check the pitch indicated on the display.

Checking the tape feed pitch

Display

63114-9L-00

Set the tape feed pitch.

Press the ”UP” or ”DOWN” button to adjust the feed pitch appropriate for the installed components and

then press the ”Set” button to enter the value.

Adjusting the tape feed pitch

“SET”“UP” “DOWN”

63115-9L-00
