Page 3-12
Production Settings
444C-E-OMA03-A01-03
3-2-8 Vacuum OFF
When an interlock error occurs during automatic operation, the machine stops the operation
automatically. At this time, the vacuum is not cut off so as not to drop the chips.
When the operation is resumed, the chips are ejected before operation and production starts.

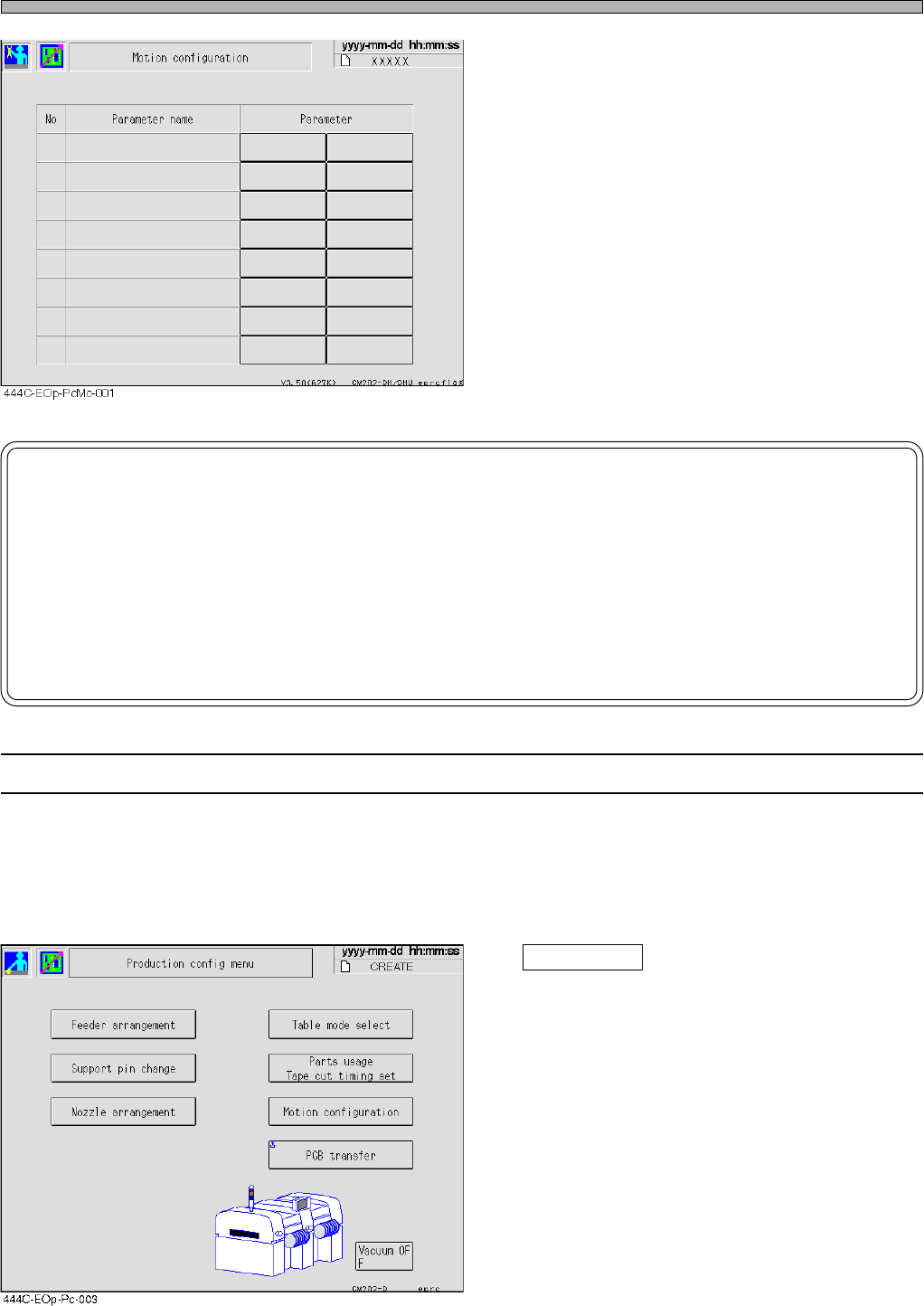

When wishing to cut off the vacuum, press the vacuum OFF button on the production setup
menu screen.
Vacuum OFF
Cuts off the vacuum.
∗ Note that the chips will be dropped if the
vacuum OFF button is pressed while they are
picked up.
NOTICE
By default, OFF is selected.
This data will not be changed unless a user changes this setting.
When mounting the board whose reverse side has been mounted, be sure to set
“Both side Mount” to “Use”.
If it is set to “Unuse”, the chips on the reverse side may collide with the support
pins.
Page 3-13
FUNCTIONS
3
444C-E-OMA03-A01-03
3-3 Production Information
The running states of production board, pick-up, chip feeding unit, etc. are displayed.
1. Press
Performance
info
on the main menu.
• The running information screen is displayed.
∗ Pressing an information switch displays each
information screen.
3-3-1 Run Information
The count of produced boards and blocks, each running time, etc. are displayed for each stage.
• Without reset, data will be added on irrespective of switchover of board types.
PCB’s to process
The number of the boards passed through the
specified stage
[The number of mounted boards + The number
of boards just passed through]
Blocks to process
The number of blocks produced (mounted)
actually.
Operating rate
Rate of the time when the machine is actually
working for mounting during the production
mode
[Real run time / Total run time]
Machine run ratio
Running rate of the specified stage alone
adding Wait for proc time to Real run time
[(Real run time + Wait for proc time) / Total run
time]
Real run time
The time found by subtracting the mounting
stop time due to errors, wait for the previous
and next processes and so on from the time
during the production mode
[Total run time - Total down time]
Wait for pre proc
The time waiting for the previous process to be
prepared
Wait for post proc
The time waiting for the next process to be
prepared
Total run time
The time during the production mode
Page 3-14
444C-E-OMA03-A01-03
Production Information
3-3-2 Stop Information
The stop information is displayed for each factor that made machine stop during production. You
can also see the in-depth stop cases until now.
• Without reset, data will be added on irrespective of switchover of board types.
Stop history
Displays the stop histories (the screen as
shown below) of the selected stage.
Stop history
The latest 20 stop histories occurred during an automatic operation are displayed.
↑ ↓
These are used to select stop information.
Error scrn
Displays the error screen displayed when the
machine was stopped.
Axis informati
on
Displays the axis information when the ma-
chine was stopped.
( 3-4-8 Axis Information)
Reset
Resets the stop history.
When the message appears, press Yes .
